Knock Sensor: Testing and Inspection

INSPECTION




1. INSPECT KNOCK SENSOR

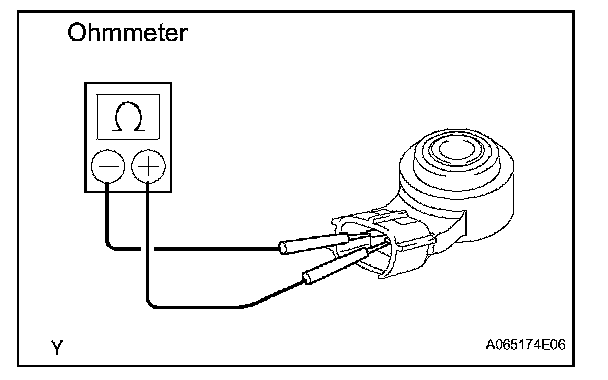

a. Measure the resistance between the terminals.

Standard resistance:120 to 280 kohms at 20 °C (68 °F)

If the result is not as specified, replace the sensor.
