Millimeter Wave Radar Sensor: Installation

  1. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    1. Install the millimeter wave radar sensor with the 3 bolts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    2. Connect the connector.
  2. INSTALL FRONT BUMPER ASSEMBLY
  3. INSTALL COOL AIR INTAKE DUCT SEAL
  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  5. ADJUST MILLIMETER WAVE RADAR SENSOR (See  ADJUSTMENT   )
  6. ADJUST FOG LIGHT AIM (See  ADJUSTMENT  )
  7. PERFORM INITIALIZATION
    NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal (See INITIALIZATION ).

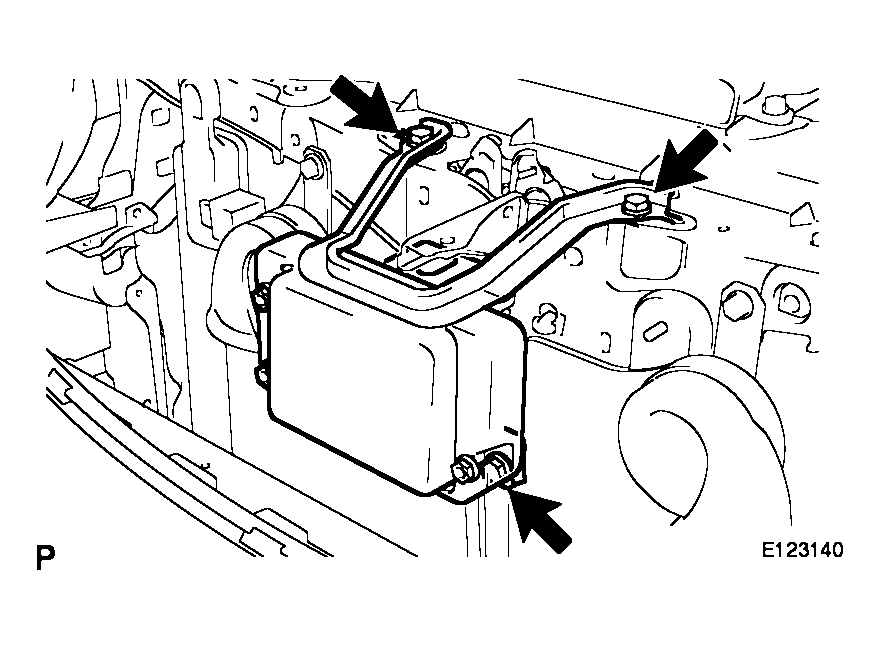

    Fig 1: Identifying Millimeter Wave Radar Sensor With 3 Bolts
    G04049313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
