AVC-LAN Circuit: Description

Each unit of the audio system connected to the AVC-LAN (communication bus) transfers the signal of each switch by communication.

When a short to +B or short to ground occurs in this AVC-LAN, the audio system will not function normally as the communication is discontinued.

1. INSPECT RADIO RECEIVER
   1. Disconnect the radio receiver connectors.
   2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION CHART



      Tester connection	Condition	Specified condition
      ATX+ - ATX-	Always	60 to 80Ω
      TXM+ - TXM-	Always	60 to 80Ω
      TX+ - TX-	Always	60 to 80Ω

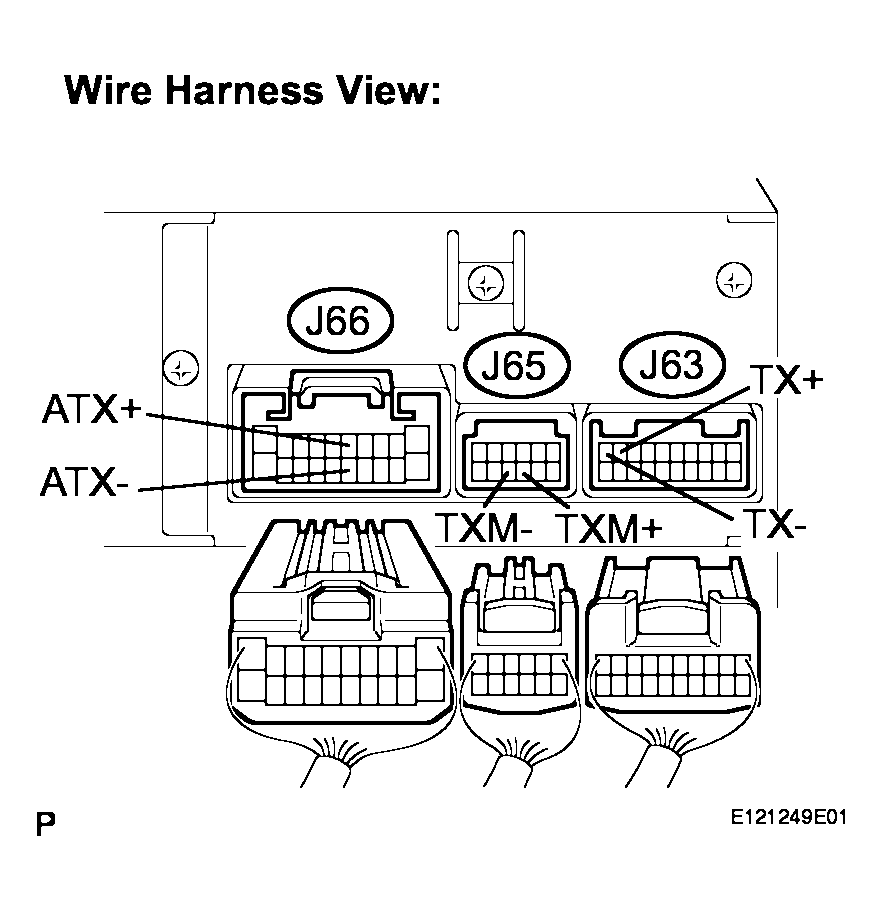

   Fig 1: Identifying Radio Receiver Connectors And Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPLACE RADIO RECEIVER

   OK: Go to next step.

2. CHECK HARNESS AND CONNECTOR

   HINT:

   For details of the connectors, refer to the "TERMINALS OF ECU " .

   1. Referring to the AVC-LAN wiring diagram below, check all AVC-LAN circuits.
      1. Disconnect all connectors in all AVC-LAN circuits.
      2. Check for an open or short in all AVC-LAN circuits.

         OK: There is no open or short circuit.

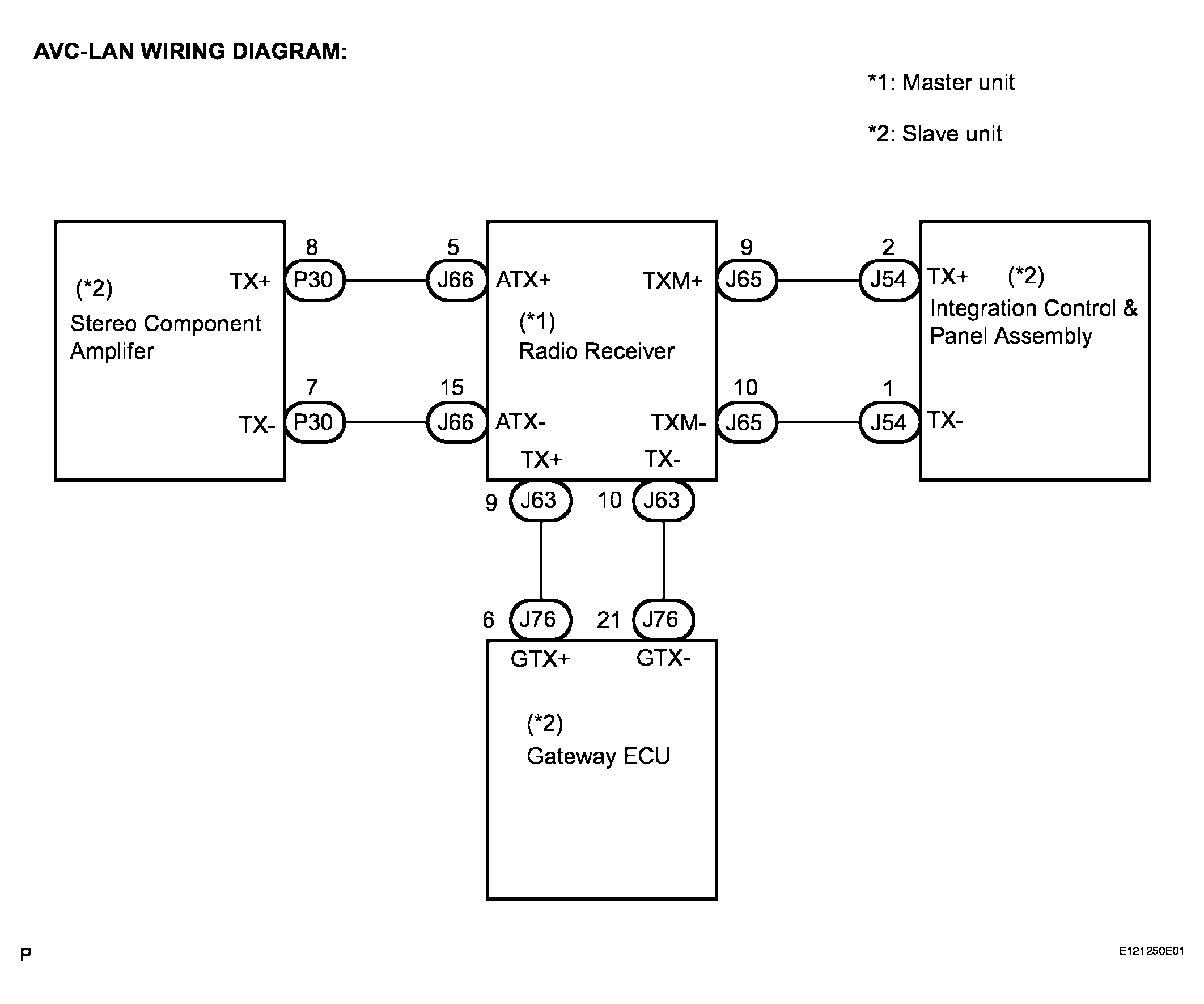

   Fig 2: AVC-LAN - Wiring Diagram

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
