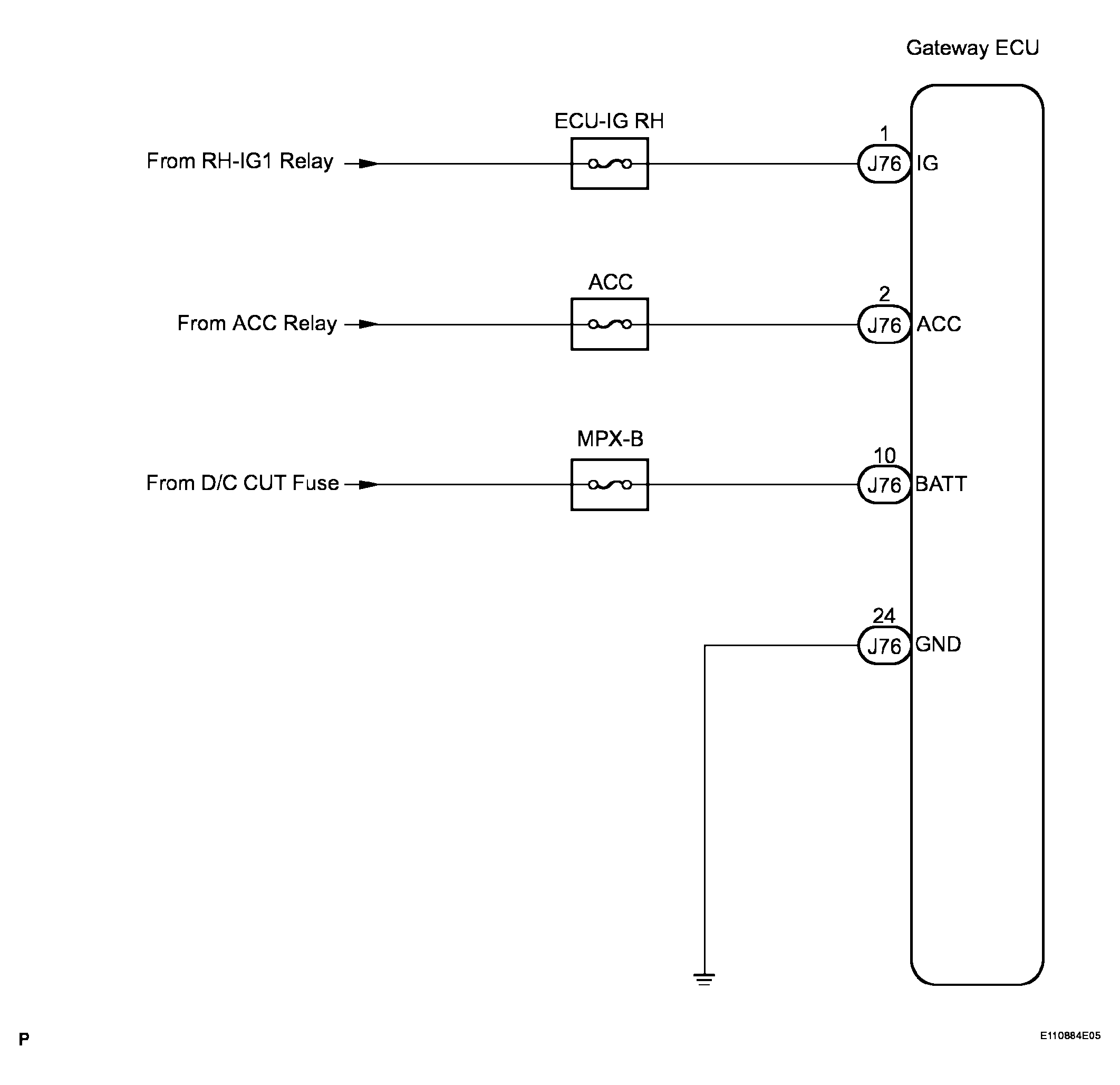

Gateway ECU Power Source Circuit: Wiring Diagram

1. Disconnect the gateway ECU connector J76.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION CHART



   Tester connection	Condition	Specified condition
   GND - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   TESTER CONNECTION AND SPECIFIED CONDITION CHART



   Tester connection	Condition	Specified condition
   BATT - GND	Always	10 to 14 V
   ACC - GND	Engine switch on (ACC)	10 to 14 V
   IG - GND	Engine switch on (IG)	10 to 14 V

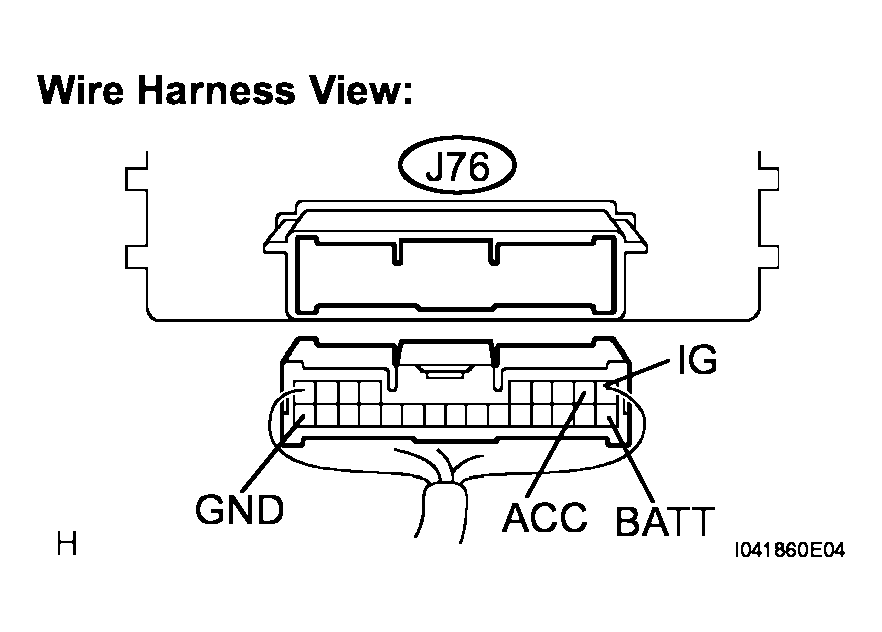

Fig 2: Identifying Gateway ECU Connector J76

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
