Vehicle Position Mark is not Updated

1. Check that the map disc is not deformed or cracked.

   OK: No deformations or cracks on map disc.

   Fig 1: Ensure Map Disc Is Not Cracked Or Deformed

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE MAP DISC

OK: Go to next step.

1. Check if a touch scroll can be performed on the map display.

   OK: Touch scroll can be performed.

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

OK: Go to next step.

1. Enter the "Navigation Check" mode (Vehicle Sensors) (See BLUETOOTH TEL CHECK MODE  ).
2. While driving the vehicle, compare the "Speed" indicator to the reading on the speedometer. Check if these readings are almost equal.

   OK: The readings are almost equal.

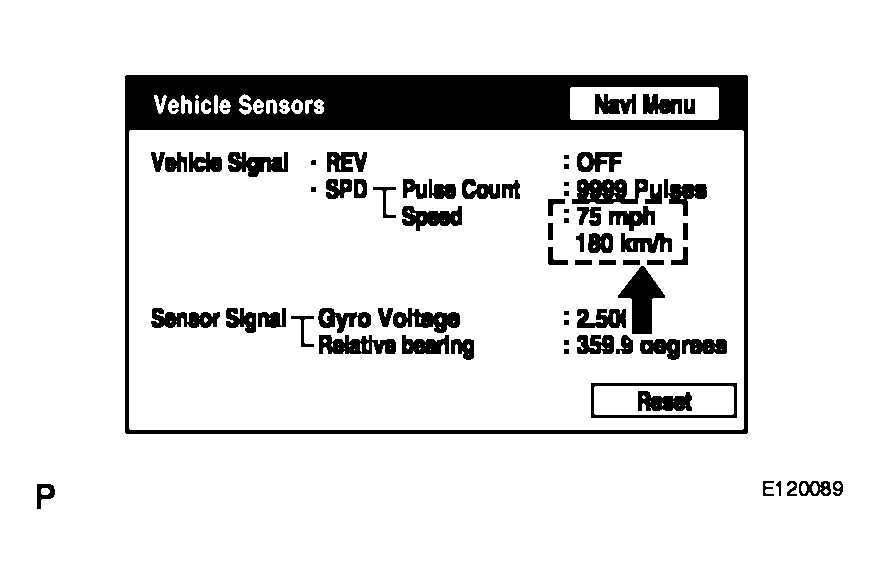

   Fig 2: Checking Vehicle Sensor (Navigation Check Mode)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: GO TO SPEED SIGNAL DOES NOT CHANGE IN THE NAVIGATION CHECK MODE IN PROBLEM SYMPTOMS TABLE

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
