Power Seat Switch: Components

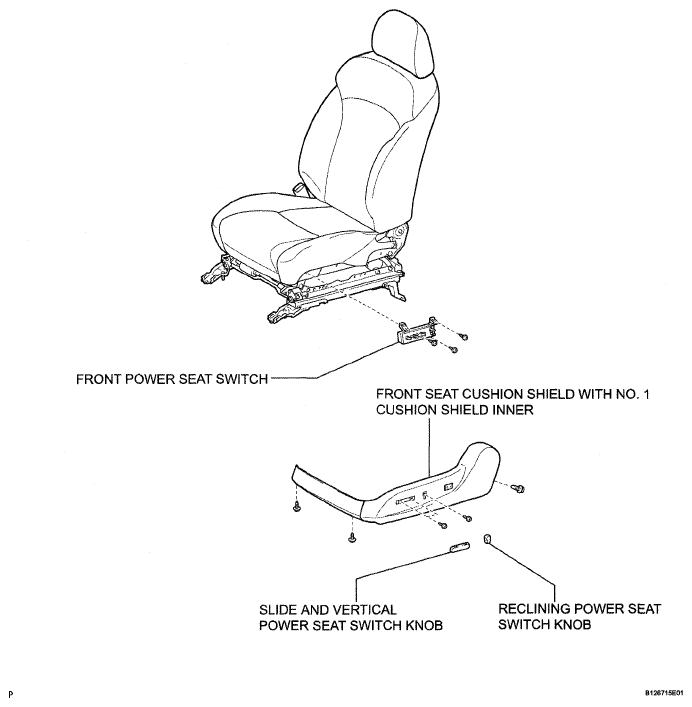

Fig 1: Identifying Power Seat Switch Components
G05321092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
