Charging (4GR-FSE): Generator: Components

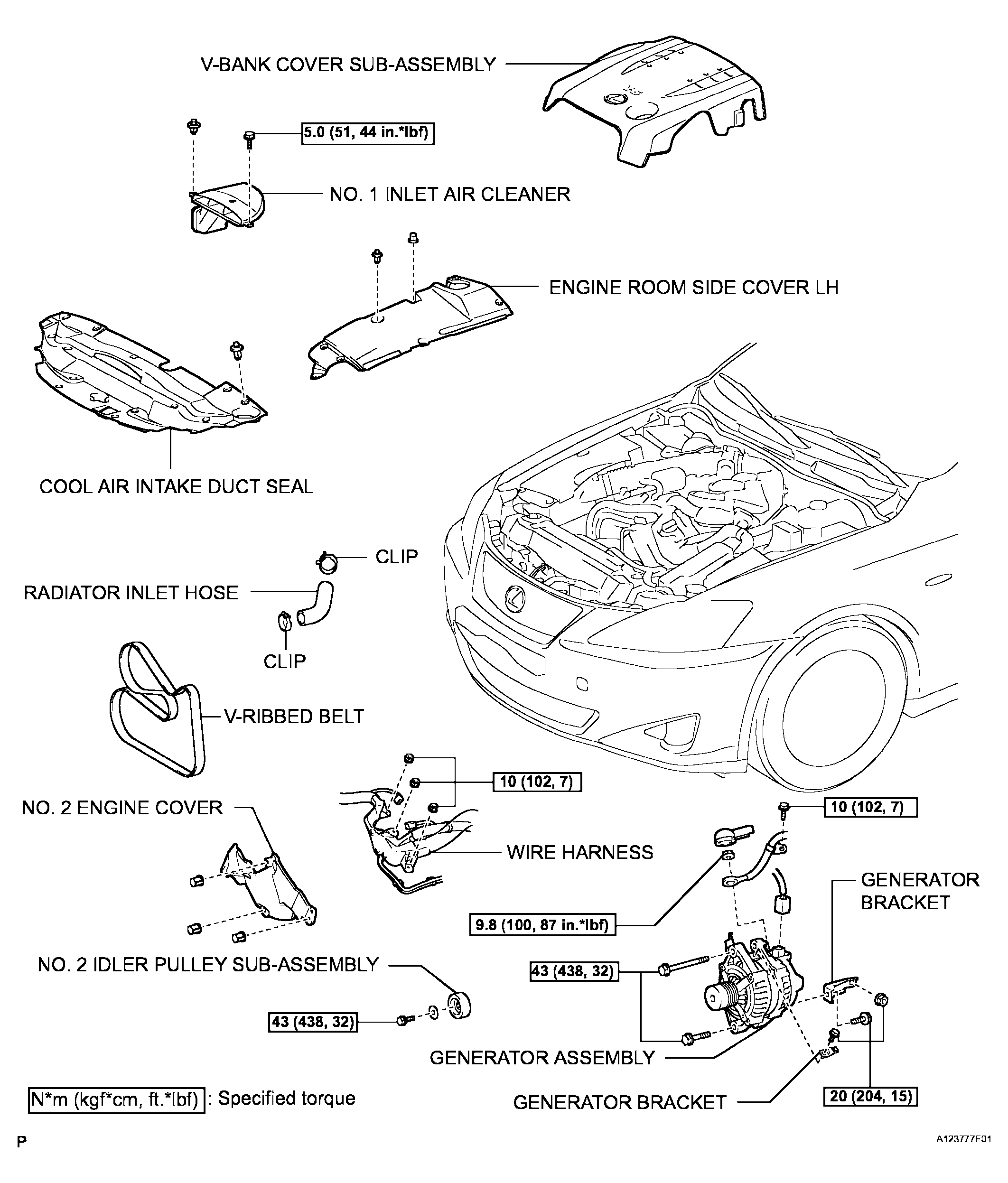

Fig 1: Exploded View Of Generator Components With Torque Specifications (1 Of 2)
G04045046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

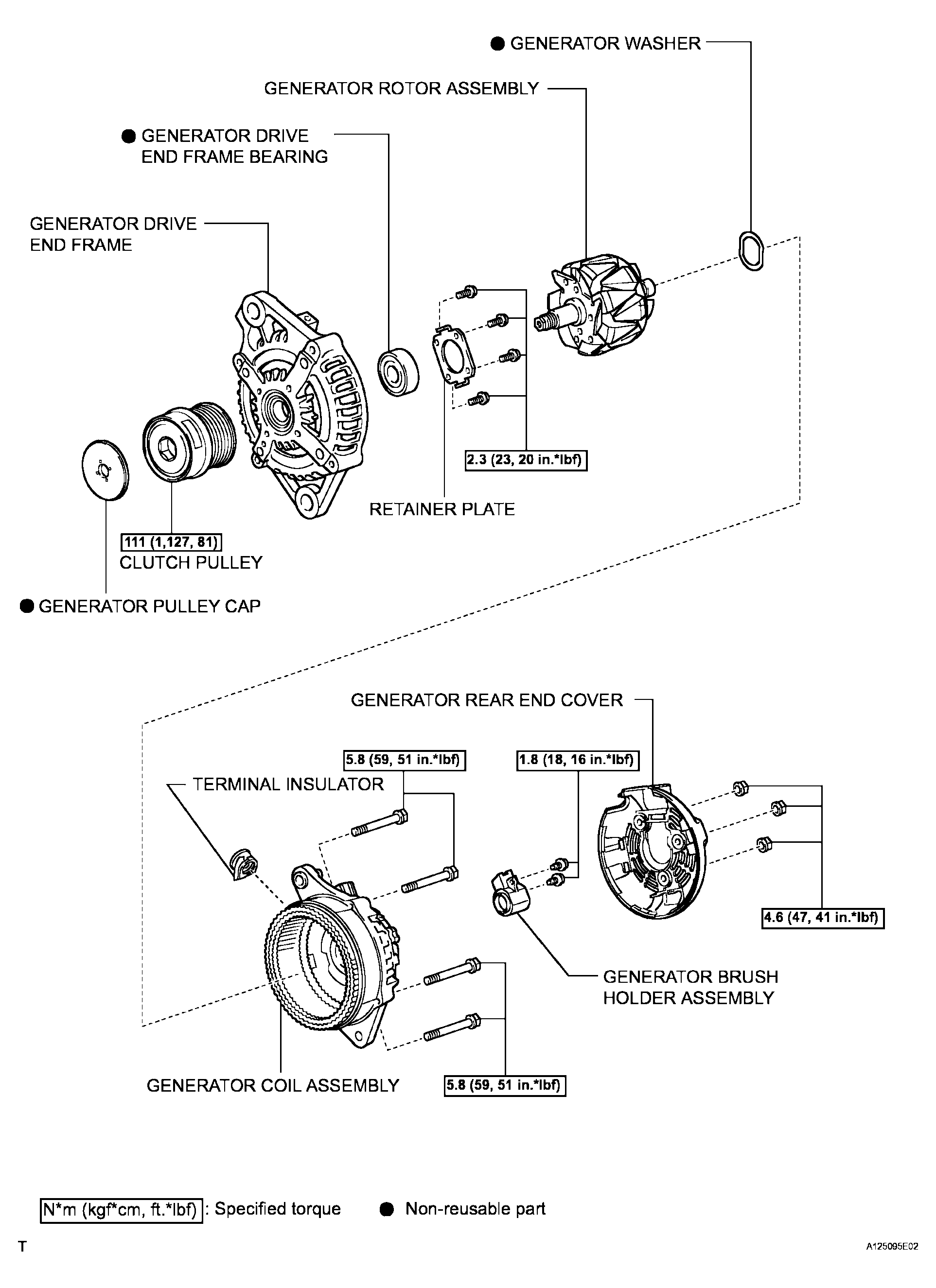

Fig 2: Exploded View Of Generator Components With Torque Specifications (2 Of 2)
G04045047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
