Cold Start Injector: Components

Fig 1: Identifying Cold Start Injector Components (1 Of 2)
G04044558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

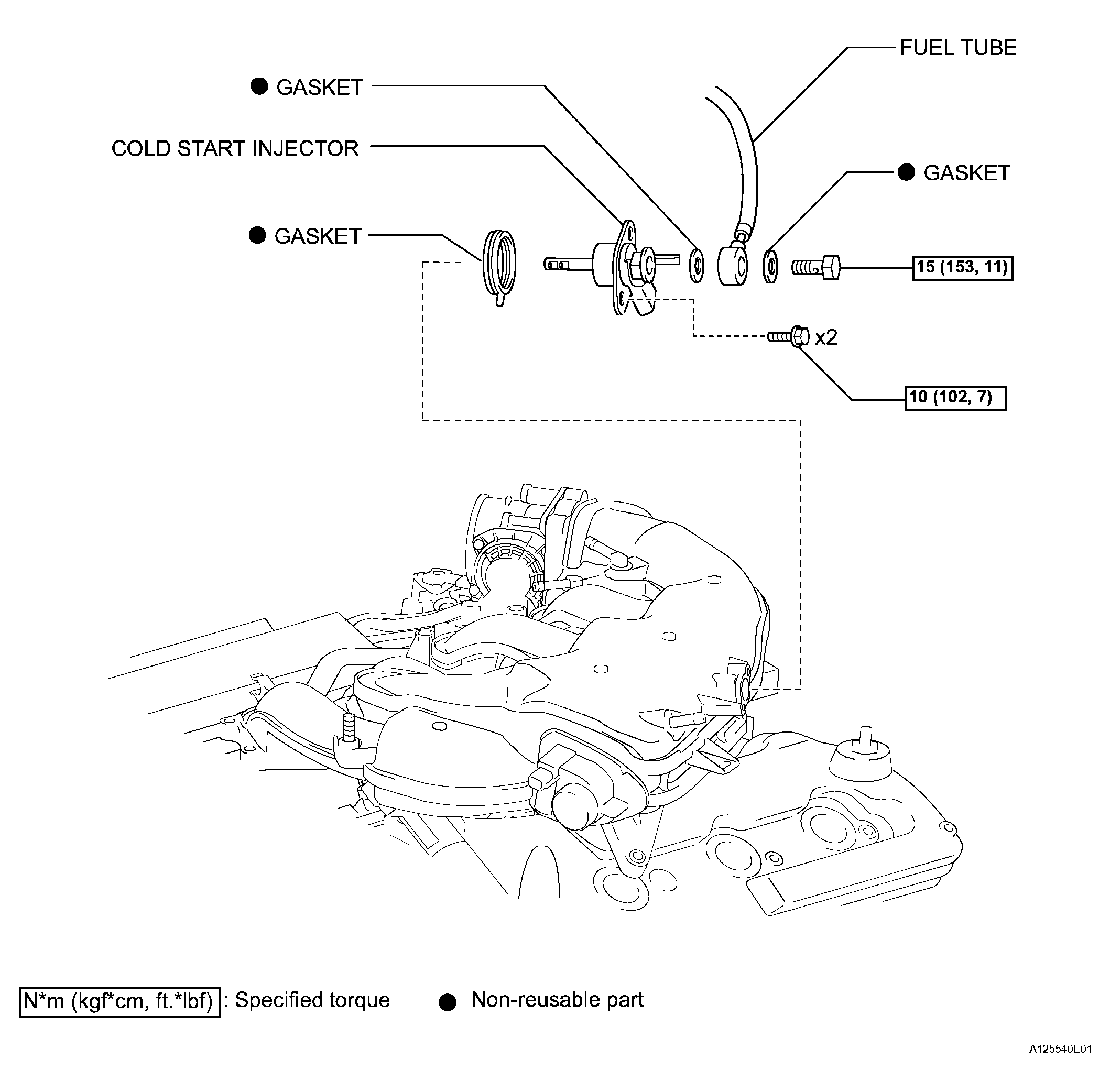

Fig 2: Cold Start Injector Replacement Components (2 Of 2) With Torque Specifications
G04044559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
