Cold Start Injector: Removal

DISCHARGE FUEL SYSTEM PRESSURE
HINT:

See PRECAUTION .
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE V-BANK COVER SUB-ASSEMBLY (See Step 4 in REMOVAL )
REMOVE COLD START INJECTOR
1. Disconnect the cold start injector connector.
2. Remove the bolt and 2 gaskets, and disconnect the fuel tube from the cold start injector.

  Fig 1: Disconnecting Fuel Tube From Cold Start Injector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not fold or bend the hose.
3. Remove the 2 bolts, gasket and cold start injector from the surge tank.

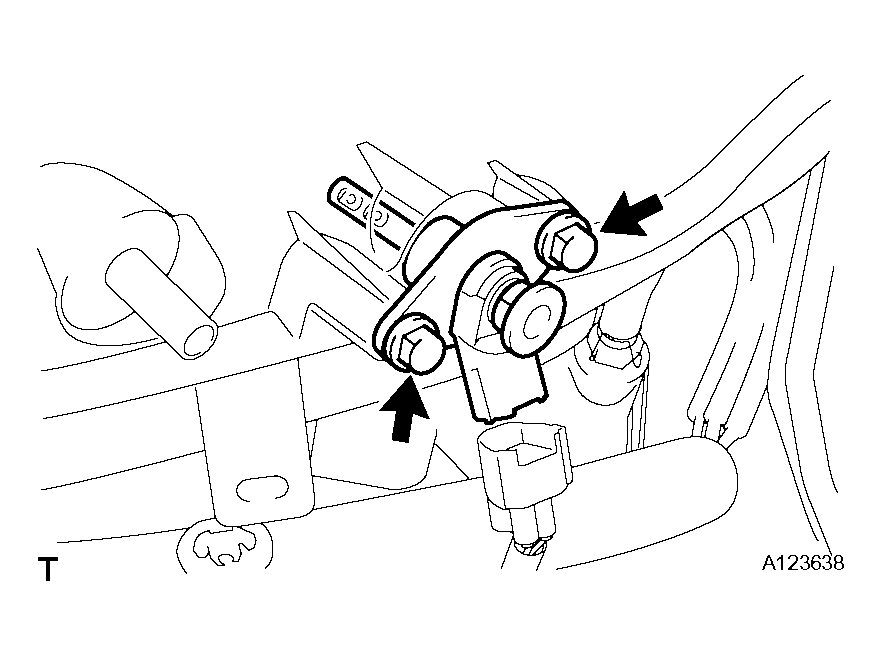

Fig 2: Removing Cold Start Injector From Surge Tank
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
