Fuel Injector, Intake Manifold: Components

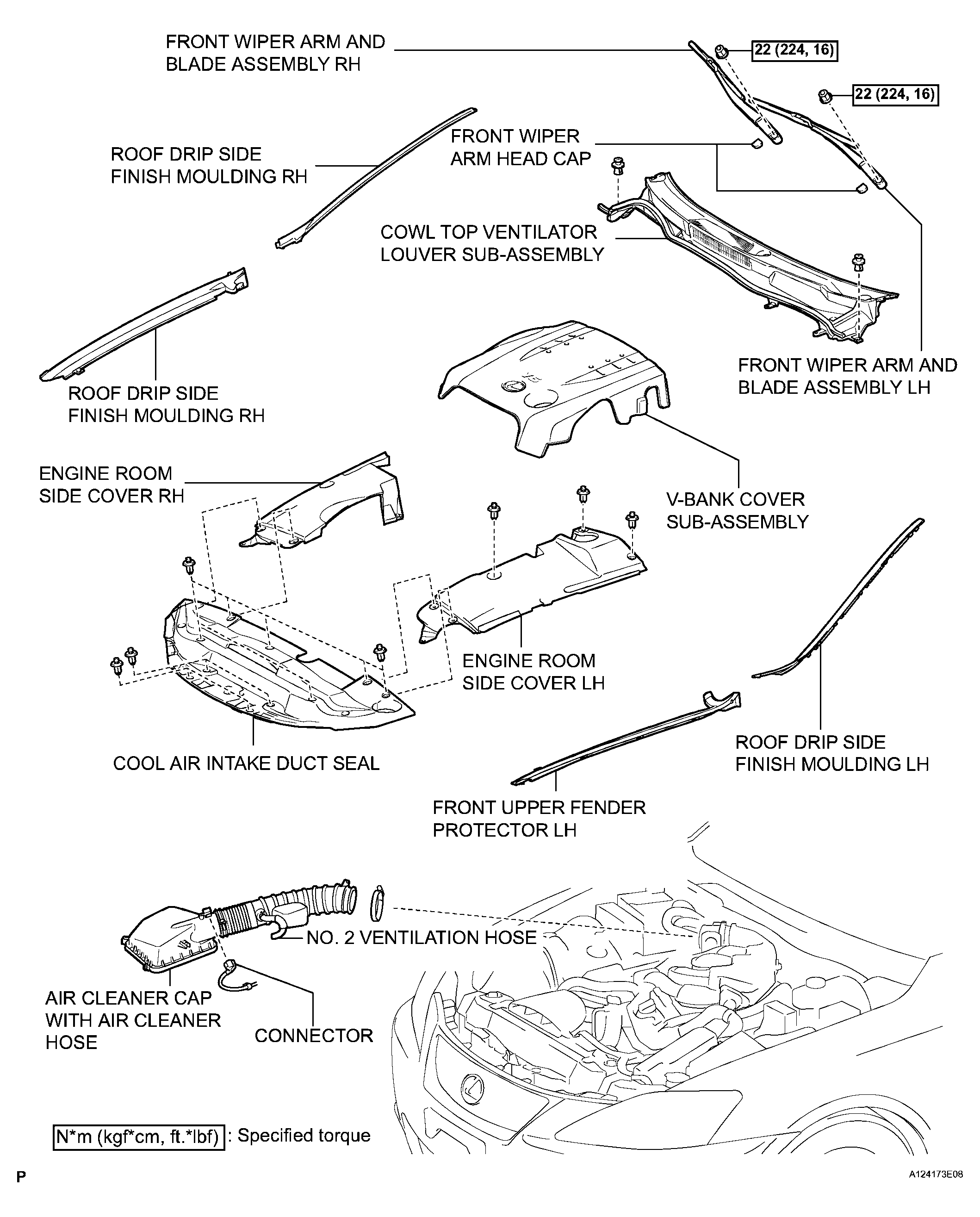

Fig 1: Fuel Injector Replacement Components (1 Of 4) With Torque Specifications
G04044501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

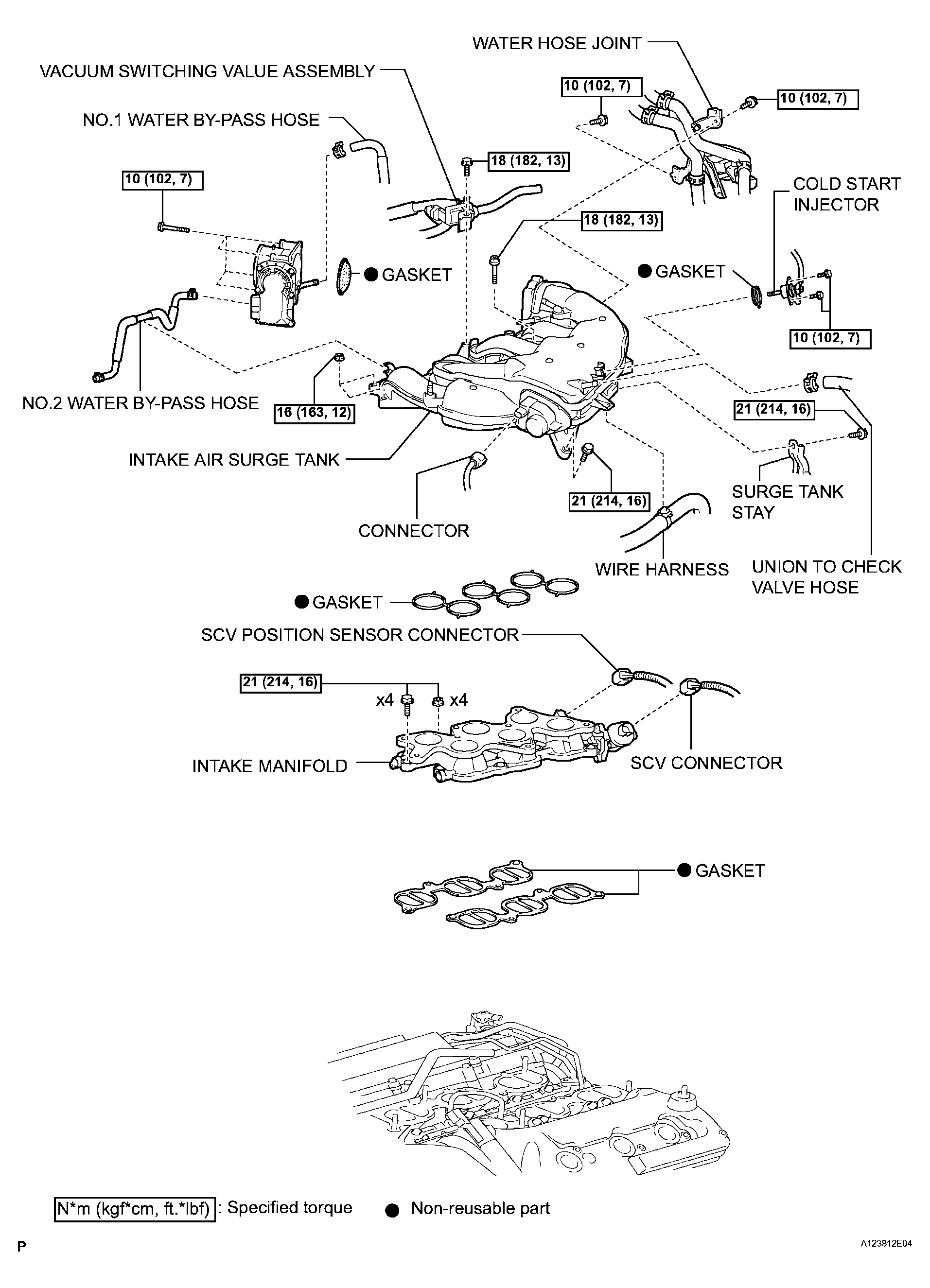

Fig 2: Fuel Injector Replacement Components (2 Of 4) With Torque Specifications
G04044502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

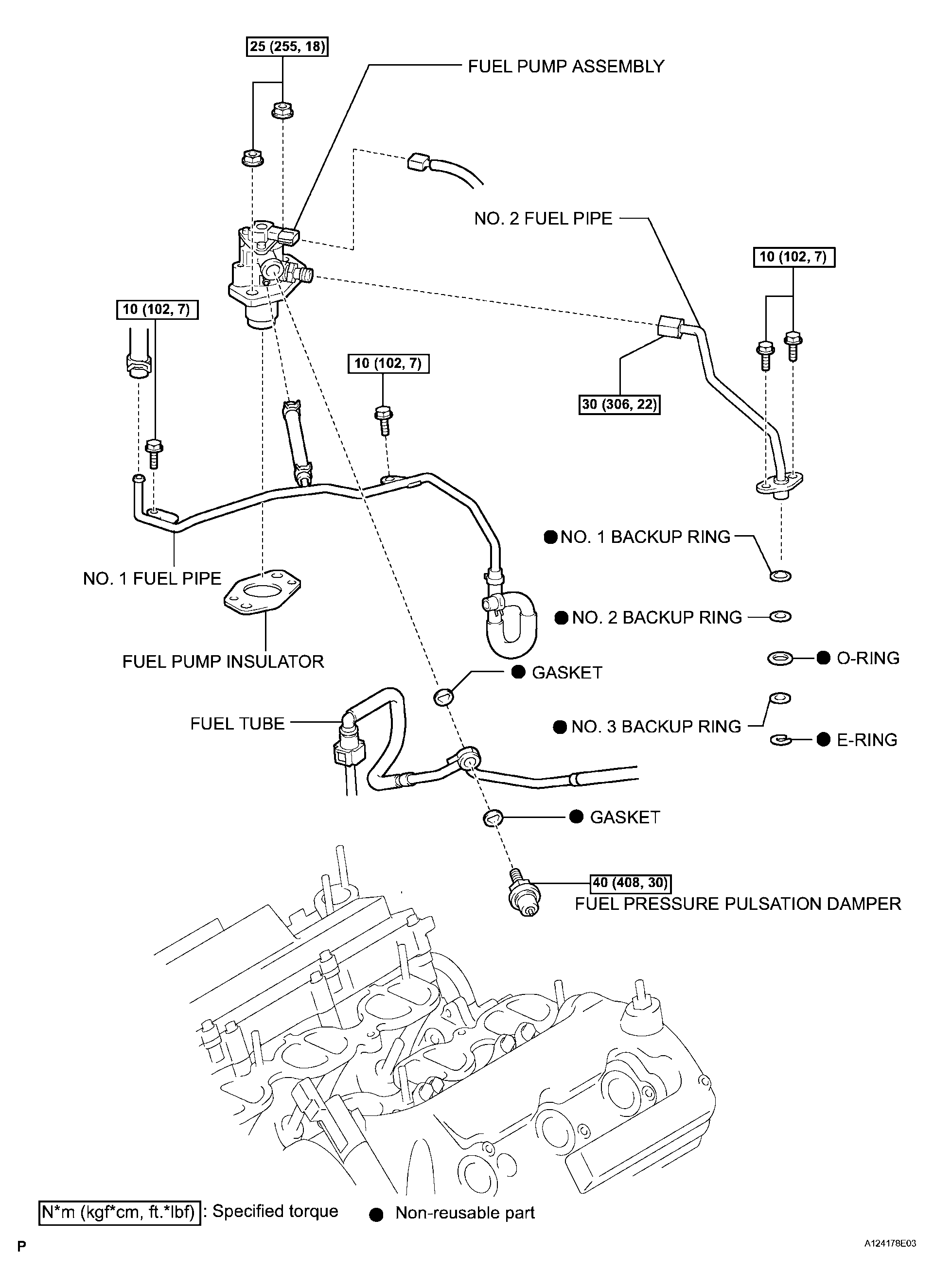

Fig 3: Fuel Injector Replacement Components (3 Of 4) With Torque Specifications
G04044503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

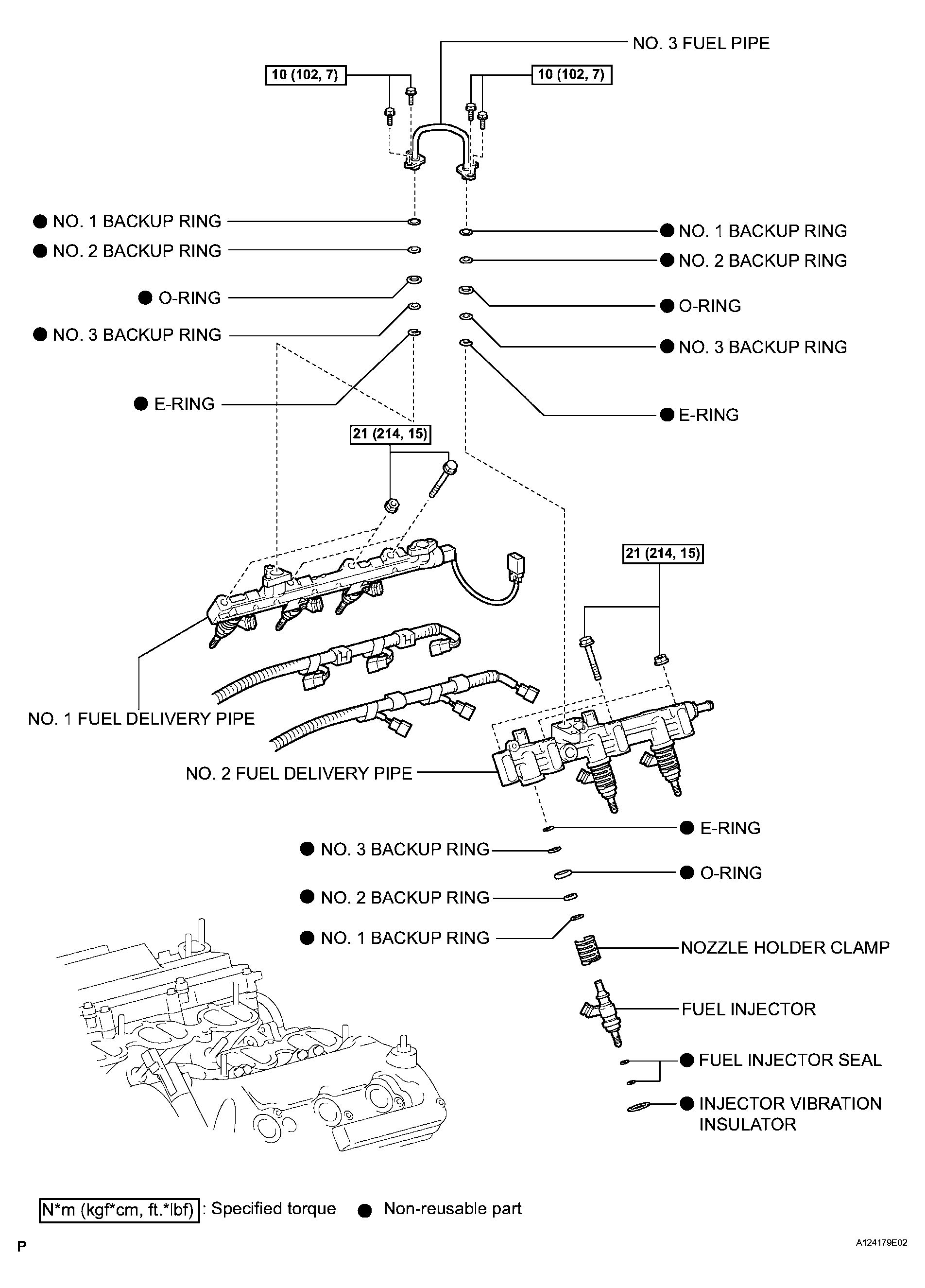

Fig 4: Fuel Injector Replacement Components (4 Of 4) With Torque Specifications
G04044504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
