Fuel Pressure Sensor: Components

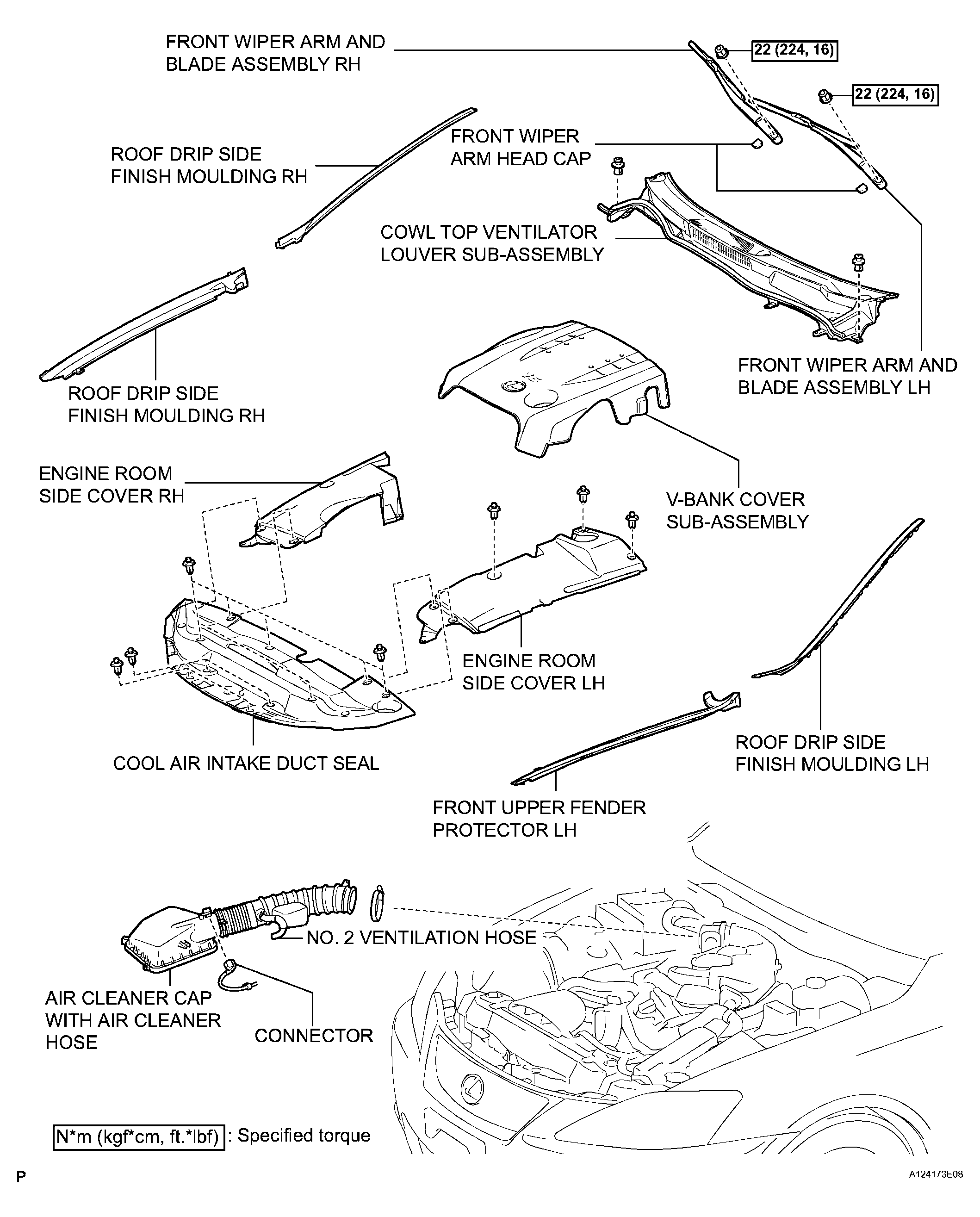

Fig 1: Fuel Pressure Sensor Replacement Components (1 Of 3) With Torque Specifications
G04044570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

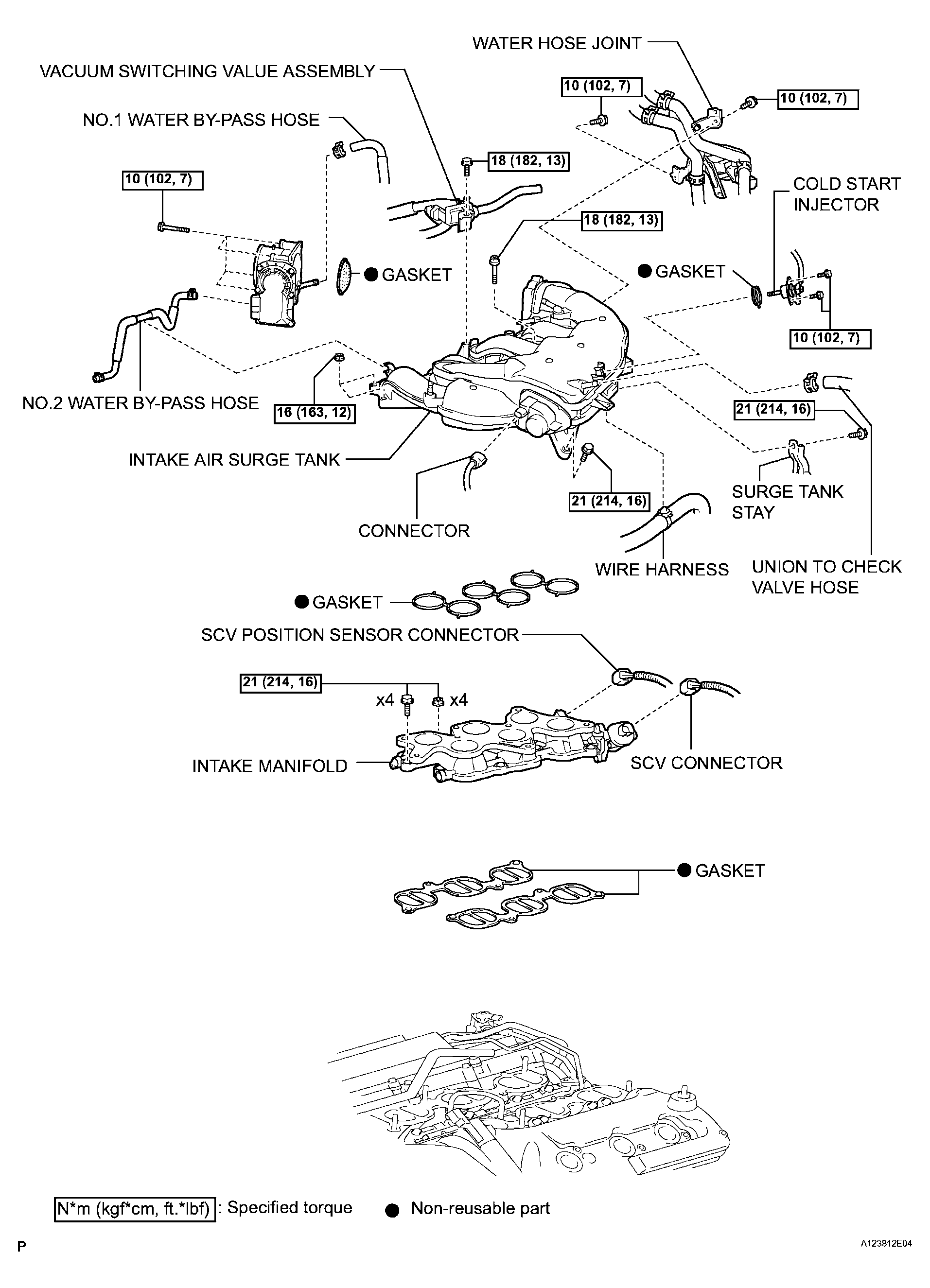

Fig 2: Fuel Pressure Sensor Replacement Components (2 Of 3) With Torque Specifications
G04044571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

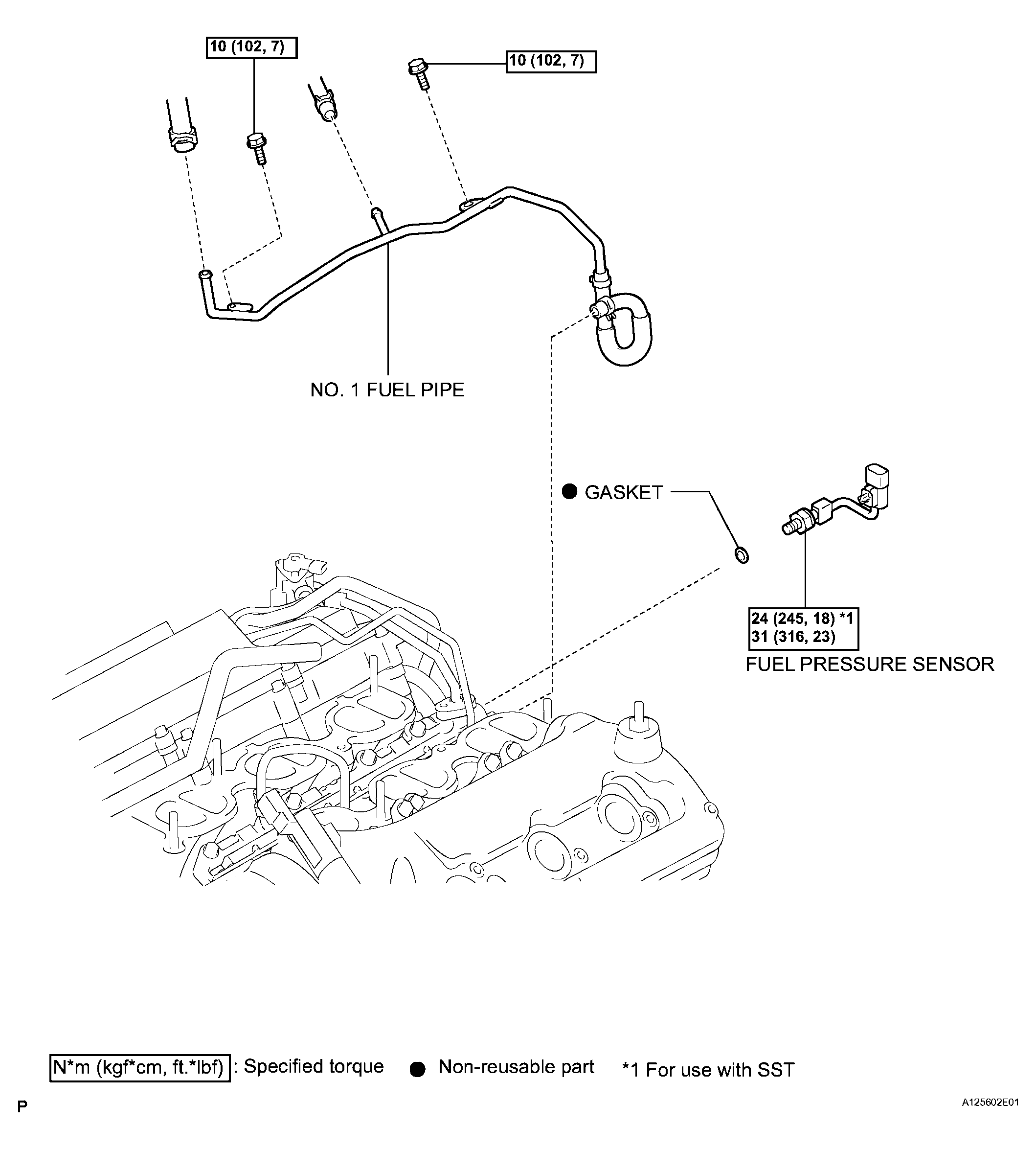

Fig 3: Fuel Pressure Sensor Replacement Components (3 Of 3) With Torque Specifications
G04044572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
