Fuel Pressure Sensor: Installation

  1. INSTALL FUEL PRESSURE SENSOR
    1. Install a new gasket to the fuel pressure sensor.
    2. Using SST, install the fuel pressure sensor to the No. 1 delivery pipe.

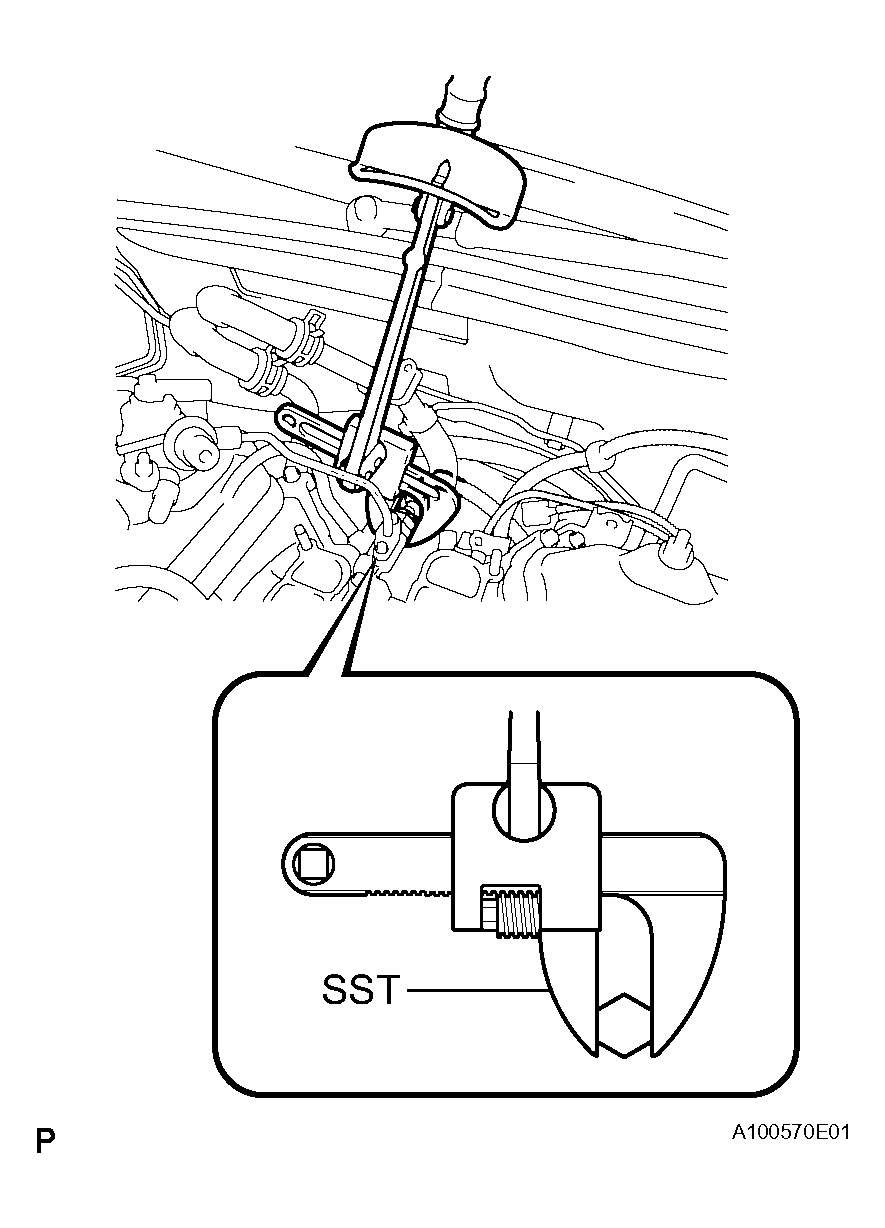

      Fig 1: Installing Fuel Pressure Sensor
      G04044575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09922-10010

      Torque: For Use With SST

      24 N*m (240 kgf*cm, 18 ft.*lbf)

      For Use Without SST

      31 N*m (316 kgf*cm, 23 ft.*lbf)

      HINT:

      The torque for use with SST is the torque when SST is used at the position shown in Fig 2 .

    3. Connect the connector with the clamp.

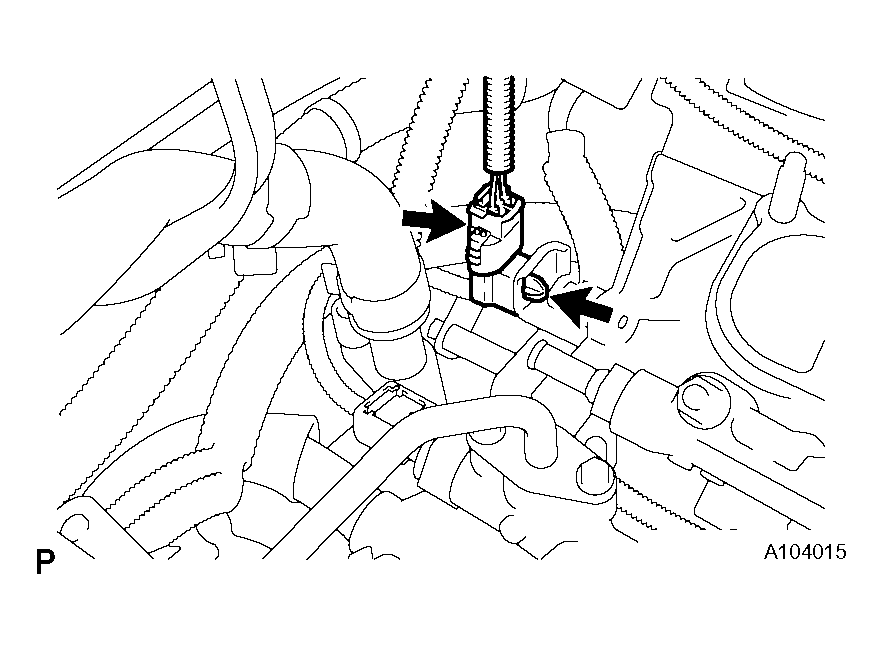

      Fig 2: Connecting Connector With Clamp
      G04044576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 FUEL PIPE (See Step 9 in  INSTALLATION   )
  3. CONNECT WATER HOSE JOINT (See Step 11 in  INSTALLATION   )
  4. INSTALL INTAKE MANIFOLD (See Step 12 in  INSTALLATION   )
  5. INSTALL INTAKE AIR SURGE TANK (See Step 13 in  INSTALLATION   )
  6. INSTALL COLD START INJECTOR (See Step 14 in  INSTALLATION   )
  7. INSTALL THROTTLE WITH MOTOR BODY ASSEMBLY (See  INSTALLATION  )
  8. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE (See Step 2 in  INSTALLATION  )
  9. CONNECT NO. 2 VENTILATION HOSE (See Step 3 in  INSTALLATION  )
  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (See Step 93 in  INSTALLATION  )
  11. ADD ENGINE COOLANT (See Step 5 in  ON-VEHICLE INSPECTION  )
  12. CHECK FOR ENGINE COOLANT LEAKAGE (See  ON-VEHICLE INSPECTION  )
  13. CHECK FOR FUEL LEAKAGE (See  ON-VEHICLE INSPECTION   )
  14. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY (See Step 3 in  INSTALLATION  )
  15. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH (See Step 4 in  INSTALLATION  )
  16. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH (See Step 5 in  INSTALLATION  )
  17. INSTALL FRONT WIPER ARM HEAD CAP (See Step 6 in  INSTALLATION  )
  18. INSTALL ROOF DRIP SIDE FINISH MOLDING LH
  19. INSTALL ROOF DRIP SIDE FINISH MOLDING RH
  20. INSTALL FRONT UPPER FENDER PROTECTOR LH (See Step 9 in  INSTALLATION  )
  21. INSTALL FRONT UPPER FENDER PROTECTOR RH

    HINT:

    Installation procedure of the RH side is the same as that of the LH side.

  22. INSTALL V-BANK COVER SUB-ASSEMBLY (See Step 115 in  INSTALLATION  )
  23. INSTALL ENGINE ROOM SIDE COVER LH (See Step 116 in  INSTALLATION  )
  24. INSTALL ENGINE ROOM SIDE COVER RH (See Step 117 in  INSTALLATION  )
  25. INSTALL COOL AIR INTAKE DUCT SEAL (See Step 118 in  INSTALLATION  )
  26. CHECK FUNCTION OF THROTTLE WITH MOTOR BODY ASSEMBLY (See  ON-VEHICLE INSPECTION  )
  27. PERFORM INITIALIZATION
    1. Perform initialization (See INITIALIZATION ).

      HINT:

      Certain systems need to be initialized after reconnecting the cable to the negative (-) battery terminal.
