Injector Driver: Installation

INSTALL INJECTOR DRIVER
1. Install the injector driver with the bolt and 2 nuts.

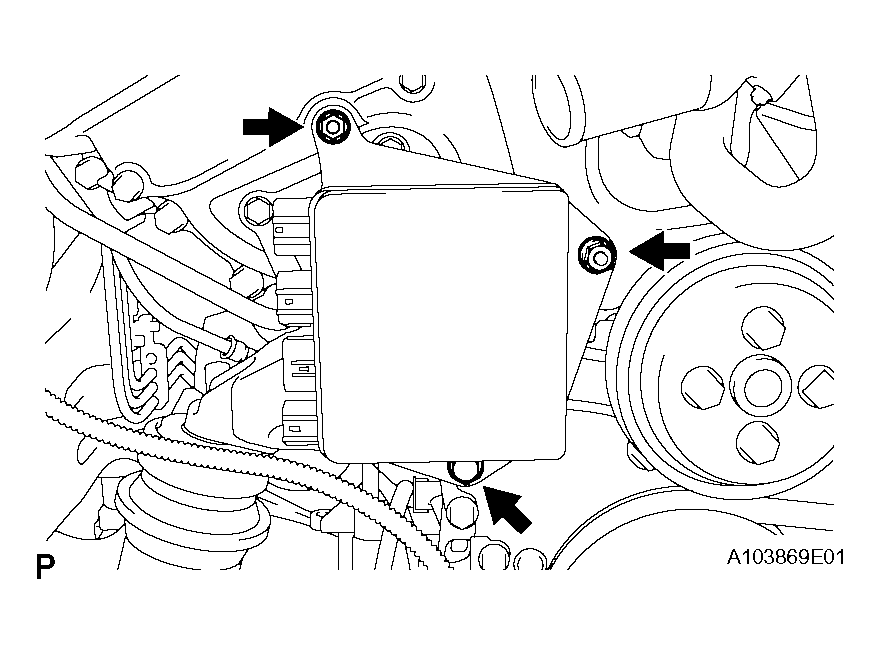

  Fig 1: Installing Injector Driver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
  NOTE:
  - Be careful not to drop or strike the injector driver.
  - The injector driver is grounded at the bolt and nut. To ensure that it is grounded, clean all oil and foreign matter from the installation areas of the injector driver and engine before installing the injector driver.
2. Connect the 4 connectors to the injector driver.

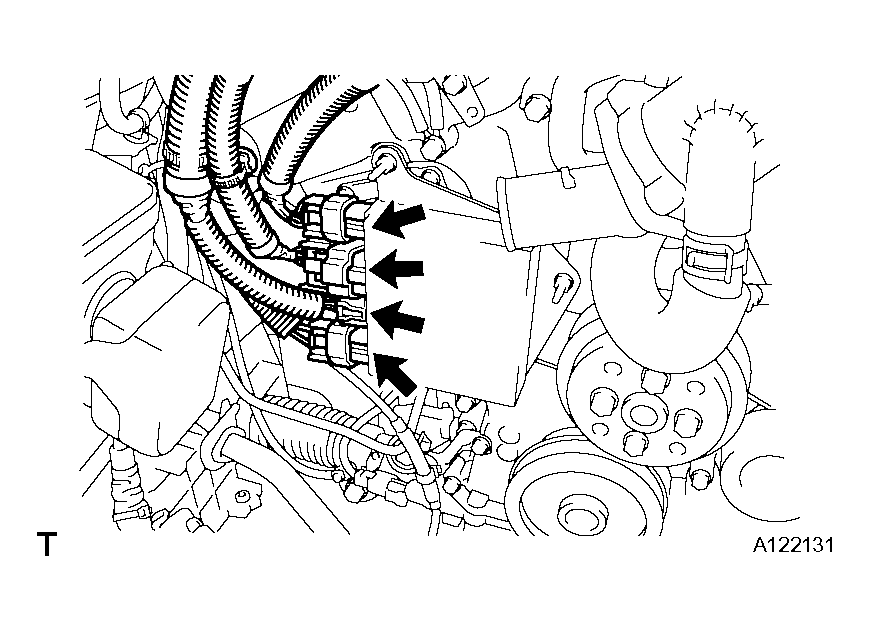

Fig 2: Connecting Connectors To Injector Driver
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ENGINE COVER (See Step 27 in INSTALLATION )
INSTALL NO. 1 INLET AIR CLEANER (See Step 87 in INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (See Step 118 in INSTALLATION )
