Injector Driver: Removal

REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL )
REMOVE NO. 1 INLET AIR CLEANER (See Step 19 in REMOVAL )
REMOVE NO. 1 ENGINE COVER (See Step 83 in REMOVAL )
REMOVE INJECTOR DRIVER
1. Disconnect the 4 connectors from the injector driver.

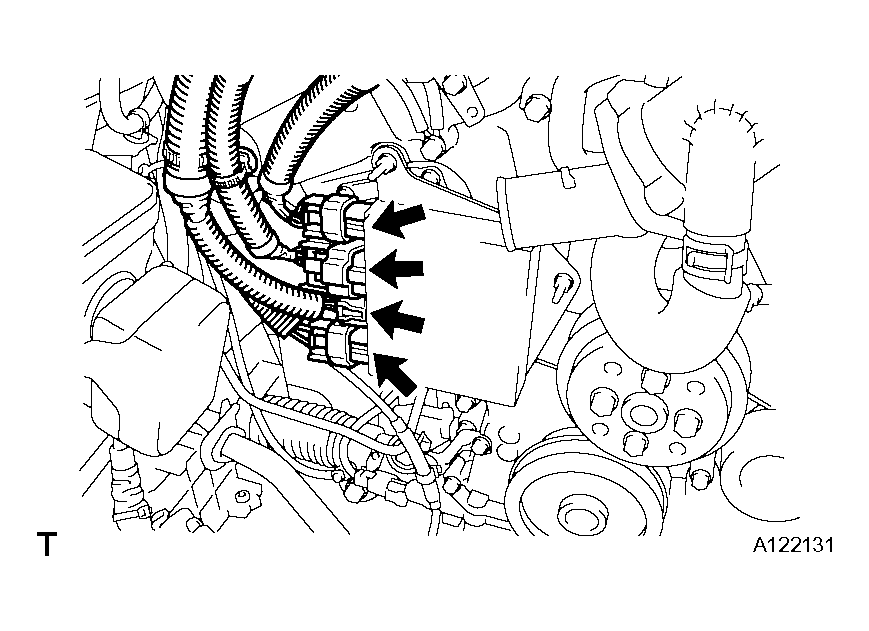

  Fig 1: Disconnecting Connectors From Injector Driver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt, 2 nuts and injector driver.

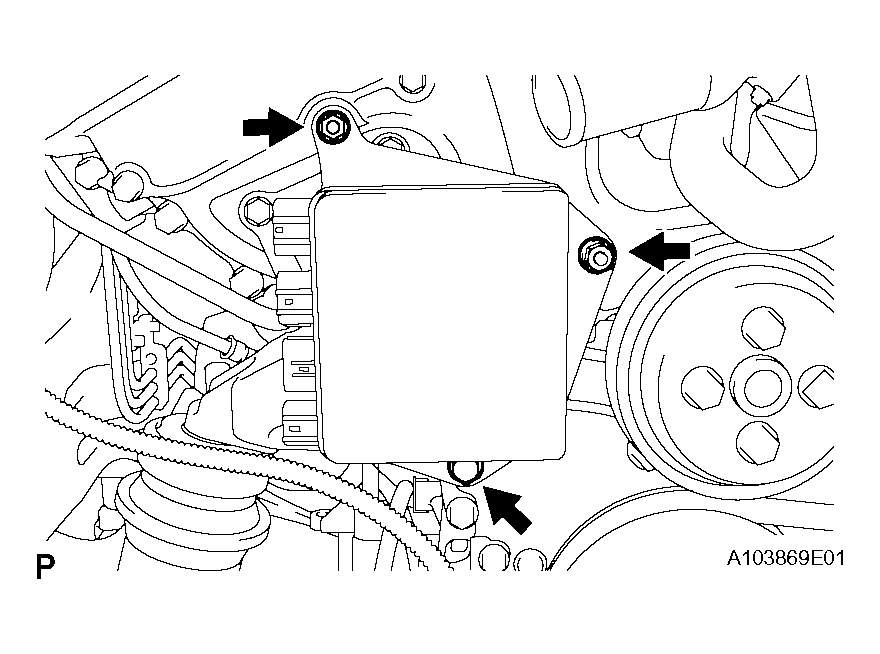

  Fig 2: Removing Injector Driver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Be careful not to drop or strike the injector driver.
