DTC P2009 Intake Manifold Runner Control Circuit Low (Bank 1); DTC P2010 Intake Manifold Runner Control Circuit High (Bank 1): Wiring Diagram

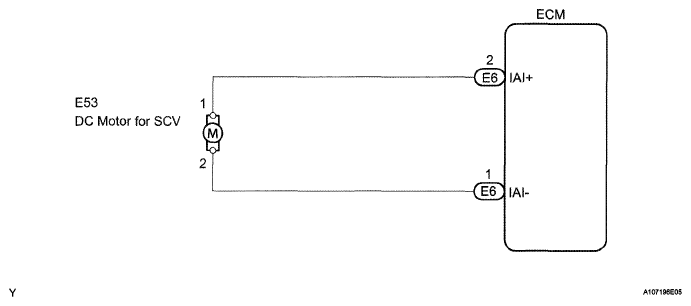

Fig 1: DC Motor For SCV - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
