DTC P2014 Intake Manifold Runner Position Sensor / Switch Circuit (Bank 1); DTC P2016 Intake Manifold Runner Position Sensor / Switch Circuit Low (Bank 1); DTC P2017 Intake Manifold Runner Position Sensor/ Switch Circuit High (Bank 1): Wiring Diagram

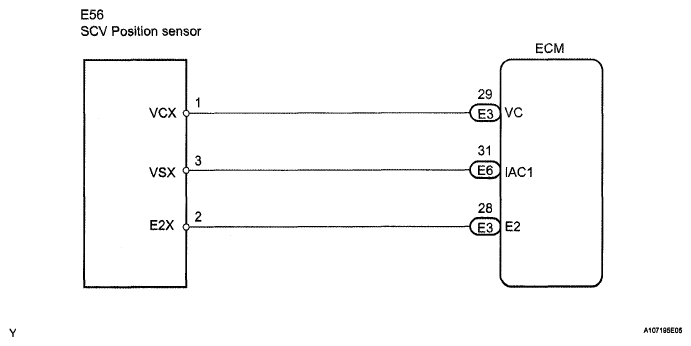

Fig 1: Swirl Control Valve Position Sensor - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
