Cold Start Injector Circuit: Wiring Diagram

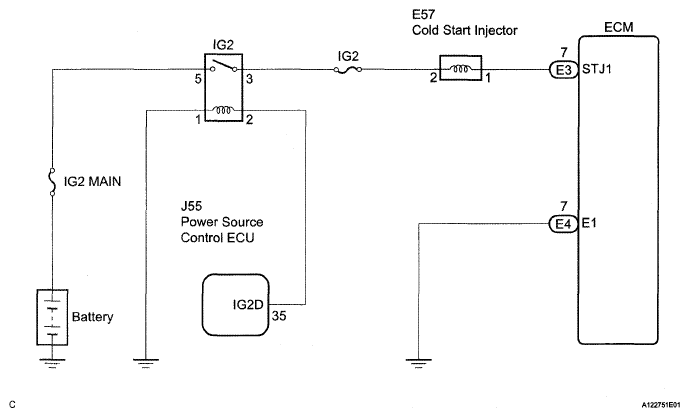

Fig 1: Cold Start Injector - Wiring Diagram
G05316622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
