Inspection Procedure

HINT:

Troubleshoot each problem symptom in accordance with the chart below.

1. CHECK WHETHER MIL TURN OFF
   1. Connect the intelligent tester to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the tester on.
   4. Check whether any DTCs have been stored (See DTC CHECK/CLEAR ). Note them down if necessary.
   5. Clear DTCs (See DTC CHECK/CLEAR ).
   6. Check if the MIL turns off.

      OK:

      MIL turns off.

   OK: REPAIR CIRCUITS INDICATED BY OUTPUT DTCS

   NG: Go to next step

2. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN WIRE HARNESS)
   1. Disconnect the A6 ECM connector.
   2. Turn the engine switch on (IG).
   3. Check the MIL is not illuminated.

      OK:

      MIL is not illuminated.

   4. Reconnect the ECM connector.

   OK: REPLACE ECM

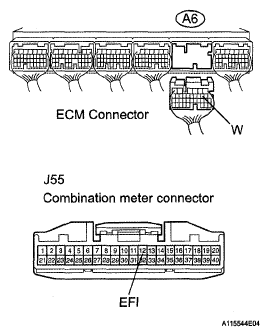

   Fig 1: Identifying A6 ECM Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: Go to next step

3. CHECK HARNESS AND CONNECTOR (COMBINATION METER - ECM)
   1. Disconnect the A6 ECM connector.
   2. Disconnect the J55 combination meter connector.
   3. Measure the resistance according to the value (s) in the table below.

      Standard resistance (Check for open)

      RESISTANCE SPECIFICATION



      Tester Connection	Specified Condition
      W (A6-8) - EFI (J55-12)	Below 1 Ω

      Standard resistance (Check for short)

      RESISTANCE SPECIFICATION



      Tester Connection	Specified Condition
      W (A6-8) or EFI (J55-12) - Body ground	10 kΩ or higher

      Fig 2: Identifying A6 ECM Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: REPAIR OR REPLACE COMBINATION METER ASSEMBLY

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

4. CHECK THAT MIL IS ILLUMINATED
   1. Check if the MIL is illuminated when the engine switch is turns on (IG).

      OK:

      MIL is illuminated.

   OK: END

   NG: Go to next step

5. CHECK HARNESS AND CONNECTOR
   1. Disconnect the A6 ECM connector.
   2. Turn the engine switch on (IG).
   3. Measure the voltage according to the value (s) in the table below.

      Standard voltage

      VOLTAGE SPECIFICATION



      Tester Connection	Specified Condition
      W (A6-8) - Body ground	10 to 14 V

      Fig 3: Identifying A6 ECM Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Reconnect the ECM connector.

   OK: REPLACE ECM

   NG: Go to next step

6. CHECK HARNESS AND CONNECTOR (COMBINATION METER - ECM)
   1. Disconnect the A6 ECM connector.
   2. Disconnect the J55 combination meter connector.
   3. Measure the resistance according to the value (s) in the table below.

      Standard resistance (Check for open)

      RESISTANCE SPECIFICATION



      Tester Connection	Specified Condition
      W (A6-8) - EFI (J55-12)	Below 1 Ω

      Standard resistance (Check for short)

      RESISTANCE SPECIFICATION



      Tester Connection	Specified Condition
      W (A6-8) or EFI (J55-12) - Body ground	10 kΩ or higher

      Fig 4: Identifying A6 ECM Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: REPAIR OR REPLACE COMBINATION METER ASSEMBLY

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
