Rear Axle Hub: Installation

WARNING: This page is about a different car, the 2007 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY
    1. Hold the axle hub and bearing assembly in a vise between aluminum plates.
      NOTE: Do not overtighten the vise.
    2. Install the parking brake anchor block, cable support bracket and parking brake plate with the 2 nuts.

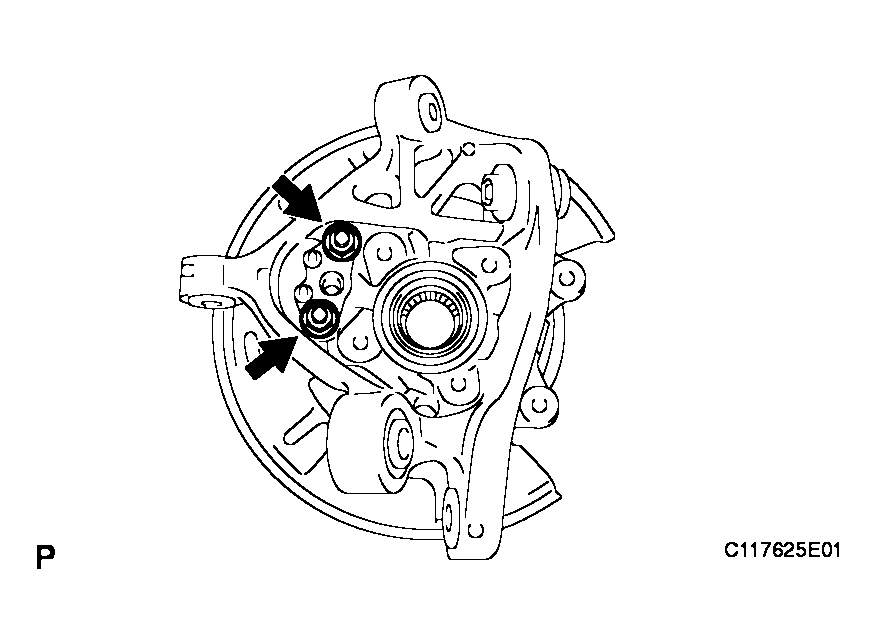

      Fig 1: Identifying Parking Brake Anchor Block, Cable Support Bracket And Parking Brake Plate With Nuts
      G04053753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 76 N*m (775 kgf*cm, 56 ft.*lbf)

    3. Install the axle hub and bearing assembly to the rear axle carrier sub-assembly with the 4 bolts.

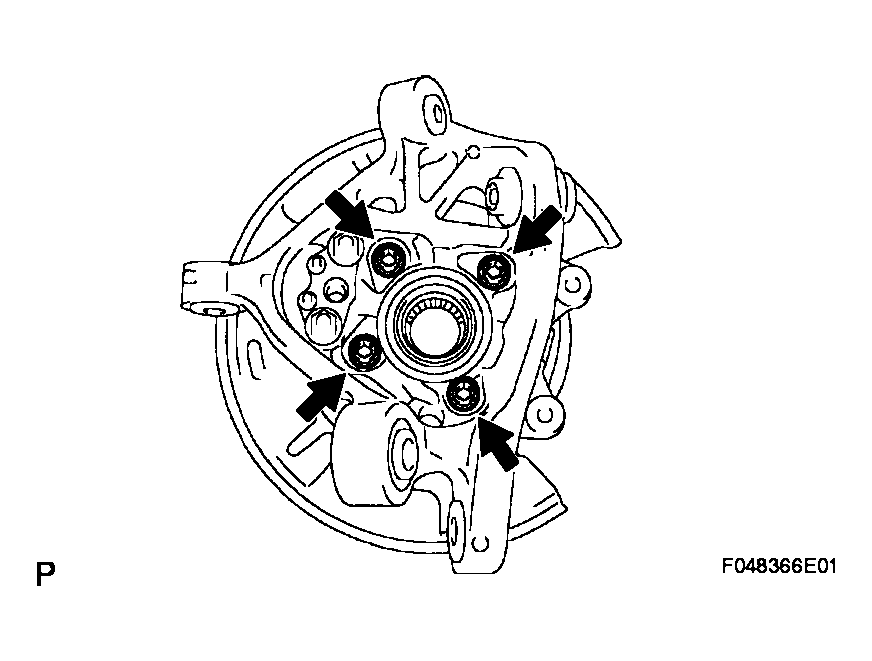

      Fig 2: Installing Axle Hub And Bearing Assembly To Rear Axle Carrier Sub-Assembly With Bolts
      G04053754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)

  2. INSTALL NO. 2 REAR WHEEL BEARING DUST DEFLECTOR
    1. Using SST and a hammer, install a new No. 2 rear wheel bearing dust deflector to the rear axle carrier sub-assembly.

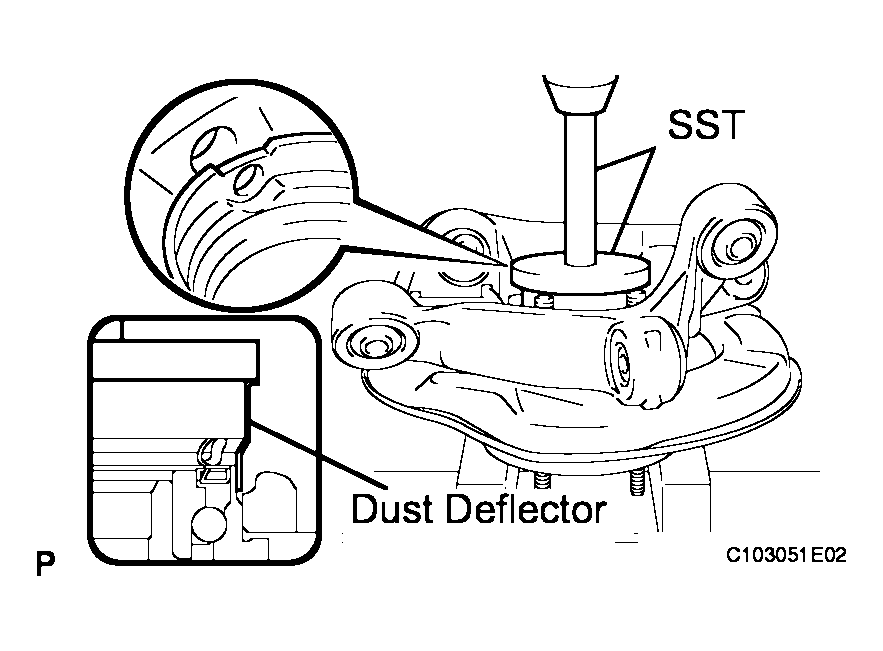

      Fig 3: Installing No. 2 Rear Wheel Bearing Dust Deflector To Rear Axle Carrier Sub-Assembly
      G04053755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09951-01000, 09950-70010 (09951-07150)

      HINT:

      Align the hole for the speed sensor in the No. 2 rear wheel bearing dust deflector with the rear axle carrier sub-assembly.

  3. INSTALL REAR AXLE ASSEMBLY
    1. Install the rear drive shaft assembly and rear axle assembly.
  4. INSTALL NO. 2 REAR UPPER CONTROL ARM ASSEMBLY
    1. Install the No. 2 rear upper control arm assembly to the rear axle carrier sub-assembly with a new nut.

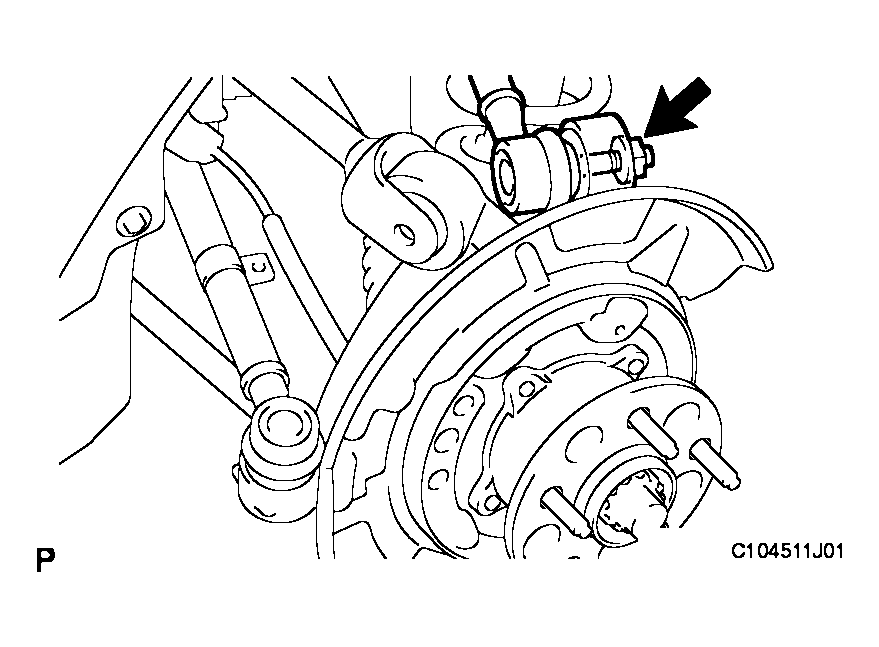

      Fig 4: Installing No. 2 Rear Upper Control Arm Assembly To Rear Axle Carrier Sub-Assembly With Nut
      G04053756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)

  5. TEMPORARILY TIGHTEN NO. 1 REAR UPPER CONTROL ARM ASSEMBLY
    1. Temporarily tighten the No. 1 rear upper control arm assembly to the rear axle carrier sub-assembly with the bolt, washer and nut.

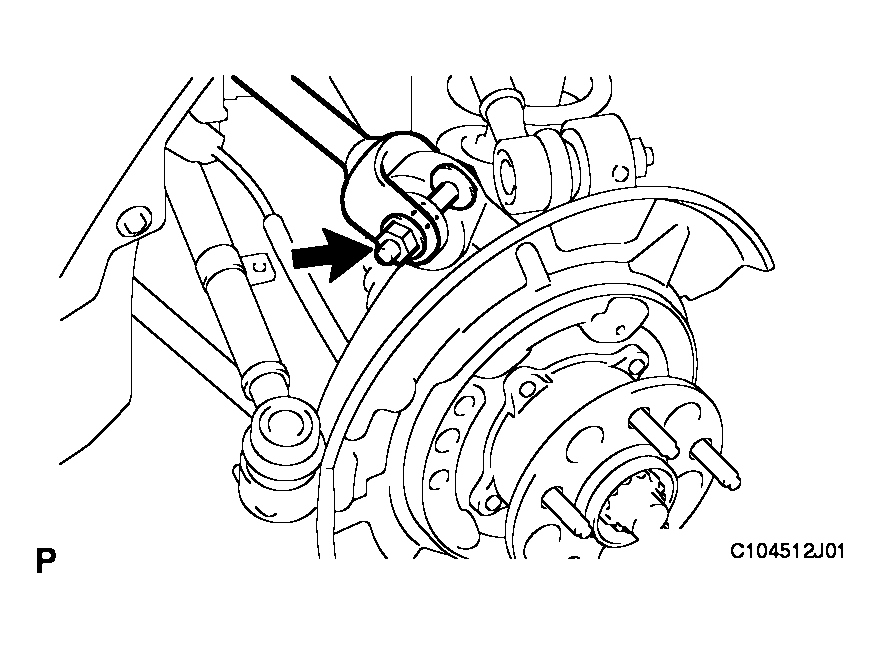

      Fig 5: Installing No. 1 Rear Upper Control Arm Assembly To Rear Axle Carrier Sub-Assembly With Bolt And Nut
      G04053757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Install the bolt from the rear side of the vehicle and lightly tighten the bolt.

  6. TEMPORARILY TIGHTEN NO. 1 REAR SUSPENSION ARM ASSEMBLY
    1. Temporarily tighten the No. 1 rear suspension arm assembly to the rear axle carrier sub-assembly with the bolt and nut.

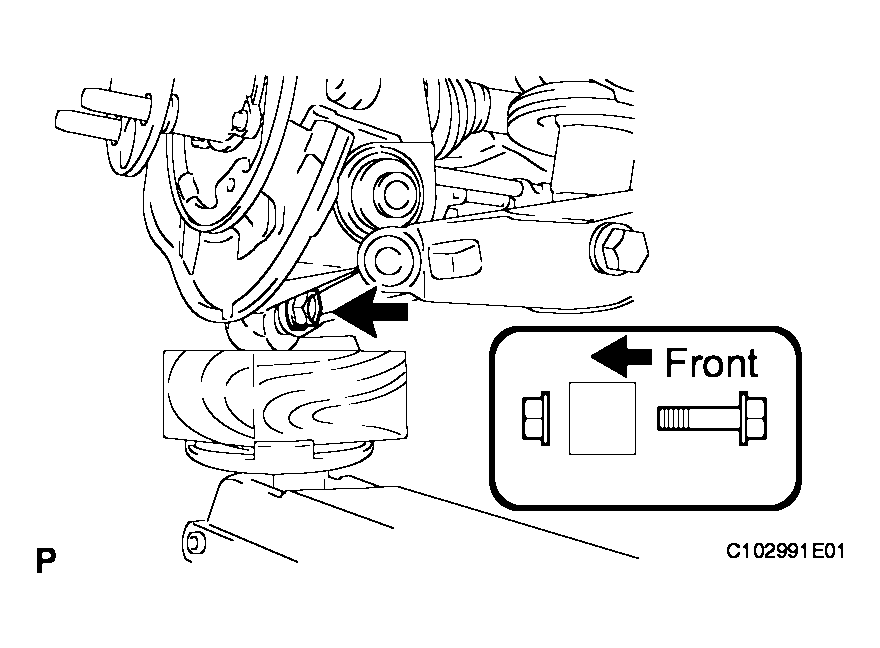

      Fig 6: Installing No. 1 Rear Suspension Arm Assembly To Rear Axle Carrier Sub-Assembly With Bolt And Nut
      G04053758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Install the bolt from the rear side of the vehicle and lightly tighten the bolt.

  7. TEMPORARILY TIGHTEN NO. 2 REAR SUSPENSION ARM ASSEMBLY
    1. Temporarily tighten the No. 2 rear suspension arm assembly to the rear axle carrier sub-assembly with the bolt and nut.

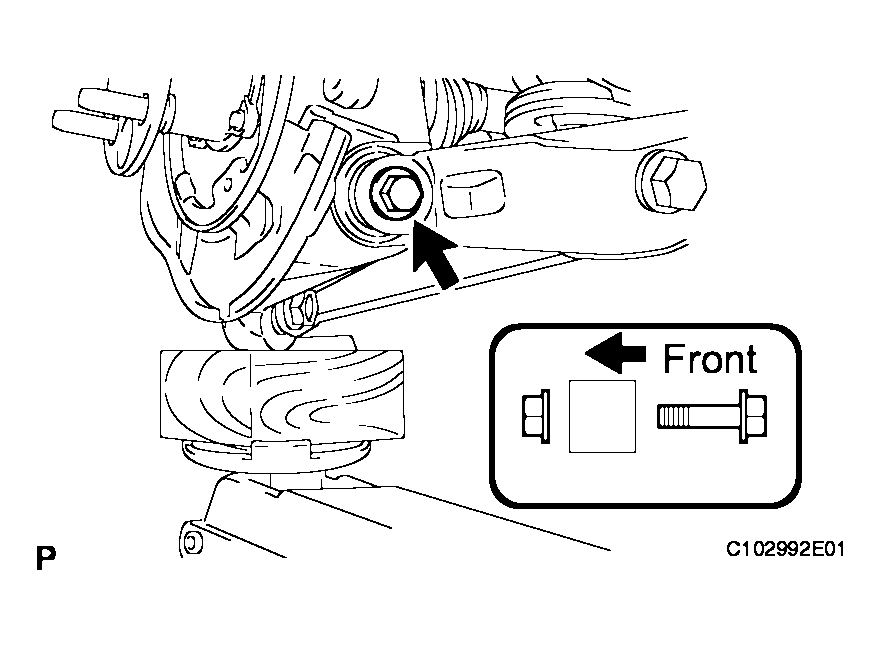

      Fig 7: Installing No. 2 Rear Suspension Arm Assembly To Rear Axle Carrier Sub-Assembly With Bolt And Nut
      G04053759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Install the bolt from the rear side of the vehicle and lightly tighten the bolt.

  8. INSTALL TOE CONTROL LINK SUB-ASSEMBLY
    1. Install the toe control link sub-assembly to the rear axle carrier sub-assembly with a new nut.

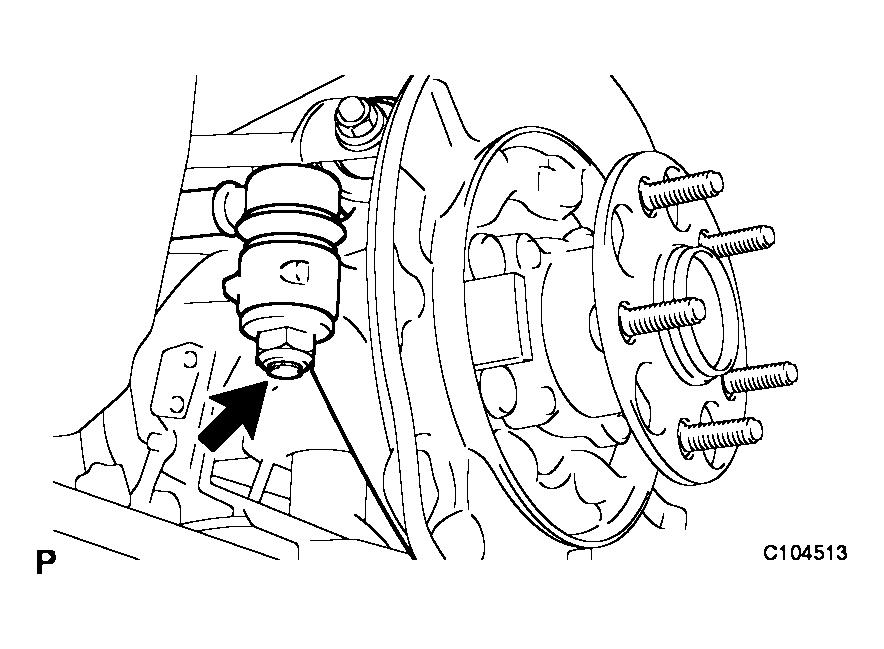

      Fig 8: Installing Toe Control Link Sub-Assembly To Rear Axle Carrier Sub-Assembly With Nut
      G04053760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)

  9. INSTALL REAR STABILIZER LINK ASSEMBLY
    1. Install the stabilizer link assembly and the load sensing valve sensor bracket to the No. 2 rear suspension arm assembly with the bolt and nut.
      Fig 9: View Of Rear Stabilizer Link Assembly Mounting Bolt
      G04053761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 27 N*m (275 kgf*cm, 20 ft.*lbf)

  10. INSTALL PARKING BRAKE CABLE ASSEMBLY
    1. Install the parking brake cable assembly to the rear axle carrier sub-assembly with the 2 nuts.
      Fig 10: Identifying Parking Brake Cable Assembly Mounting Plate With Nuts
      G04047933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  11. APPLY HIGH TEMPERATURE GREASE (See  REASSEMBLY  )
  12. INSTALL PARKING BRAKE SHOE LEVER (See  REASSEMBLY  )
  13. INSTALL NO. 2 PARKING BRAKE SHOE ASSEMBLY (See  REASSEMBLY  )
  14. INSTALL NO. 1 PARKING BRAKE SHOE ASSEMBLY (See  REASSEMBLY  )
  15. INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET (See  REASSEMBLY  )
  16. INSTALL NO. 1 PARKING BRAKE SHOE RETURN SPRING (See  REASSEMBLY  )
  17. INSTALL NO. 2 PARKING BRAKE SHOE RETURN SPRING (See  REASSEMBLY  )
  18. CHECK PARKING BRAKE INSTALLATION (See  REASSEMBLY  )
  19. INSTALL REAR SPEED SENSOR (See  INSTALLATION  )
  20. INSTALL REAR AXLE SHAFT NUT
    1. Install a new rear axle shaft nut.

      Torque: 290 N*m (2,957 kgf*cm, 214 ft.*lbf)

      HINT:

      Stake the nut after inspecting for looseness and runout in the following steps.

  21. INSPECT REAR AXLE HUB BEARING FOR LOOSENESS (See  ON-VEHICLE INSPECTION   )
  22. INSPECT REAR AXLE HUB FOR RUNOUT (See  ON-VEHICLE INSPECTION   )
  23. INSTALL REAR DISC (See  REASSEMBLY  )
  24. ADJUST PARKING BRAKE SHOE CLEARANCE (See  ADJUSTMENT  )
  25. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY (See  INSTALLATION  )
  26. INSTALL REAR AXLE SHAFT NUT
    1. Using a chisel and a hammer, stake the axle shaft nut.
      Fig 11: Staking Axle Shaft Nut
      G04053543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. STABILIZE SUSPENSION (See  INSTALLATION  )
  28. FULLY TIGHTEN NO. 1 REAR UPPER CONTROL ARM ASSEMBLY
    1. Fully tighten the No. 1 rear upper control arm assembly with the nut.

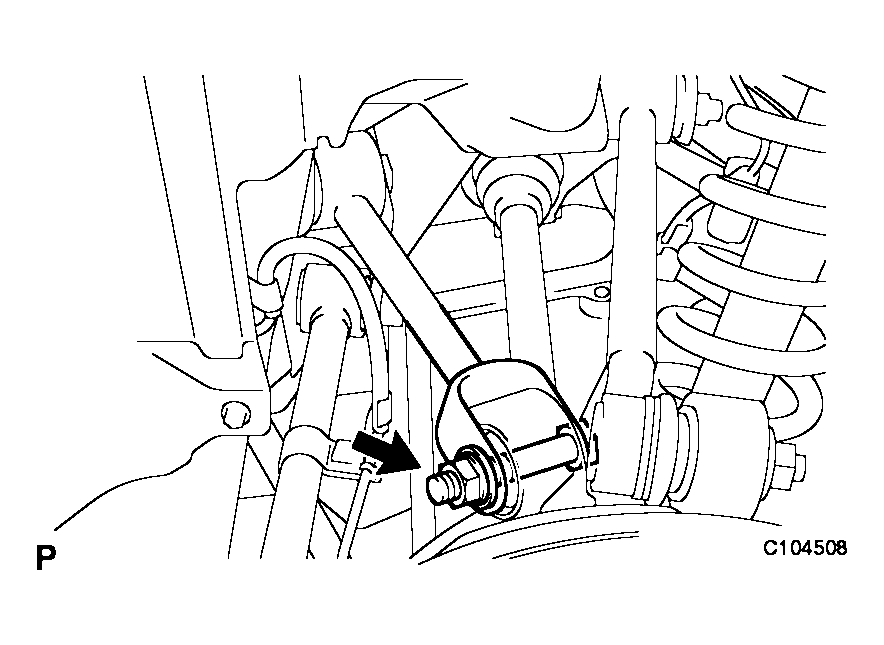

      Fig 12: Identifying No. 1 Rear Upper Control Arm Assembly With Nut
      G04053764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 161 N*m (1,642 kgf*cm, 119 ft.*lbf)

  29. FULLY TIGHTEN NO. 1 REAR SUSPENSION ARM ASSEMBLY
    1. Fully tighten the No. 1 rear suspension arm assembly with the bolt and nut.

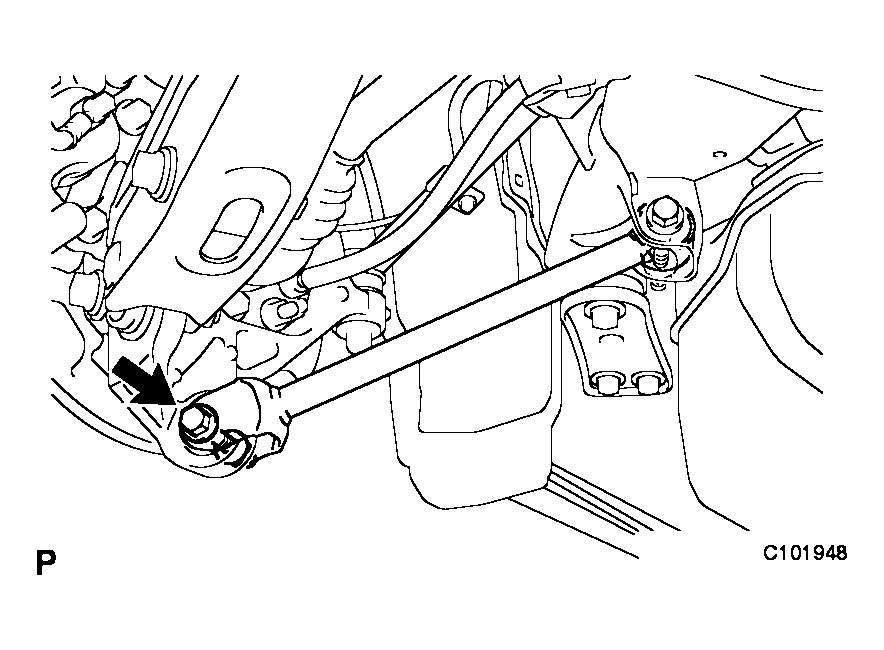

      Fig 13: Identifying No. 1 Rear Suspension Arm Assembly With Bolt And Nut
      G04053765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 95 N*m (969 kgf*cm, 70 ft.*lbf)

      NOTE: Turn the bolt while holding the nut.
  30. FULLY TIGHTEN NO. 2 REAR SUSPENSION ARM ASSEMBLY
    1. Fully tighten the No. 2 rear suspension arm assembly with the bolt and nut.
      Fig 14: Identifying No. 2 Rear Suspension Arm Assembly With Bolt And Nut
      G04053766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 161 N*m (1,642 kgf*cm, 119 ft.*lbf)

      NOTE: Turn the bolt while holding the nut.
  31. INSTALL REAR WHEEL

    Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

  32. INSPECT PARKING BRAKE PEDAL TRAVEL (for Automatic Transaxle) (See  ADJUSTMENT  )
  33. ADJUST PARKING BRAKE PEDAL TRAVEL (for Automatic Transaxle) (See  ADJUSTMENT  )
  34. INSPECT PARKING BRAKE LEVER TRAVEL (for Manual Transmission) (See  ADJUSTMENT  )
  35. ADJUST PARKING BRAKE LEVER TRAVEL (for Manual Transmission) (See  ADJUSTMENT  )
  36. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    (See ADJUSTMENT )

  37. CHECK ABS SPEED SENSOR SIGNAL

    (with VDIM: See TEST MODE PROCEDURE )

    (without VDIM: See TEST MODE PROCEDURE )
