Shift Lever Assembly: Components

Fig 1: Identifying Shift Lever Assembly Components (1 Of 3)
G05318241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Shift Lever Assembly Replacement Components With Torque Specifications(2 Of 3)
G05317638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

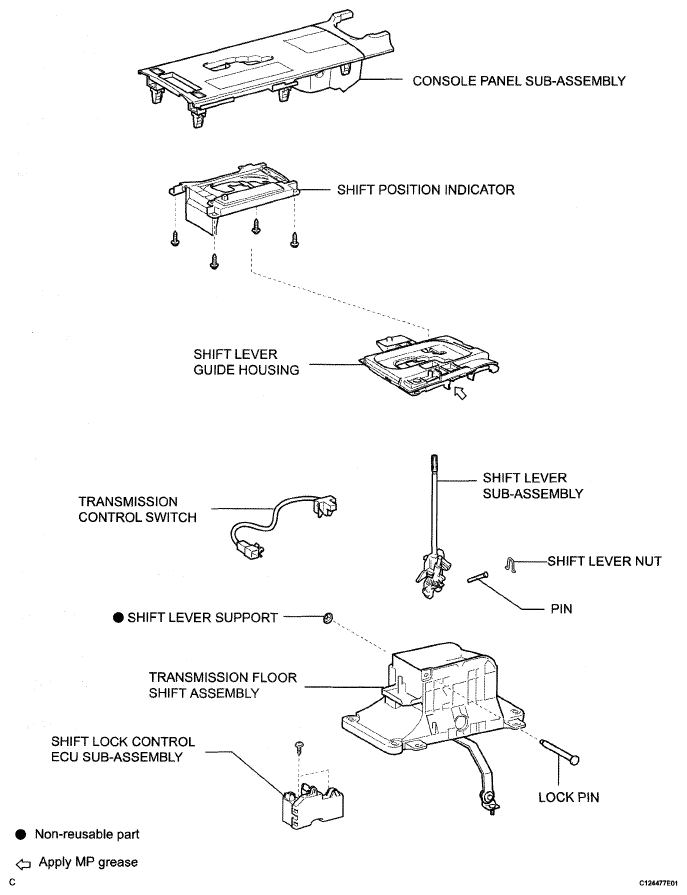

Fig 3: Identifying Shift Lever Assembly Components (3 Of 3)
G05317639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
