Power Steering ECU Communication Stop Mode

Power Steering ECU Communication Stop Mode

DESCRIPTION

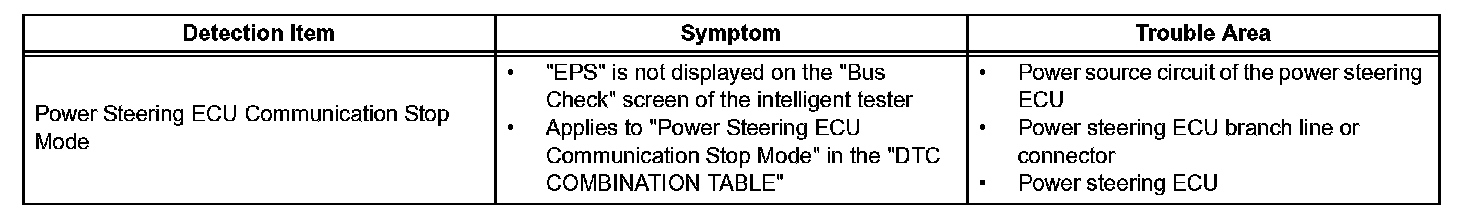

Detection Item:






HINT: "EPS" refers to the circuit that includes the power steering ECU.

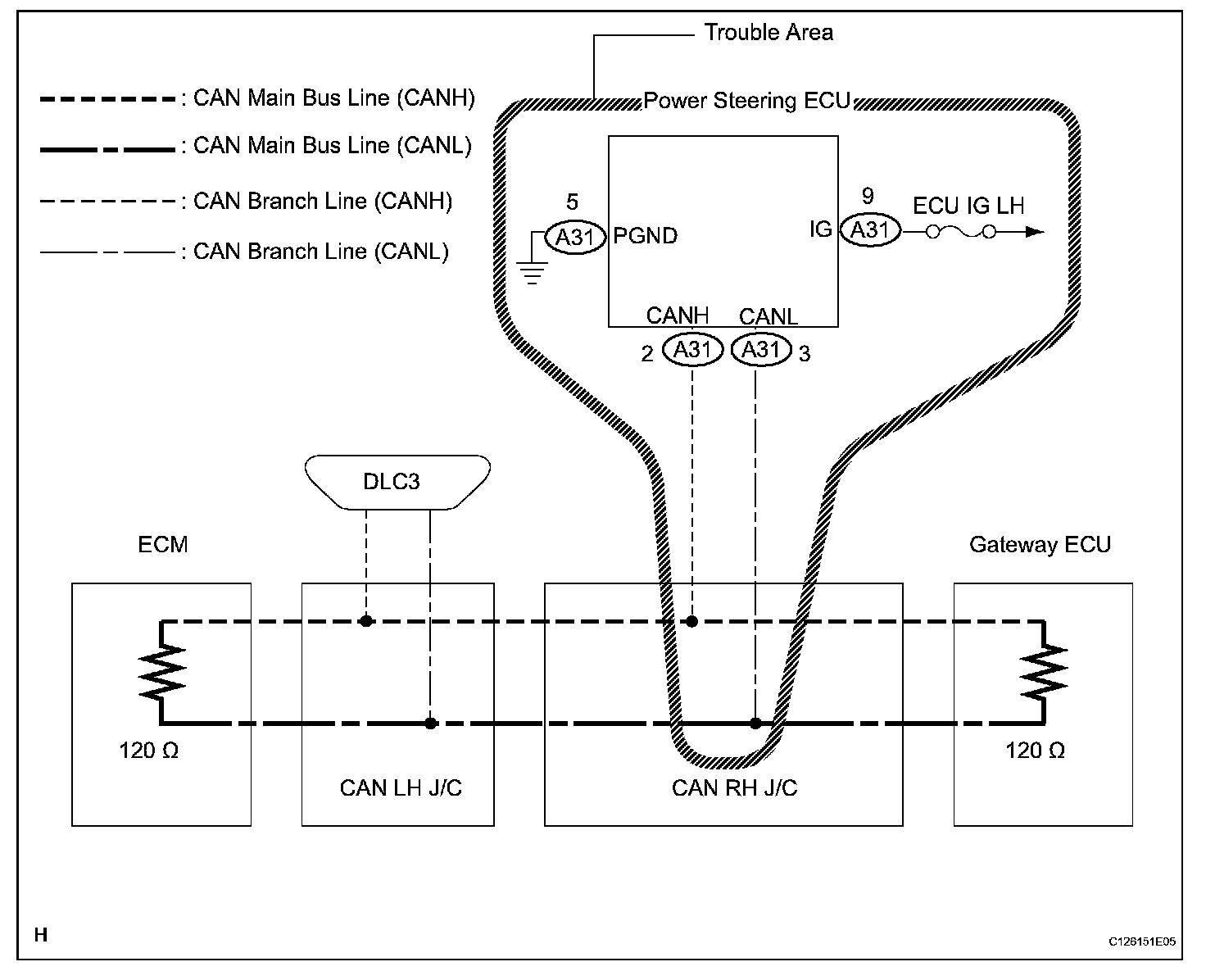

Wiring Diagram:

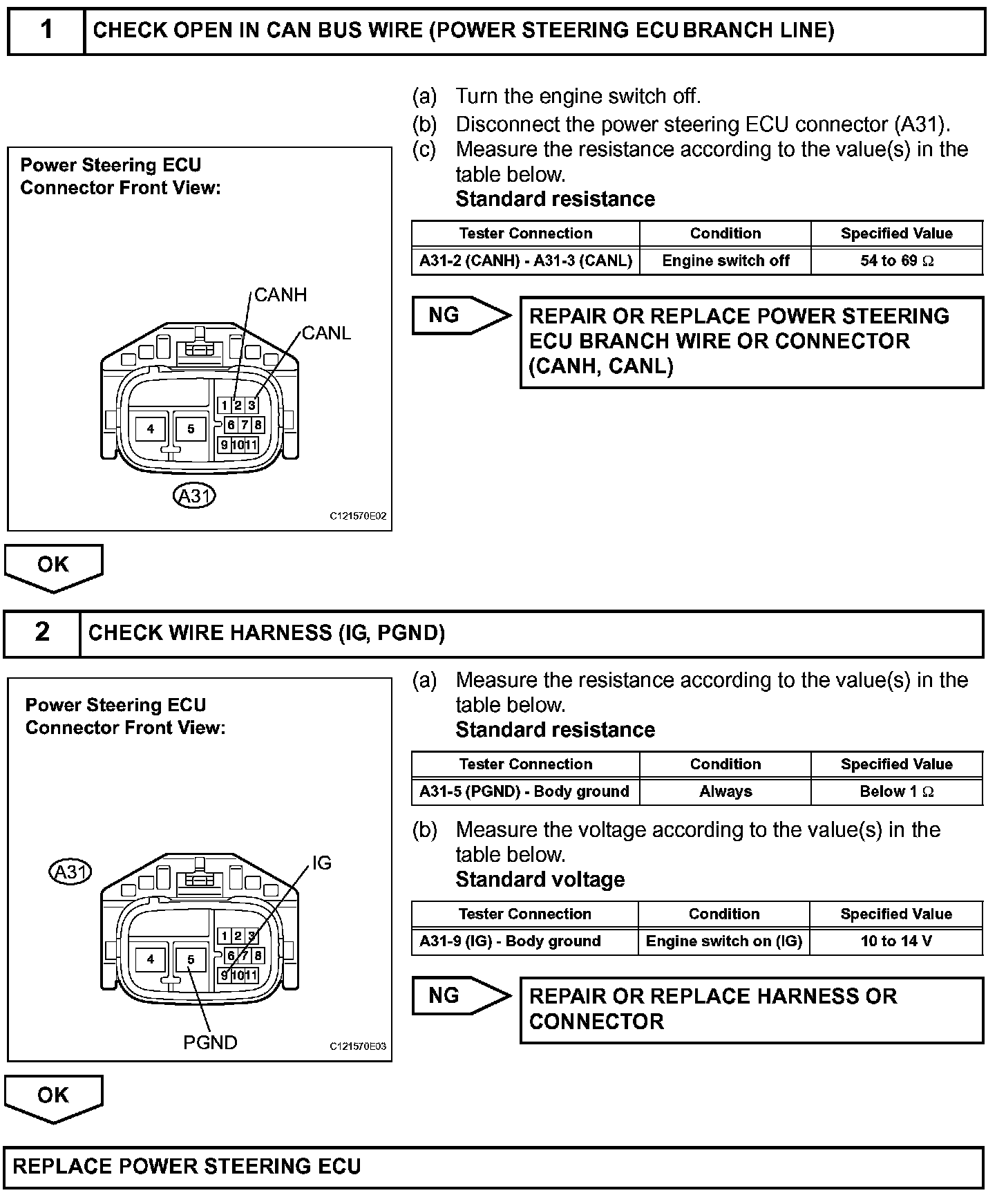

Step 1-2:




INSPECTION PROCEDURE
