Seat Temperature Control Module: Service and Repair

SEAT HEATER CONTROL

Rear Seat Control:

REMOVAL

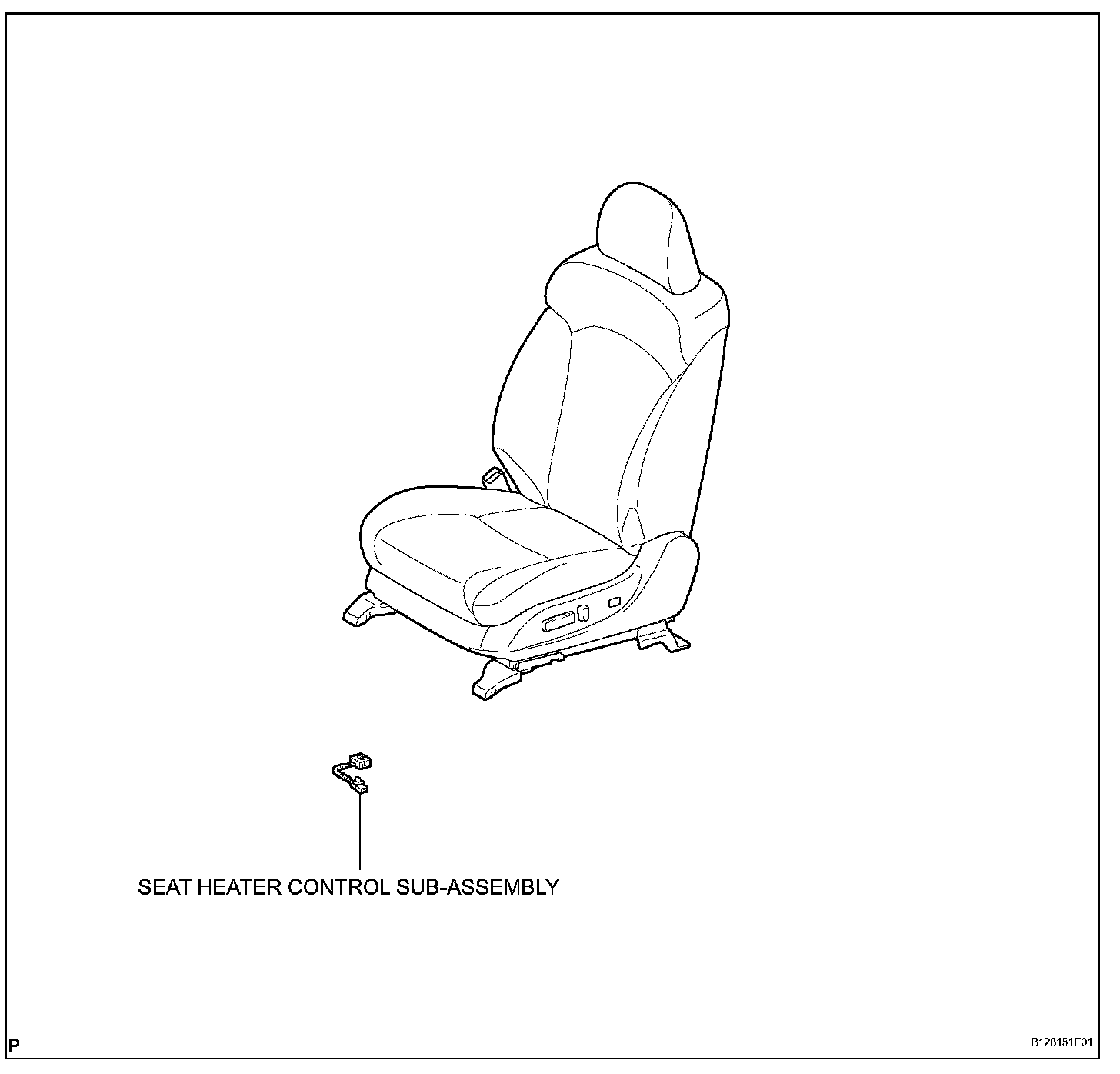

1. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY

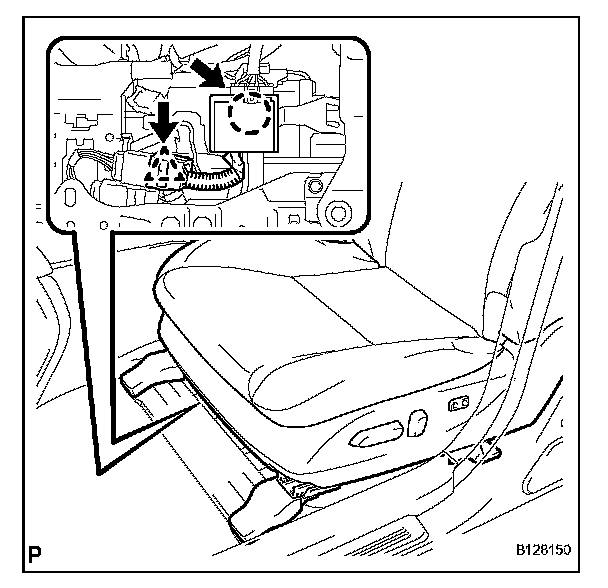

a. Disconnect the 2 connectors.
b. Disconnect the clamp, claw and remove the seat heater control sub-assembly.

INSTALLATION

1. INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY





a. Install the seat heater control sub-assembly with the clamp and claw.
b. Connect the 2 connectors.
