Variable Valve Timing Actuator Position Sensor: Service and Repair

REMOVAL

1. REMOVE V-BANK COVER SUB-ASSEMBLY

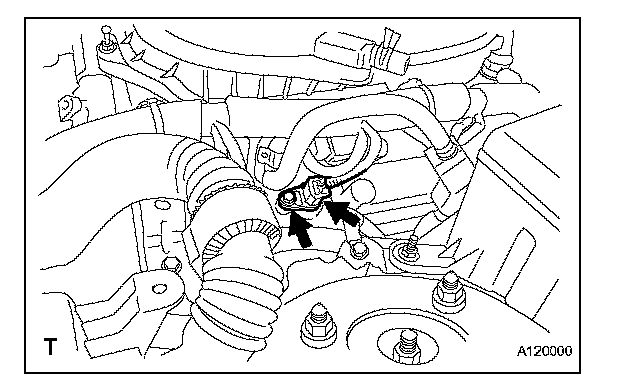

2. REMOVE VVT SENSOR (for Intake Side of Bank 1)




a. Disconnect the vvt sensor connector.
b. Remove the bolt and vvt sensor.

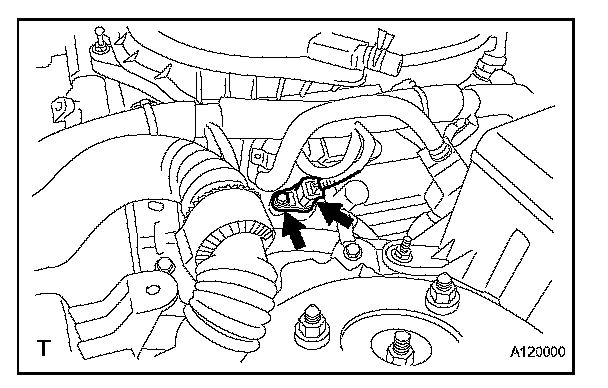

3. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)




a. Disconnect the vvt sensor connector.
b. Remove the bolt and vvt sensor.

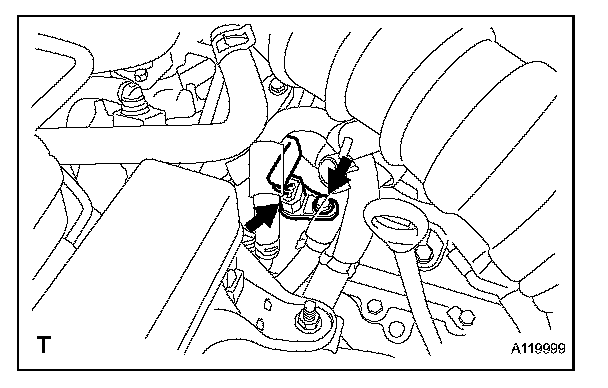

4. REMOVE VVT SENSOR (for Intake Side of Bank 2)




a. Disconnect the vvt sensor connector.
b. Remove the bolt and vvt sensor.

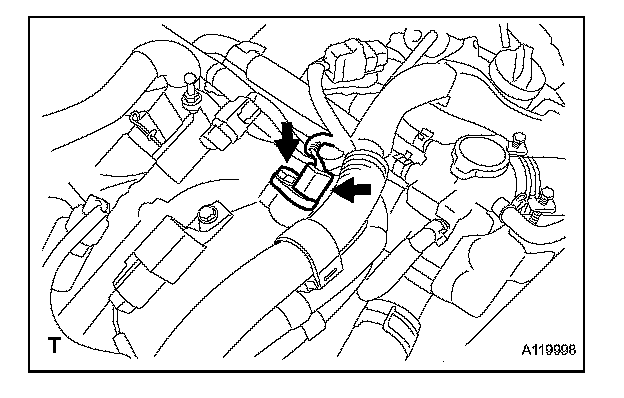

5. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)




a. Disconnect the vvt sensor connector.
b. Remove the bolt and vvt sensor.

INSTALLATION

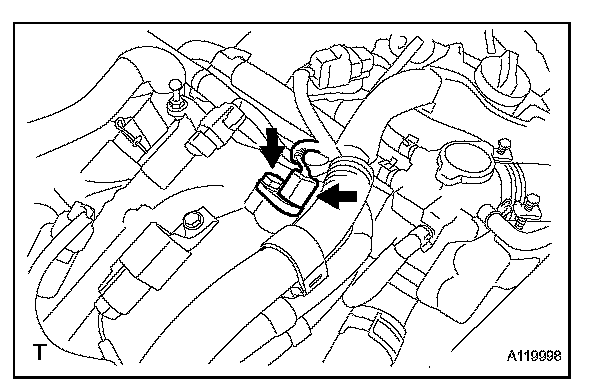

1. INSTALL VVT SENSOR (for Exhaust Side of Bank 2)




a. Install the vvt sensor with the bolt.

Torque: 10 N.m (102 kgf.cm,7 ft.lbf)

b. Connect the vvt sensor connector.

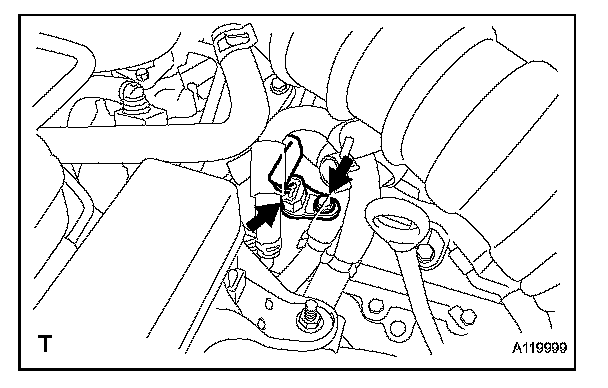

2. INSTALL VVT SENSOR (for Intake Side of Bank 2)




a. Install the vvt sensor with the bolt.

Torque: 10 N.m (102 kgf.cm,7 ft.lbf)

b. Connect the vvt sensor connector.

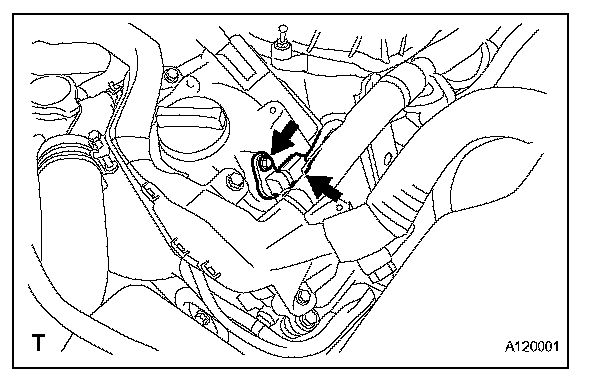

3. INSTALL VVT SENSOR (for Exhaust Side of Bank 1)




a. Install the vvt sensor with the bolt.

Torque: 10 N.m (102 kgf.cm,7 ft.lbf)

b. Connect the vvt sensor connector.

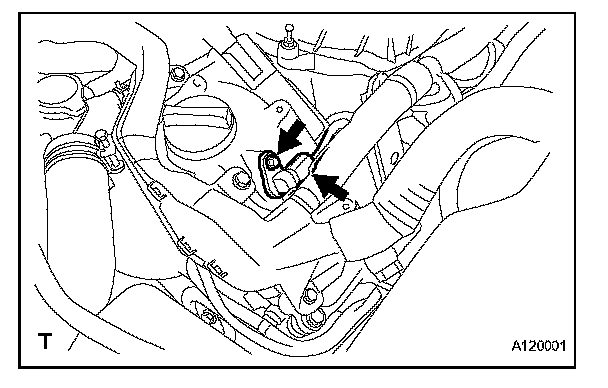

4. INSTALL VVT SENSOR (for Intake Side of Bank 1)




a. Install the vvt sensor with the bolt.

Torque: 10 N.m (102 kgf.cm,7 ft.lbf)

b. Connect the vvt sensor connector.

5. INSTALL V-BANK COVER SUB-ASSEMBLY
