Touch Panel Switch does not Function

1. Check for foreign matter on the display.

   OK: The display is clean.

NG: CLEAN DISPLAY AND RECHECK TOUCH PANEL

OK: Go to next step.

1. Enter the "Display Check" mode (Touch Switch Check) (See DISPLAY CHECK MODE  ).
2. Touch the display in the area where the switch malfunction occurs.

   OK: A "+" mark appears at the touched position.

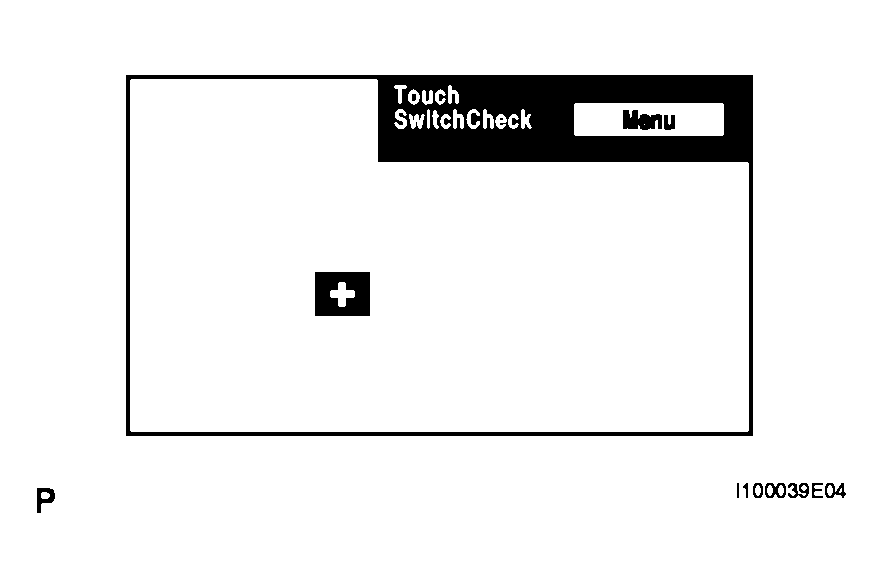

Fig 1: Checking Touch Switch (Display Check Mode)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

OK: REPLACE MULTI-DISPLAY
