Display Check Mode

HINT:

• This mode checks the color display on the multi-display.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1. ENTER DIAGNOSTIC MODE (See  DTC CHECK/CLEAR   )
2. DISPLAY CHECK
   1. Select "Display Check" from the "Diagnosis MENU" screen.

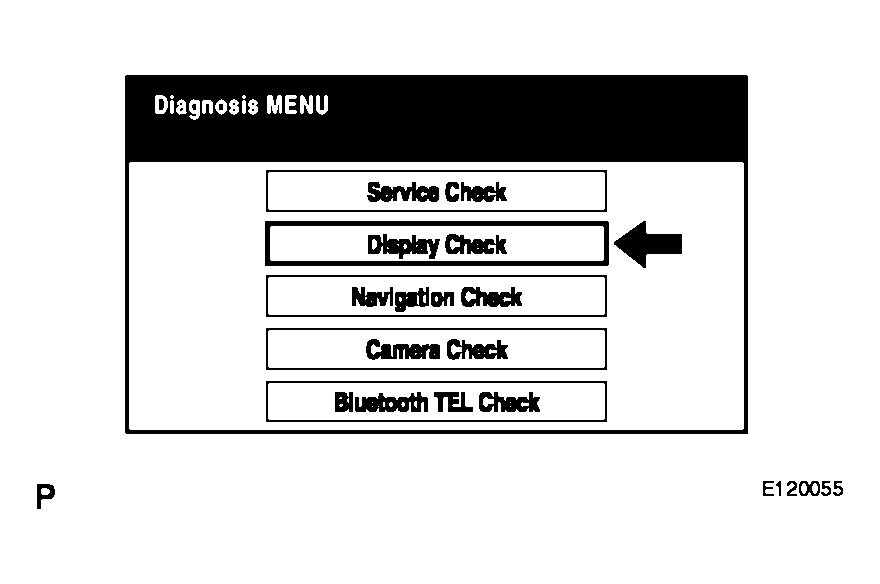

   Fig 1: Identifying Display Check On Diagnosis MENU Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. COLOR BAR CHECK
   1. Select "Color Bar Check" from the "Display Check" screen.

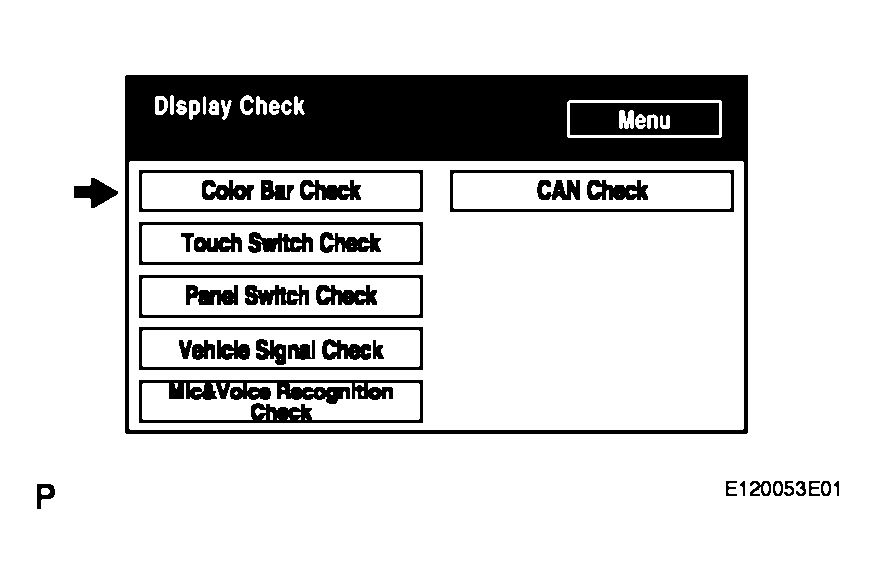

      Fig 2: Identifying Color Bar Check On Display Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Select a color bar from the "Color Bar Check Mode" screen.
   3. Check the display color.

      HINT:

      • The entire screen turns to the color or stripe selected.
      • Touching the display will return to the "Color Bar Check" screen.

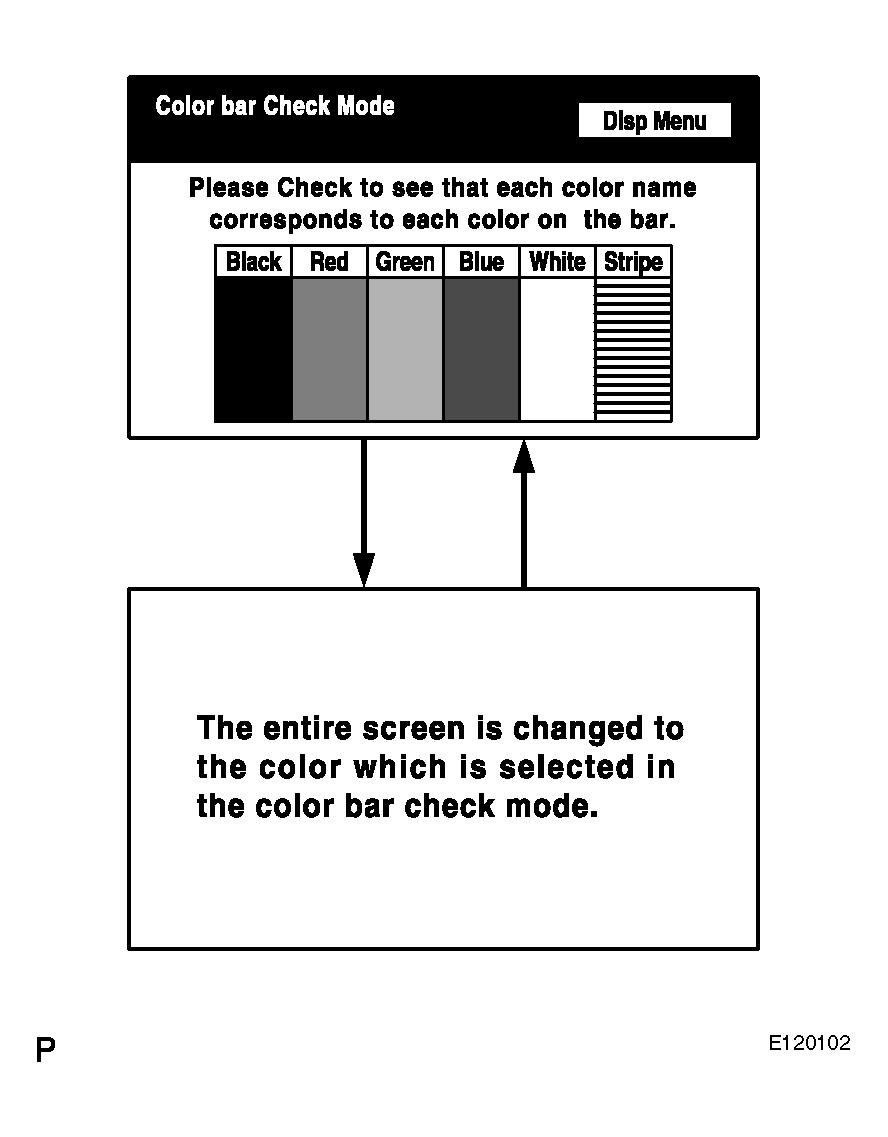

   Fig 3: Identifying Color Bar Check Mode Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. TOUCH SWITCH CHECK
   1. Select "Touch Switch Check" from the "Display Check" screen.

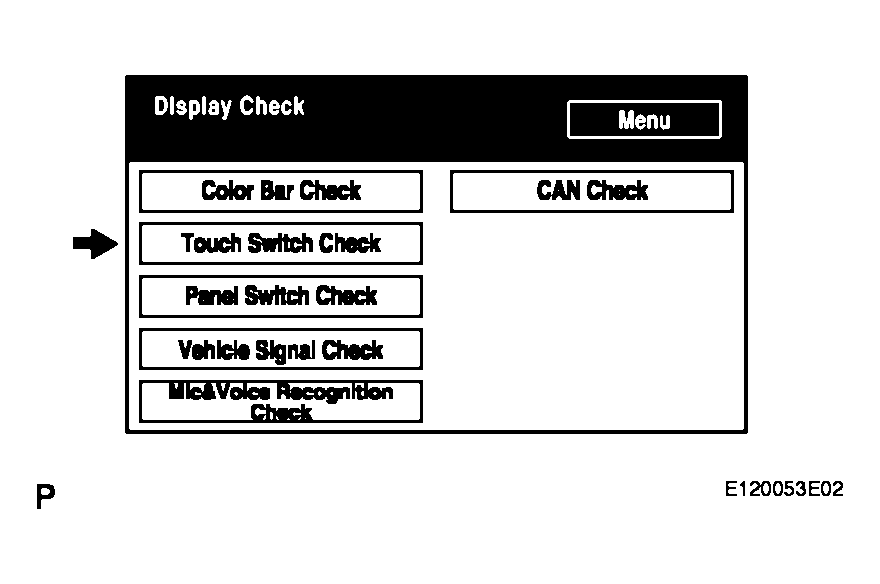

      Fig 4: Identifying Touch Switch Check On Display Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.

      HINT:

      • A"+" mark is displayed where the display is touched.
      • The "+" mark remains on the display even after the finger is removed.

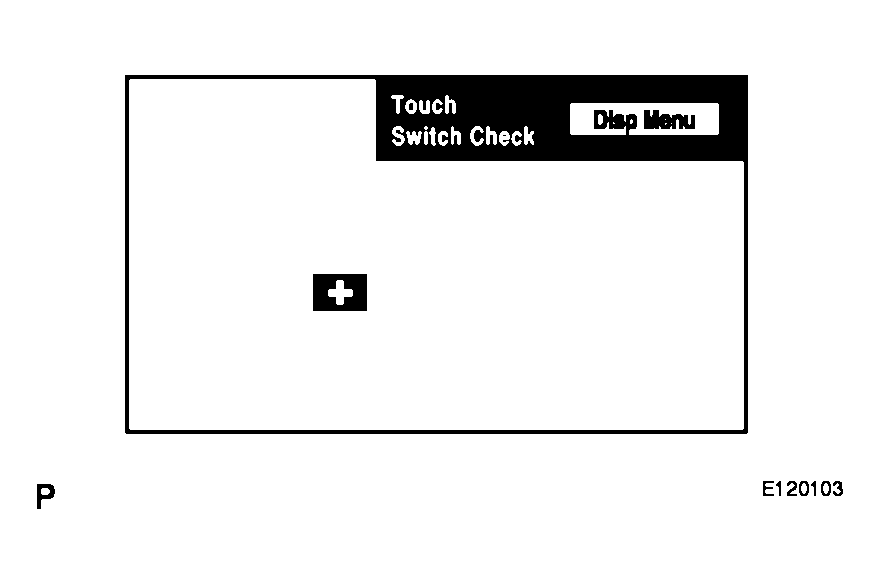

   Fig 5: Identifying Touch Switch Check Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. PANEL SWITCH CHECK
   1. Select "Panel Switch Check" from the "Display Check" screen.
      Fig 6: Identifying Panel Switch Check On Display Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Operate each switch and check that the switch name and condition are correctly displayed.

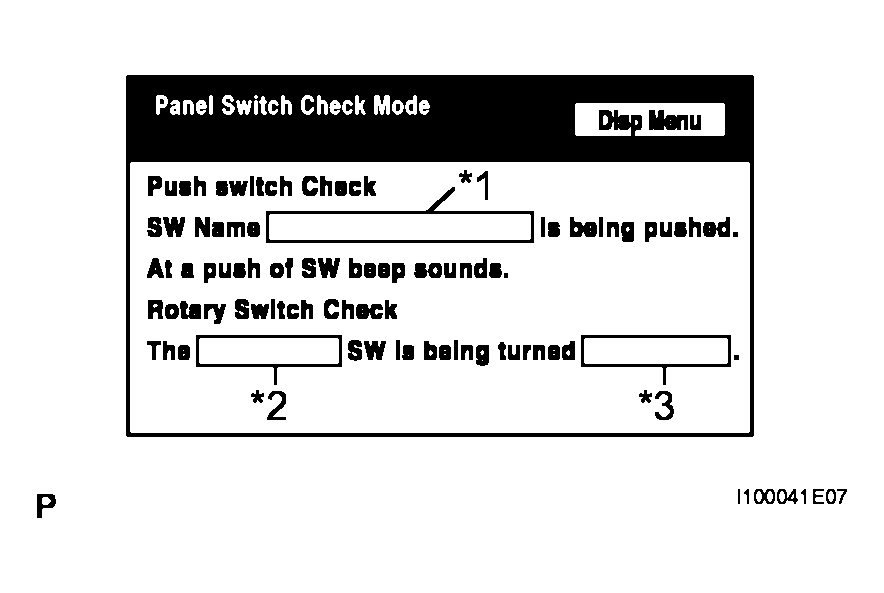

   Fig 7: Identifying Switch Name And Condition Are Correctly Displayed

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   DISPLAY CONTENTS



   Display	Contents
   Push switch name/*1	Name of the pressed switch is displayed. If more than one switch is pressed, "MULTIPLE" is displayed.
   Rotary switch name/*2	Name of the rotary switch is displayed.
   Rotary switch direction/*3	Direction of the rotary switch is displayed.

6. VEHICLE SIGNAL CHECK
   1. Select "Vehicle Signal Check" from the "Display Check" screen.

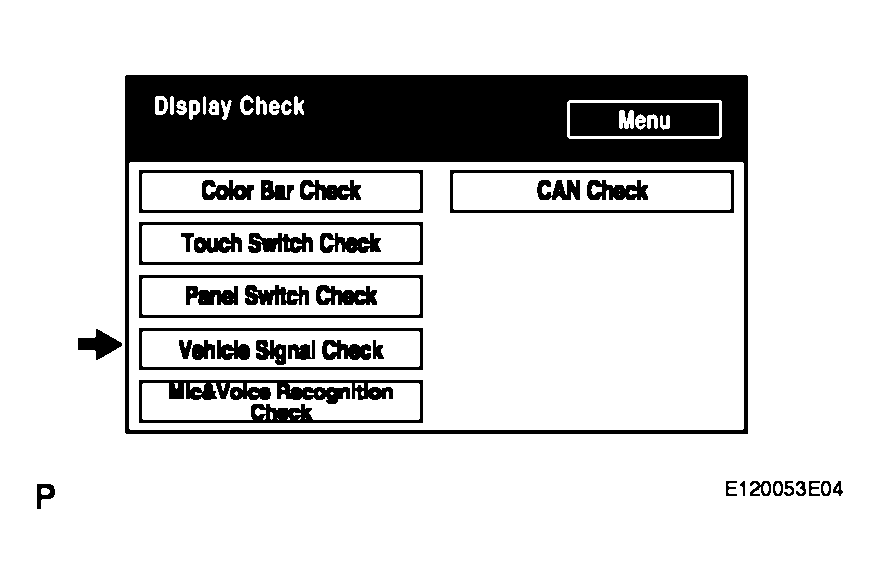

      Fig 8: Identifying Vehicle Signal Check On Display Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.

      HINT:

      • Only conditions having inputs are displayed.
      • This screen is updated once per second when input signals to the vehicle are changed.
      • For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION  .

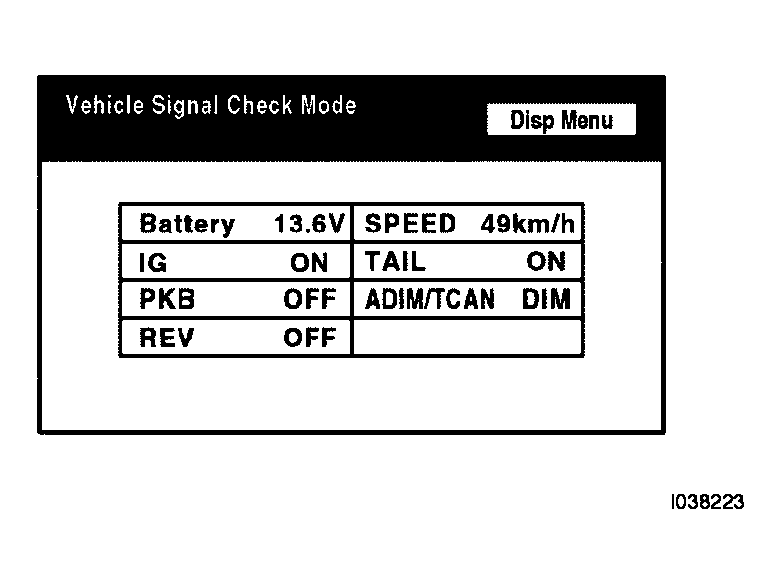

   Fig 9: Identifying Vehicle Signal Check Mode Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. MIC & VOICE RECOGNITION CHECK
   1. Select "Mic & Voice Recognition Check" on the "Display Check" screen to display "MICROPHONE & VOICE RECOGNITION CHECK" screen.

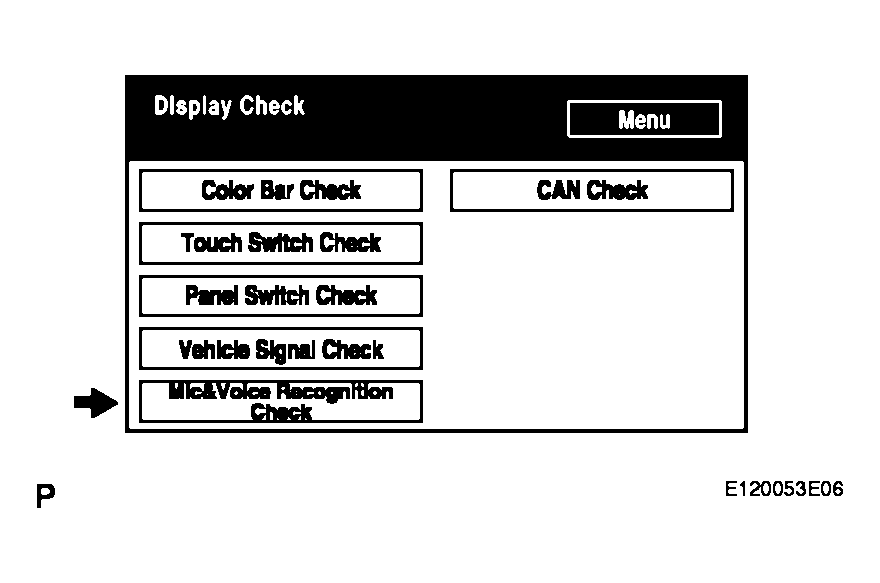

      Fig 10: Identifying Mic & Voice Recognition Check On Display Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When voice is input into the microphone, check that the microphone input level meter changes according to the input voice.
   3. Push the recording switch and perform voice recording.
   4. Check that the recording indicator remains on while recording and that the recorded voice is played normally.

      HINT:

      For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION  .

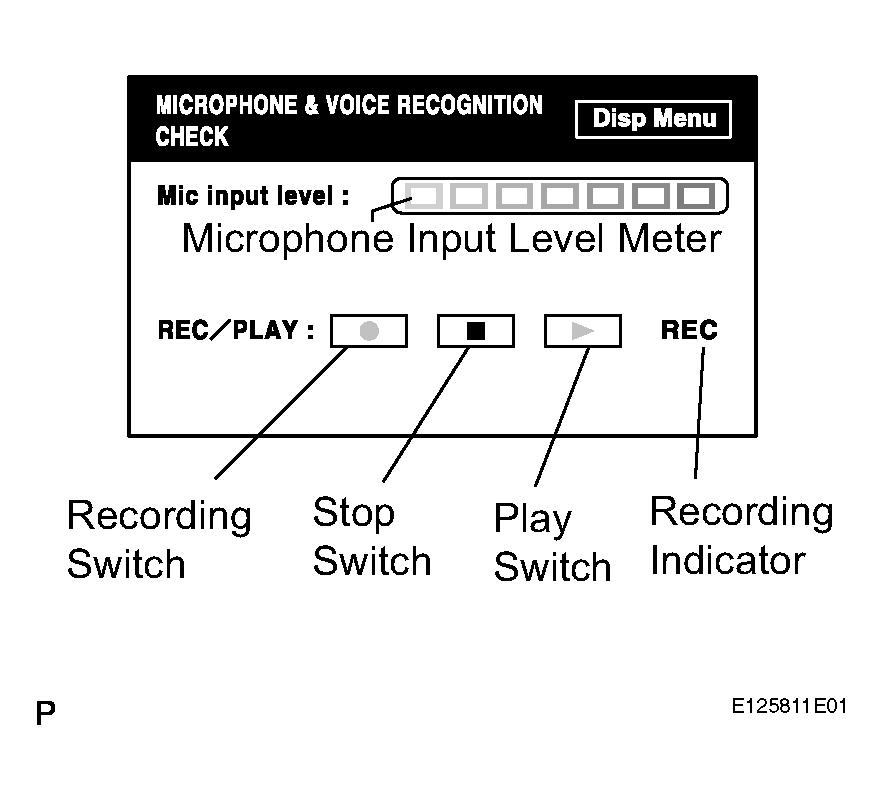

   Fig 11: Identifying MICROPHONE & VOICE RECOGNITION CHECK Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

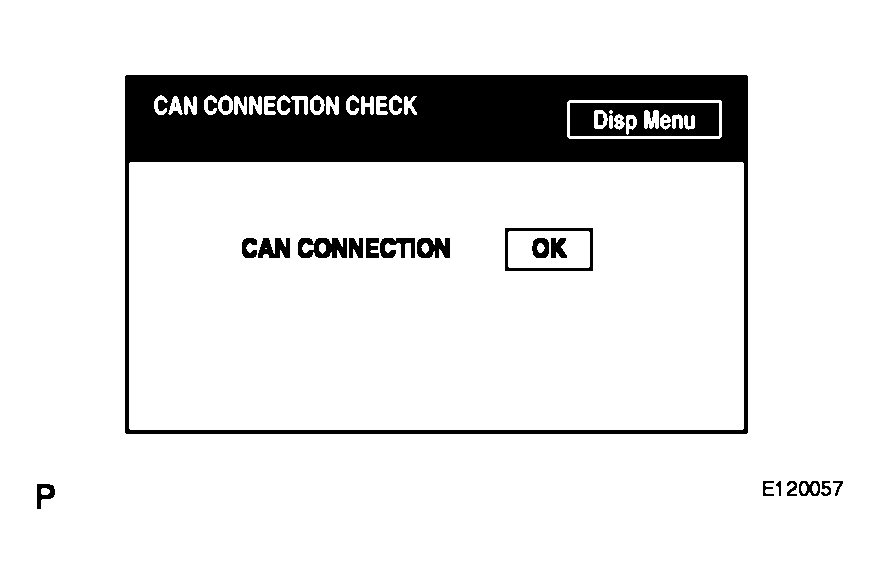

8. CAN CHECK
   1. Select "CAN check" from the "Display check" screen.
   2. Check the CAN connection check result.

      HINT:

      • This function operates only for the systems connected to the CAN system.
      • For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION  .
   Fig 12: Identifying CAN Check On Display Check Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
