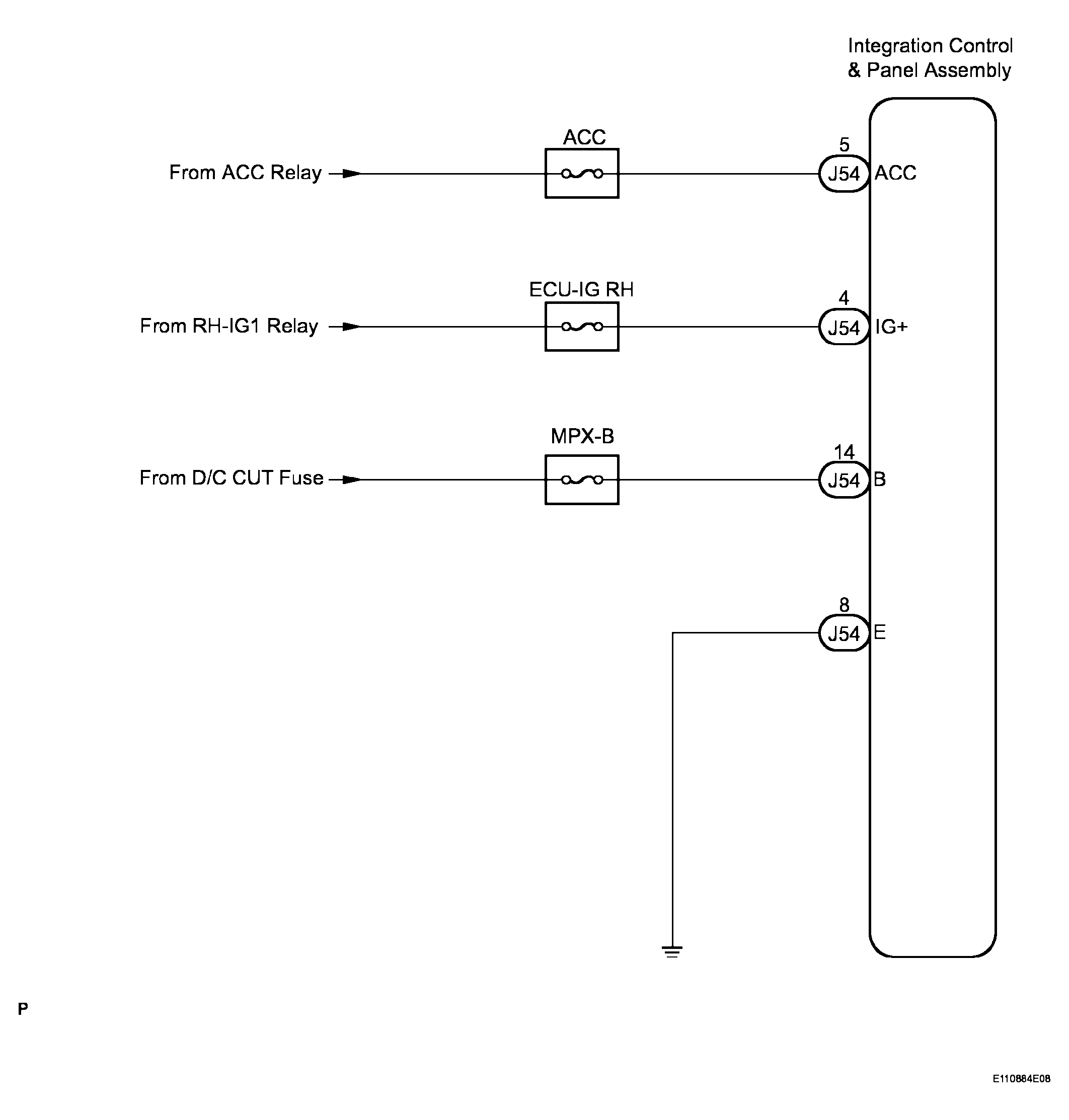

Integration Control and Panel Assembly Power Source Circuit: Wiring Diagram

1. Disconnect the integration control & panel assembly connector J54.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION CHART



   Tester connection	Condition	Specified condition
   E - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   TESTER CONNECTION AND SPECIFIED CONDITION CHART



   Tester connection	Condition	Specified condition
   B - GND	Always	10 to 14 V
   ACC - GND	Engine SW on (ACC)	10 to 14 V
   IG+ - GND	Engine SW on (IG)	10 to 14 V

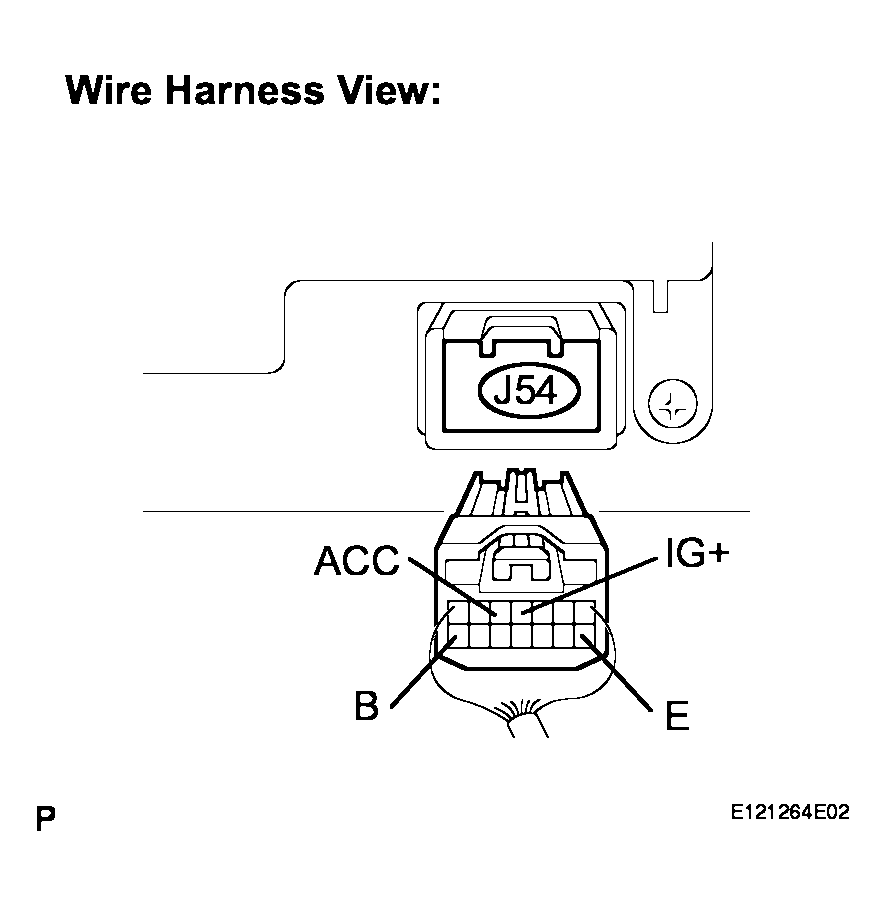

Fig 2: Identifying Integration Control & Panel Assembly Connector J54

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
