Accessories & Equipment: Infotainment: Navigation: Multi-Display: Components

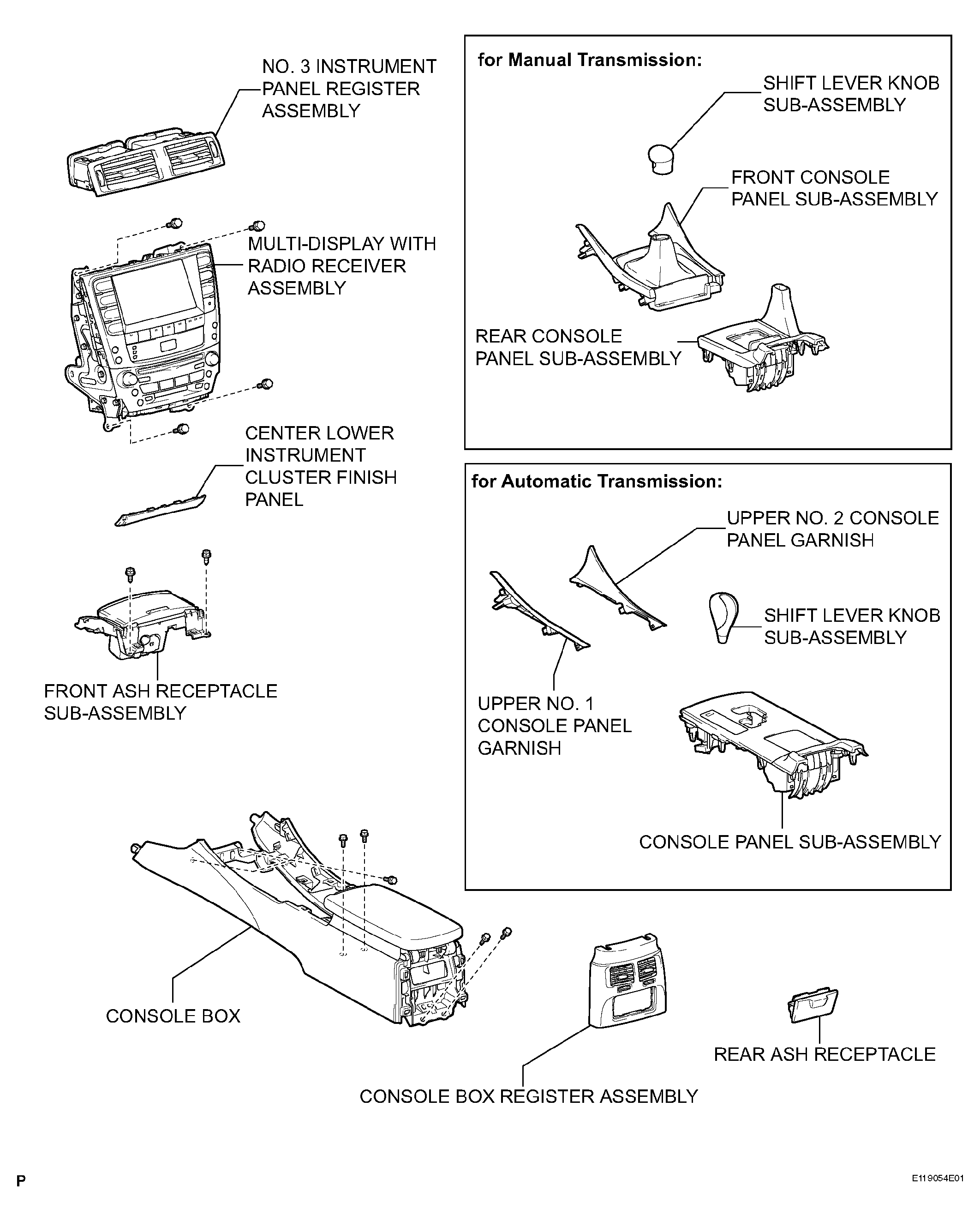

Fig 1: Exploded View Of Multi-Display (1 Of 2)
G04050526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

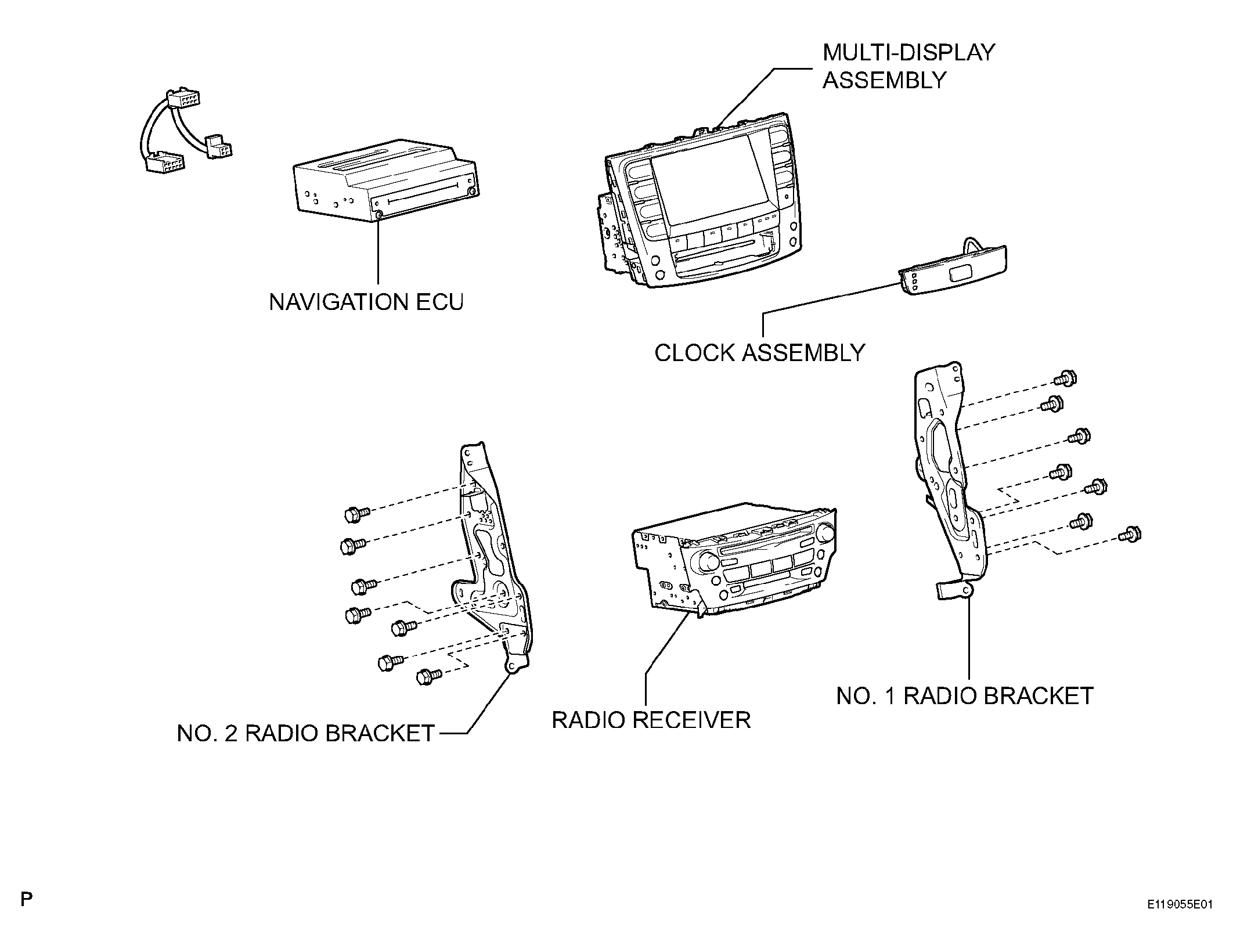

Fig 2: Exploded View Of Multi-Display (2 Of 2)
G04050527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
