Navigation Ecu: Installation

  1. INSTALL NAVIGATION ECU
    1. Install the navigation ECU with the 4 bolts.

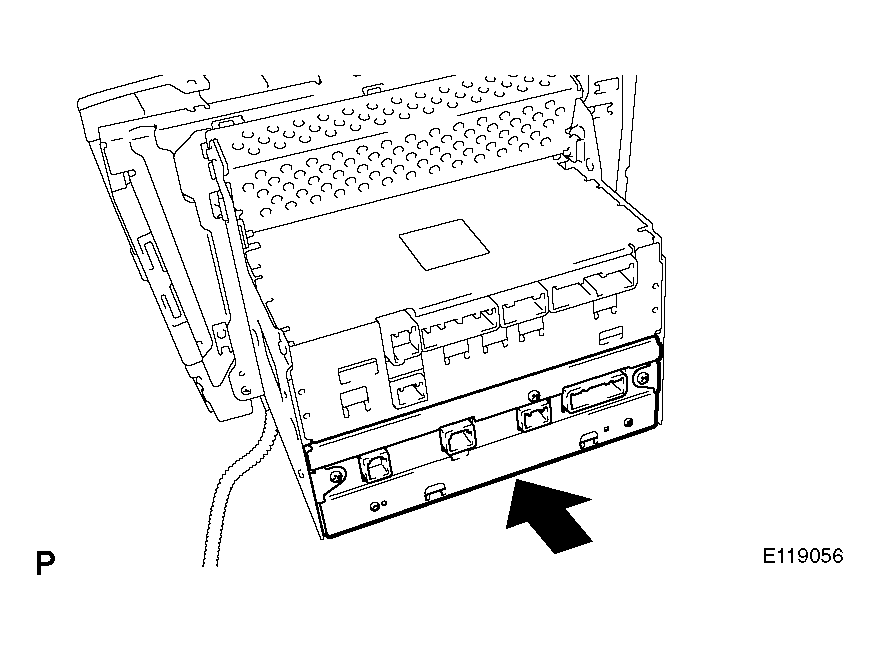

      Fig 1: Identifying Navigation ECU With Bolts
      G04050539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connectors.
  2. INSTALL MULTI-DISPLAY ASSEMBLY
  3. INSTALL NO. 2 RADIO BRACKET (See  INSTALLATION  )
  4. INSTALL NO. 1 RADIO BRACKET (See  INSTALLATION  )
  5. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (See  INSTALLATION  )
  6. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (See  INSTALLATION  )
  7. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See  INSTALLATION  )
  8. INSTALL CONSOLE BOX (See  INSTALLATION  )
  9. INSTALL CONSOLE BOX REGISTER ASSEMBLY (See  INSTALLATION  )
  10. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY (See  INSTALLATION  )
  11. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  INSTALLATION  )

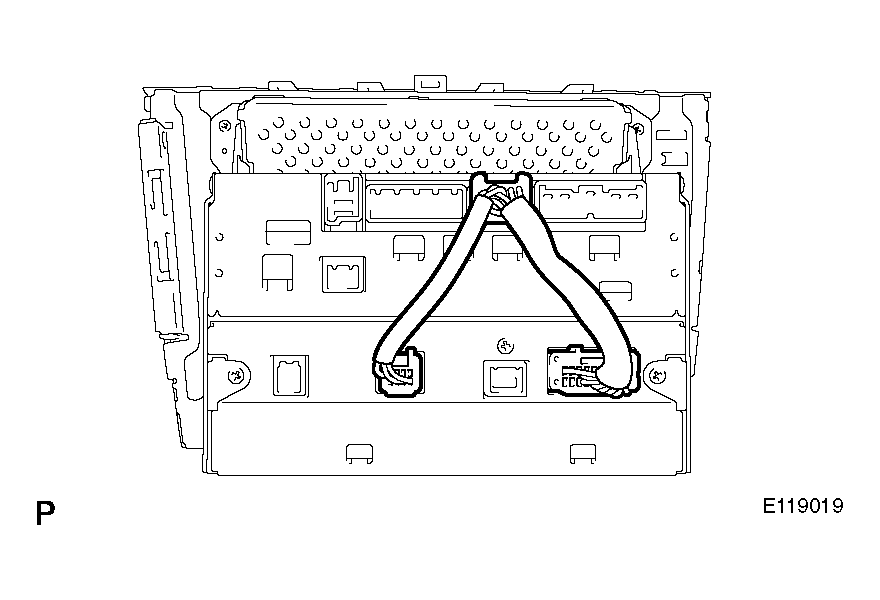

    Fig 2: Identifying Navigation ECU Connectors
    G04050540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  INSTALLATION  )
  13. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) (See  INSTALLATION  )
  14. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  INSTALLATION  )
  15. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  INSTALLATION  )
  16. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
  17. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
  18. INSERT MAP DISC
    1. Remove the clock assembly
    2. Turn the engine switch on (ACC).
    3. Insert the map disc.

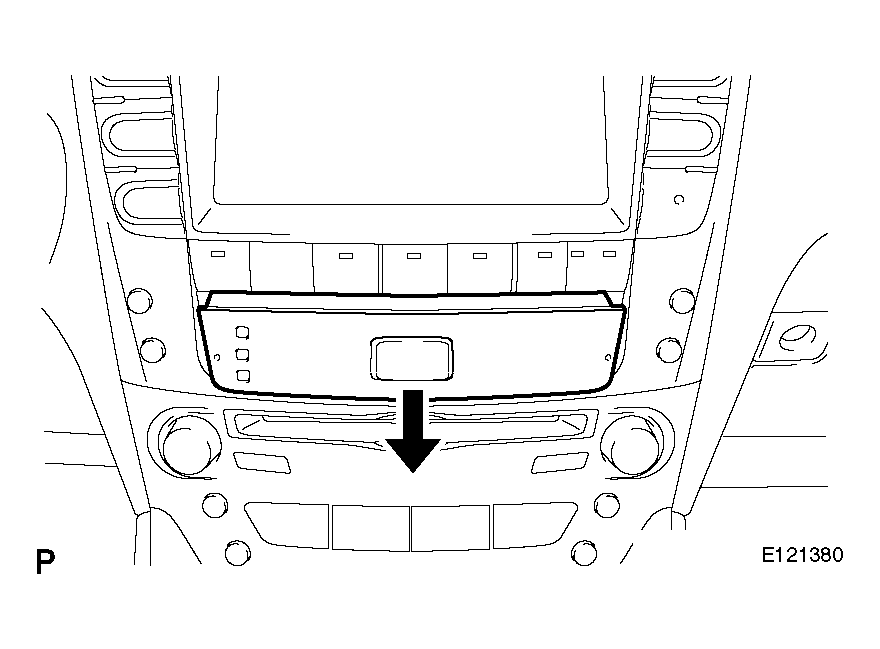

      Fig 3: Identifying Clock Assembly
      G04050541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Check that the wire harness is in the position shown in the illustration.

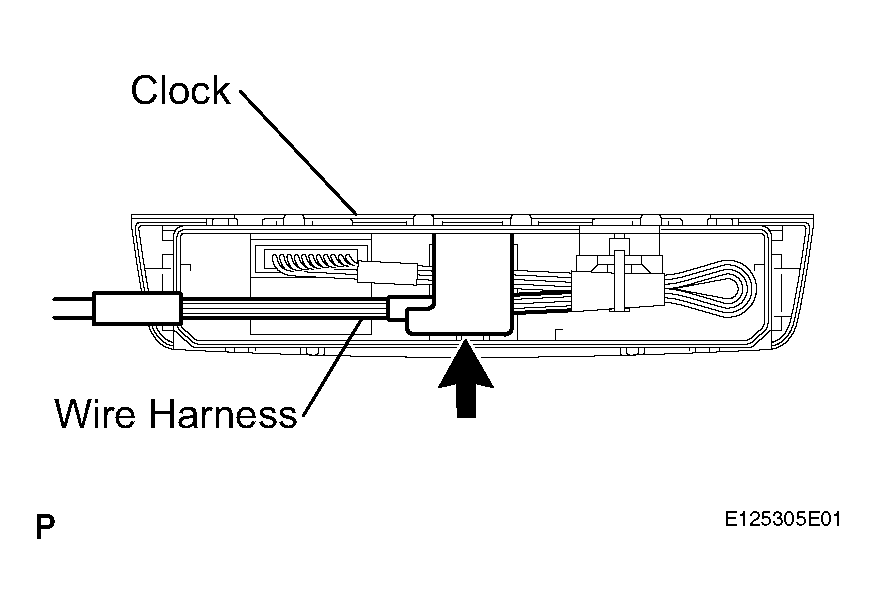

      Fig 4: Checking Wire Harness Is In Position
      G04050542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the clock assembly.
  19. ADJUST CLOCK

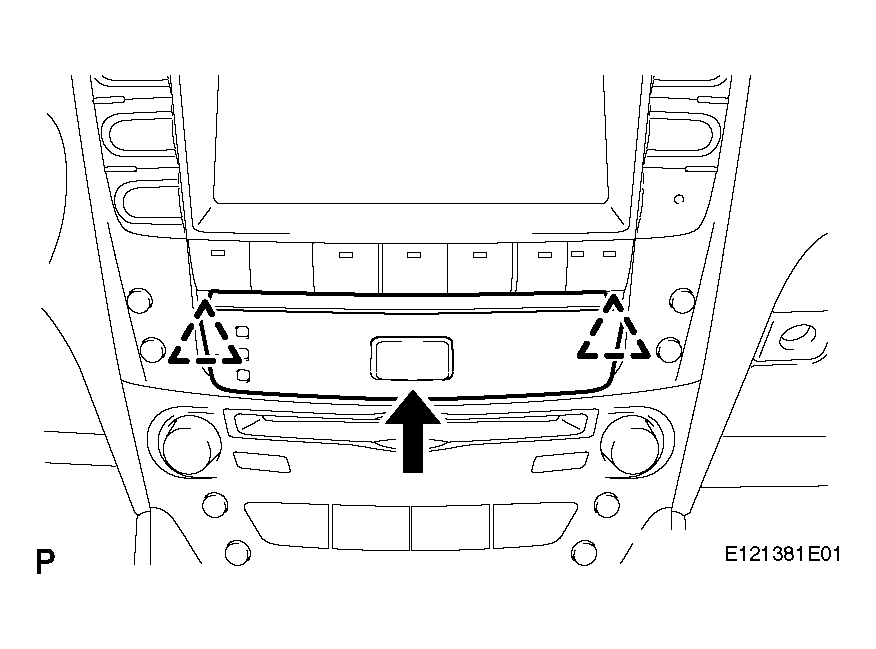

Fig 5: Identifying Clock
G04050543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
