AVC-LAN Circuit: Description

Each unit of the navigation system connected to the AVC-LAN (communication bus) transfers the signal of each switch by communication.

When a short to +B or short to ground occurs in this AVC-LAN, the navigation system will not function normally as the communication is discontinued.

1. INSPECT RADIO RECEIVER
   1. Disconnect the radio receiver connectors.
   2. Measure the resistance according to the value(s) in the table below.
      STANDARD RESISTANCE



      Tester connection	Condition	Specified condition
      ATX+ (J66-5) - ATX-(J66-15)	Always	60 to 80 Ω
      TX+ (J63-9) - TX-(J63-10)	Always	60 to 80 Ω

   Fig 1: Identifying Radio Receiver/CD-DVD Connectors & Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPLACE RADIO RECEIVER

   OK: Go to next step.

2. CHECK HARNESS AND CONNECTOR

   HINT:

   For details of the connectors, refer to "TERMINALS OF ECU " .

   1. Referring to the AVC-LAN wiring diagram below, check all AVC-LAN circuits.
      1. Disconnect all connectors in all AVC-LAN circuits.
      2. Check for an open or short in all AVC-LAN circuits.

         OK: There is no open or short circuit.

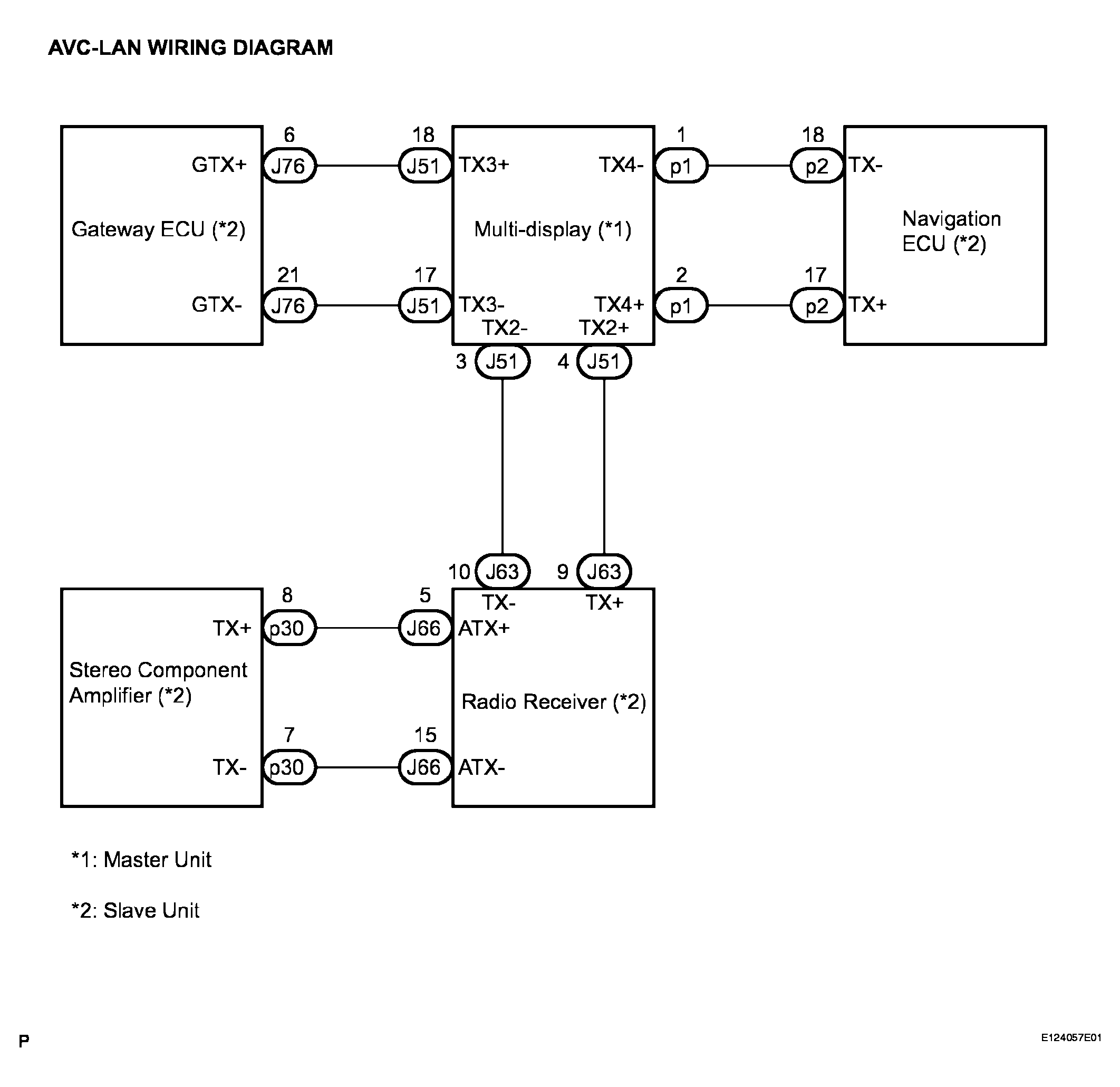

   Fig 2: AVC-LAN Wiring Diagram

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
