BLUETOOTH Tel Check Mode

HINT:

Illustration may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed area may not be shown exactly the same as on the actual vehicle.

1. ENTER DIAGNOSTIC MODE (See  DTC CHECK/CLEAR   )
2. BLUETOOTH TEL CHECK
   1. Select "Bluetooth TEL Check" from the "Diagnosis MENU" screen.

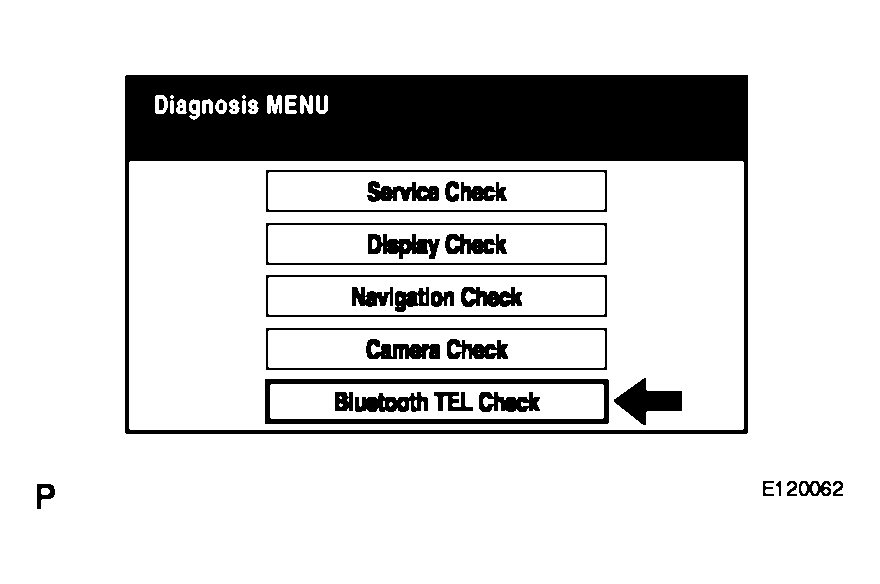

   Fig 1: Identifying Bluetooth Tel Check On Diagnosis Menu Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. BLUETOOTH CHECK
   1. Select "Bluetooth Check" from the "Bluetooth Handsfree Check Menu" screen.

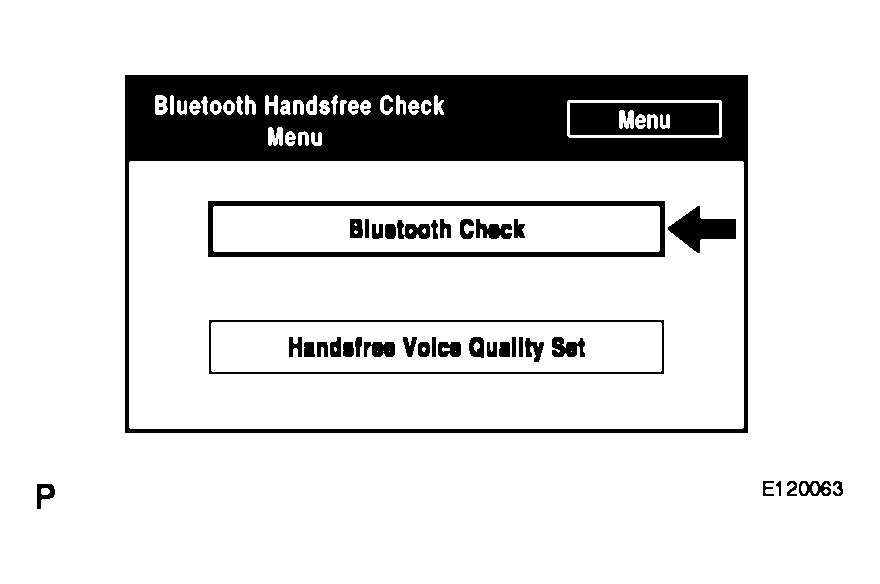

      Fig 2: Identifying Bluetooth Check On Bluetooth Handsfree Check Menu Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Select "Serial Communication Log" from the "Bluetooth Check Menu" screen.

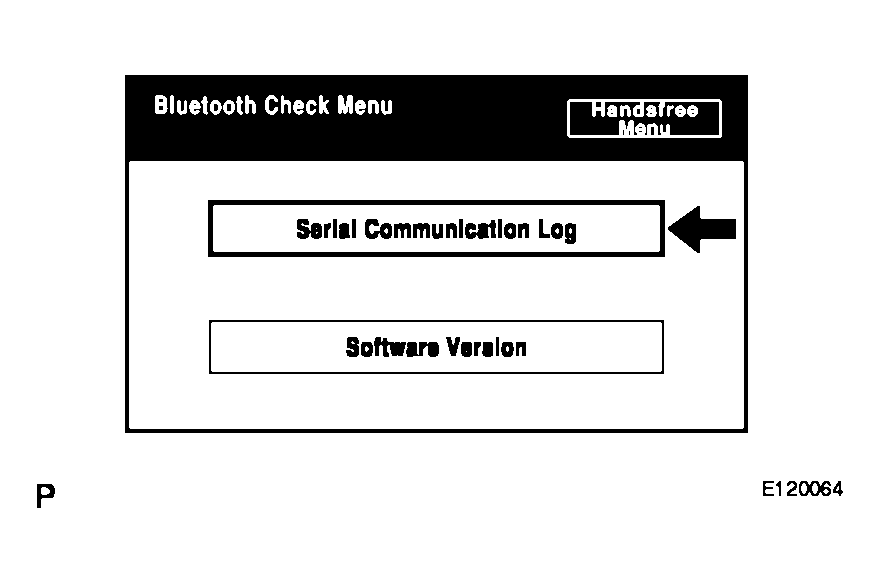

      Fig 3: Identifying Serial Communication Log On Bluetooth Check Menu Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. The communication log data in the display ECU are displayed on this screen.

         HINT:

         The displayed data can be used as a reference.

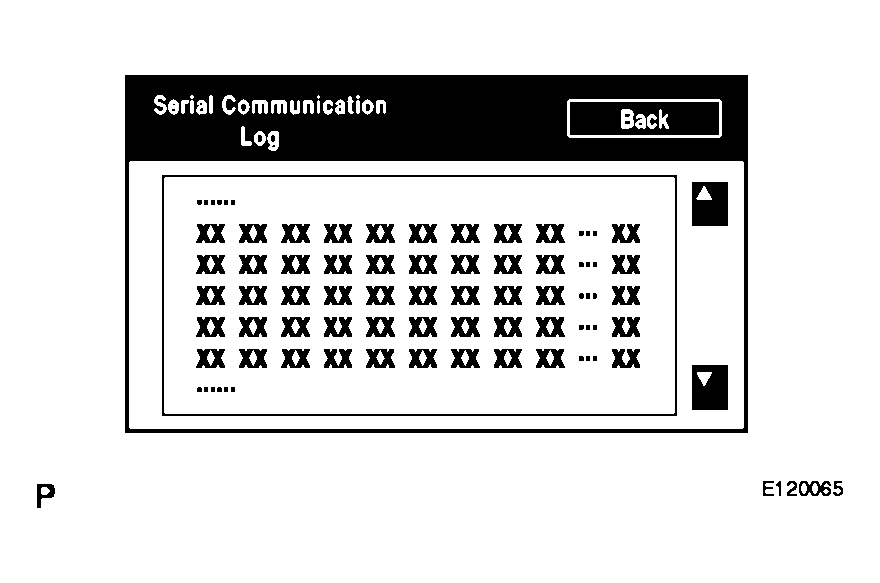

      Fig 4: Identifying Communication Log Data Displayed On Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Select "Software Version" from the "Bluetooth Check Menu" screen.

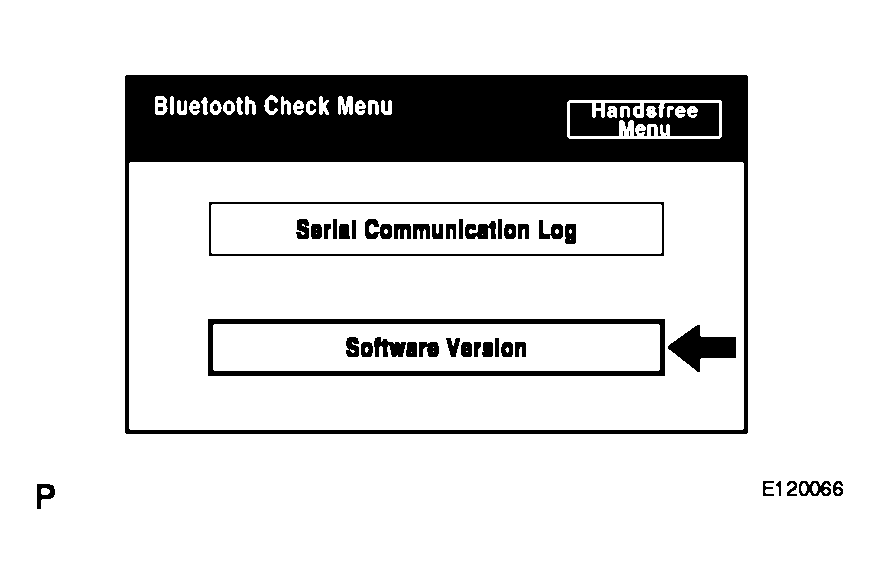

      Fig 5: Identifying Software Version From Bluetooth Check Menu Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Check the software version of the Bluetooth module.

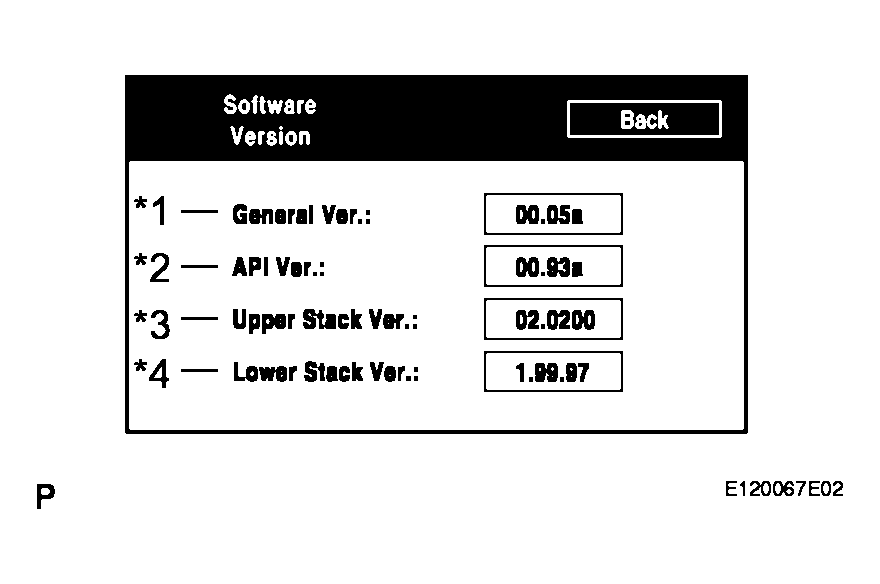

      Fig 6: Identifying Software Version On Bluetooth Module

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screen Description:



      Display	Contents
      General Version / *1	General software version of Bluetooth module If any of the API version, upper stack version, and low stack version is updated, the general version is upgraded.
      API Version / *2	API software version is displayed.
      Upper Stack Version / *3	Upper Stack version is displayed.
      Lower Stack Version / *4	Lower Stack version is displayed.

      HINT:

      This function is controlled by the built-in display ECU.

4. HANDSFREE VOICE QUALITY SET
   1. Select "Handsfree Voice Quality Set" from the "Bluetooth Handsfree Check Menu" screen.

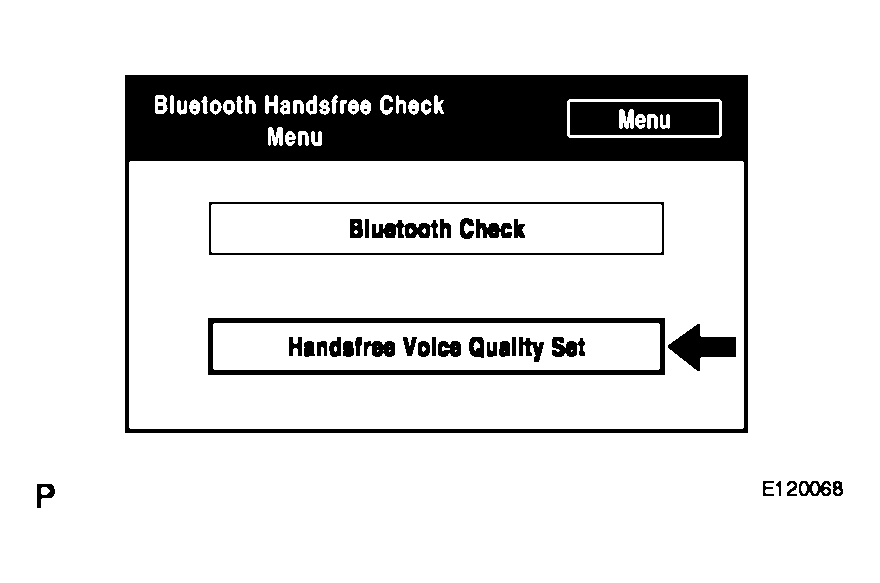

      Fig 7: Identifying Handsfree Voice Quality Set On Bluetooth Handsfree Check Menu Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Check the handsfree voice level.

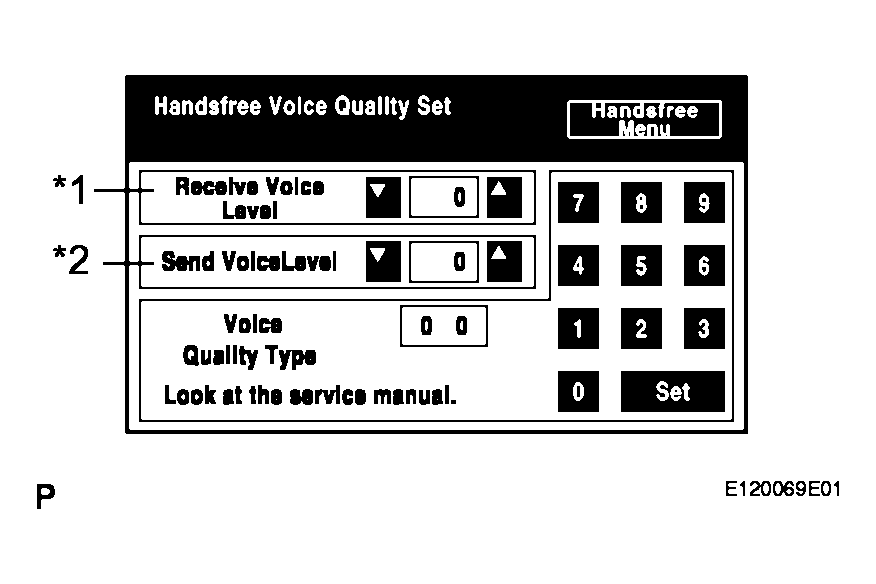

      Fig 8: Identifying Handsfree Menu

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   SCREEN DESCRIPTION



   Display	Contents
   Received voice level adjustment / *1	Setting possible for the voice level received from Bluetooth compatible phones.
   Sent voice level adjustment / *2	Setting possible for the voice sent to Bluetooth compatible phones.

   HINT:

   This function is controlled by the built-in display ECU.

   NOTE: "Voice Quality Type" should not be changed.
