Cannot Call in a Certain Place

CHECK SURROUNDING CONDITIONS
1. Check if the cellular phone can make calls in a certain place.
  OK: It can make calls.
NG: END (CELLULAR PHONES CAN ONLY FUNCTION IN CELLULAR SERVICE AREAS)

OK: Go to next step.
CHECK RECEPTION
1. Enter the "Information" screen by pressing the "INFO" switch.
2. Select "Telephone".

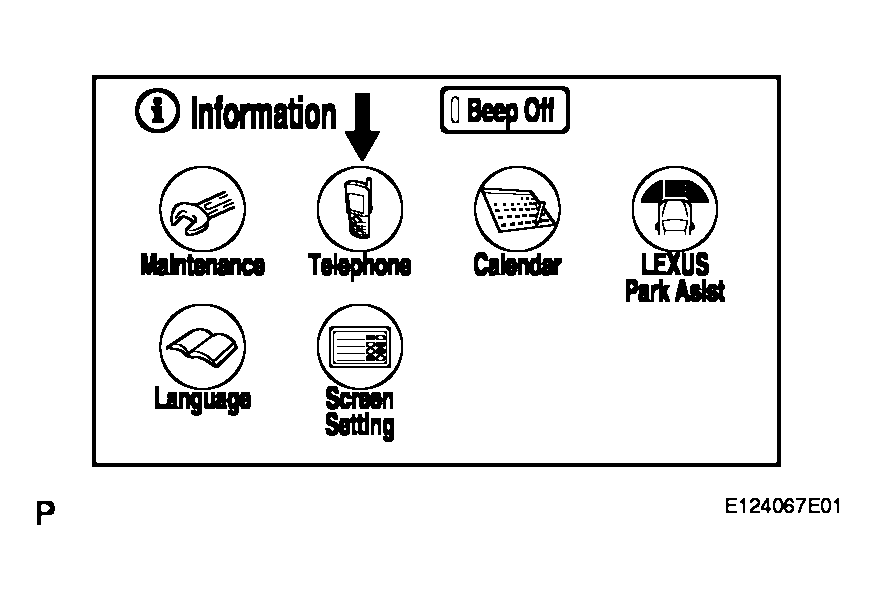

  Fig 1: Identifying Telephone On Information Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the Bluetooth connection indicator (BT indicator).

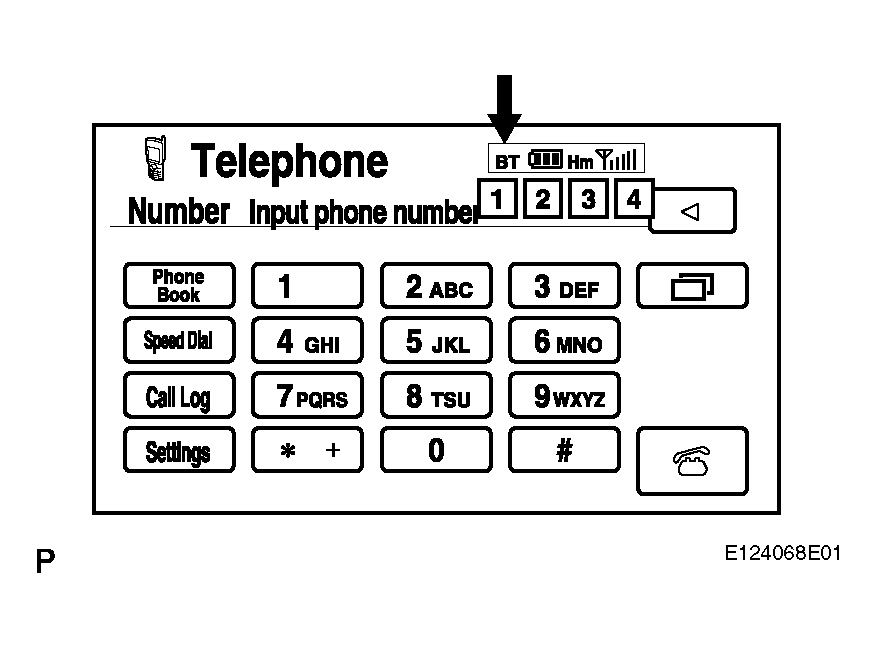

Fig 2: Checking Bluetooth Connection Indicator (BT Indicator)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

RESULT

Condition	Procedure
Yellow color	Bring the cellular phone to a location where the BT mark turns blue.
Blue color	Replace multi-display.
No connection mark is displayed	Select a registered cellular phone or register a Bluetooth compatible phone.

END
