MAP Disc cannot be Ejected

1. Turn the engine switch on (ACC).
2. Keep pressing the MAP eject switch for 5 seconds and check if the disc is ejected by forced ejection.

   OK: The disc is ejected.

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

OK: Go to next step.

1. Check that the map disc is not deformed or cracked.

   OK: No deformations or cracks on the map disc.

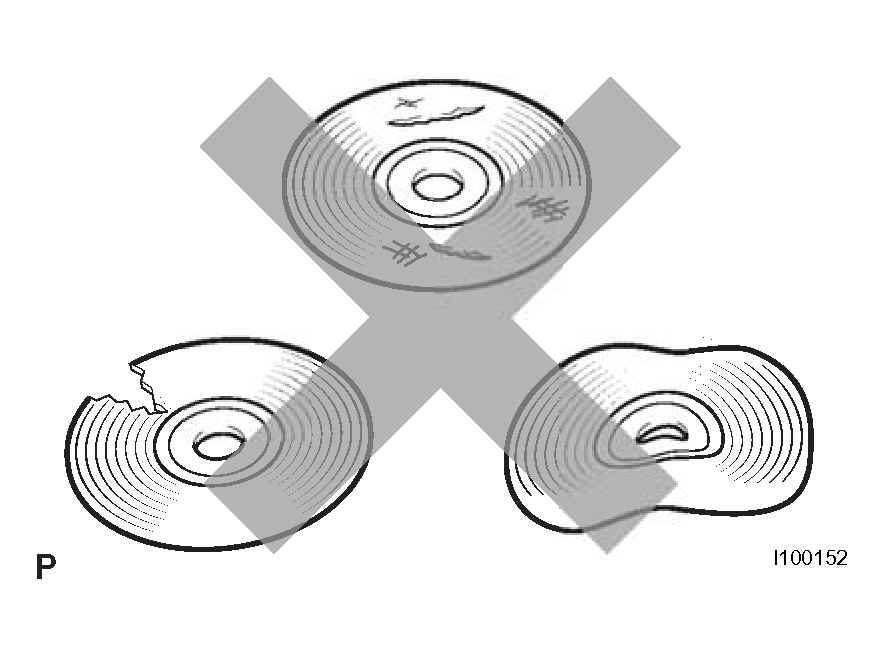

   Fig 1: Ensure CD Is Not Cracked Or Deformed

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE MAP DISC

OK: END
