Certification ECU Power Source Circuit: Wiring Diagram

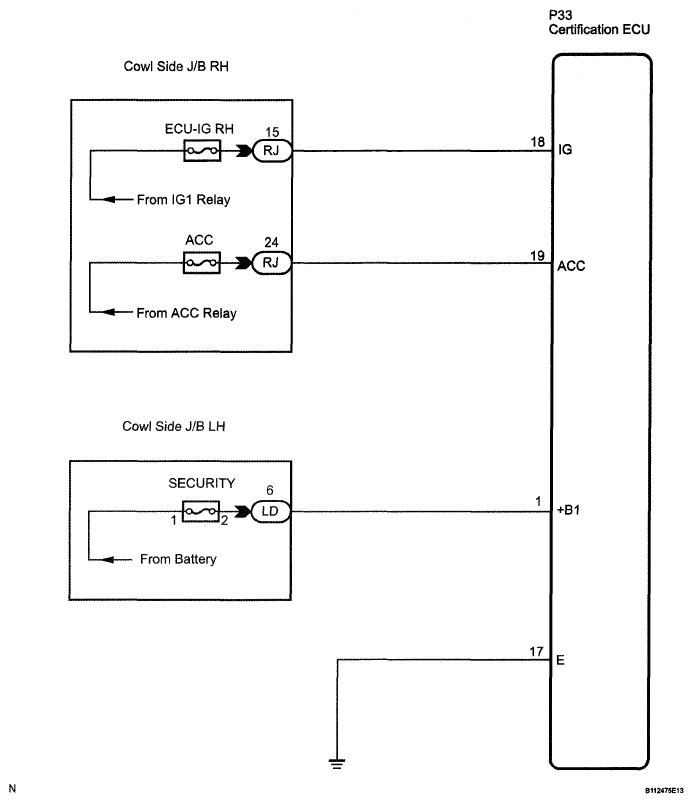

Fig 1: Certification ECU Power Source Circuit - Wiring Diagram
G05320703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
