Inspection Procedure

  1. INSPECT FUSE (SECURITY)
    1. Remove the SECURITY fuse from the cowl side junction block RH.
    2. Measure the resistance of the fuse.

    Standard resistance:

    Below 1 Ω

    NG : REPLACE FUSE

    OK: Go to next step

  2. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - BATTERY)
    1. Disconnect the P33 ECU connector.
    2. Measure the voltage according to the value(s) in TERMINAL CONNECTION SPECIFIED CONDITION TABLE  .

    Standard voltage

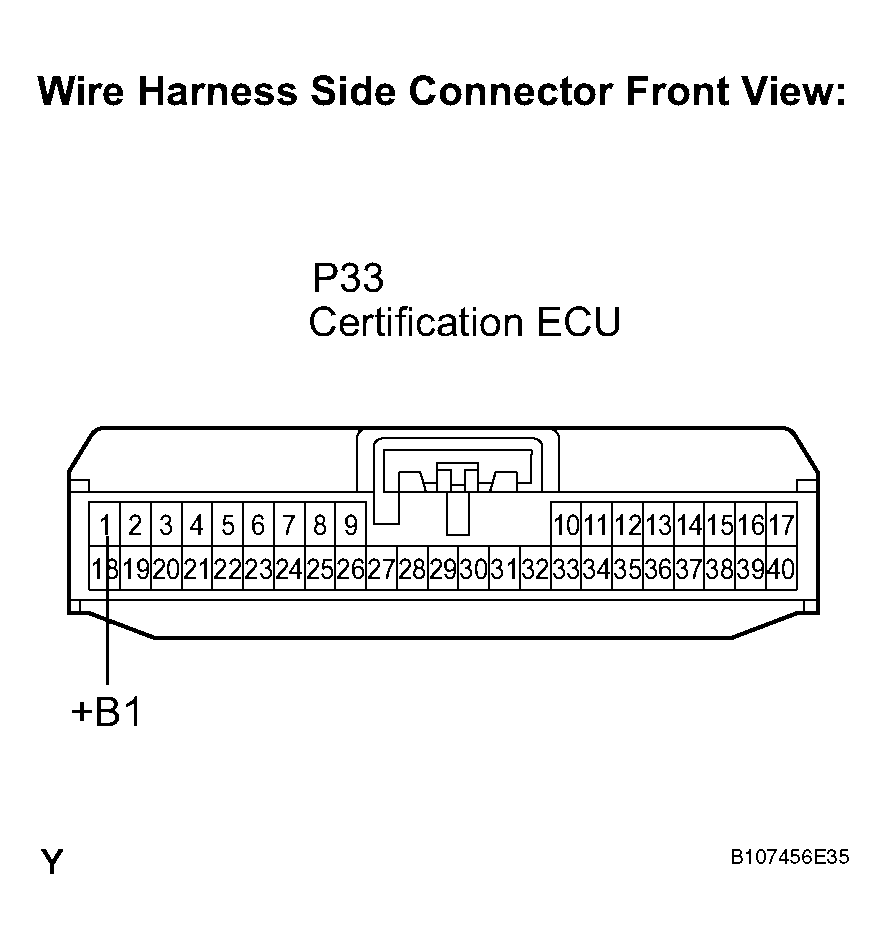

    Fig 1: Identifying P33 Certification ECU Connector
    G04049185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TERMINAL CONNECTION SPECIFIED CONDITION TABLE

    Tester Connection Condition Specified Condition
    P33-1 (+B1) - Body ground Always 10 to 14 V

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - BODY GROUND)
    1. Measure the resistance according to the value(s) in TERMINAL CONNECTION SPECIFIED CONDITION TABLE  .

    Standard resistance

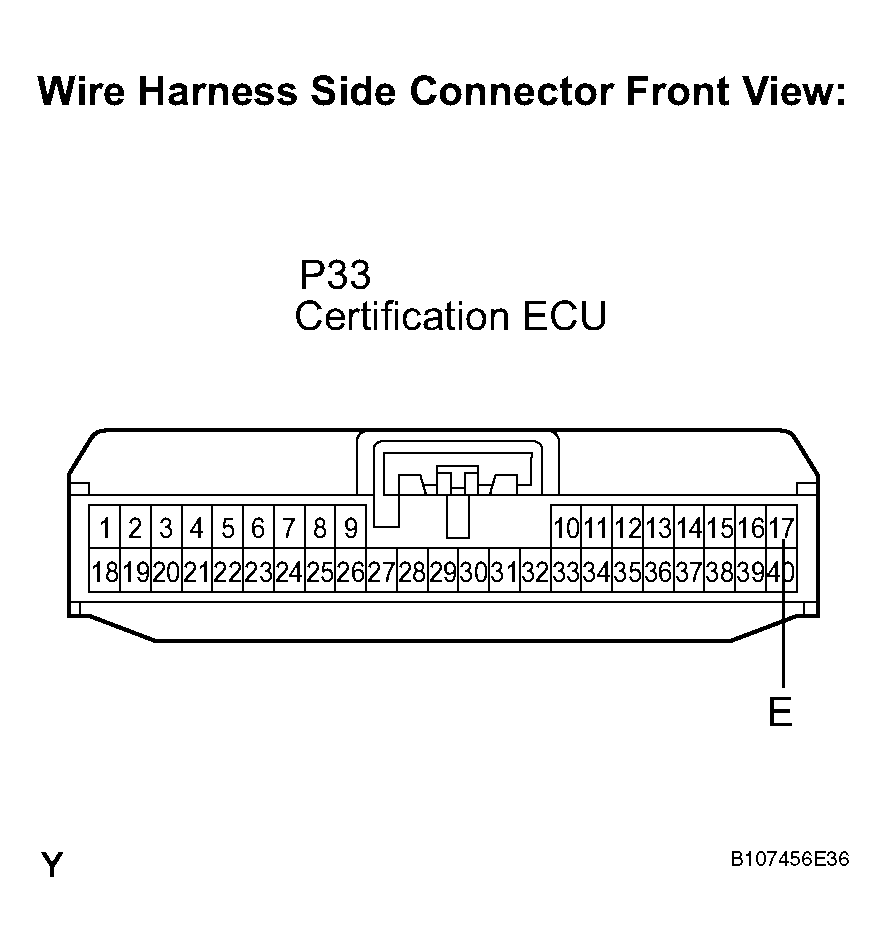

    Fig 2: Identifying P33 Certification ECU Connector
    G04049186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TERMINAL CONNECTION SPECIFIED CONDITION TABLE

    Tester Connection Condition Specified Condition
    P33-17 (E) - Body ground Always Below 1 ohms

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
