DTC Check/Clear

CHECK DTC
1. Connect the intelligent tester (with CAN VIM) to the DLC3.

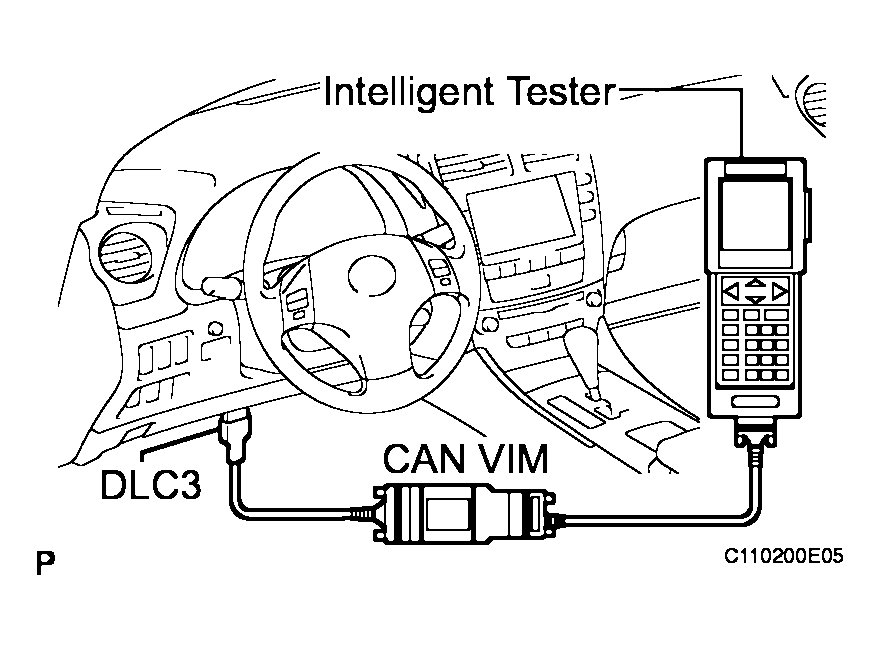

  Fig 1: Connecting Intelligent Tester To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the engine switch on (IG).
3. Read the DTCs by following the directions on the tester's screen.
  HINT:

  Refer to the intelligent tester operator's manual for further details.
CLEAR DTC
1. Connect the intelligent tester (with CAN VIM) to the DLC3.

  Fig 2: Connecting Intelligent Tester To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the engine switch on (IG).
3. Erase the DTCs by following the directions on the tester's screen.
  HINT:

  Refer to the intelligent tester operator's manual for further details.
