Engine Immobilizer System: Registration

  1. DESCRIPTION OF CODE REGISTRATION

    HINT:

    • ID codes are the same as recognition codes for the wireless transmitter and the engine immobilizer function. Registering an ID code enables the smart access system with push-button start, the wireless door lock control function and the engine immobilizer function to be operated.
    • Code registration is needed when the certification ECU, ID code box, steering lock ECU or key is replaced with a new one.
    1. PROCEDURE "1"

      The vehicle with the smart access system with push-button start system does not have a key slot. Therefore, hold the key close to the engine switch to register the key, as shown in Fig 1 .

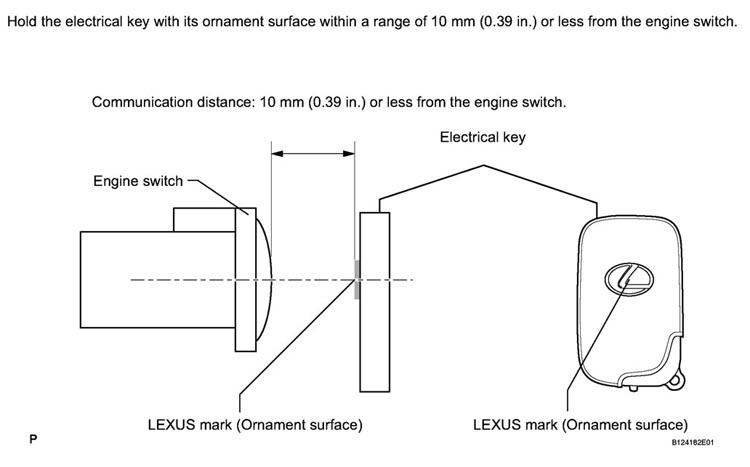

      Fig 1: Identifying Communication Distance Engine Switch
      G04049149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. PART REPLACEMENT AND KEY REGISTRATION PROCEDURES
    1. The following table shows ECU replacement and key registration procedures in case the malfunctioning ECU has been specified after troubleshooting the smart access system with push-button start.

      HINT:

      • The following procedures indicated in DIAGNOSIS PROCEDURE TABLE  require the use of the intelligent tester: New key ID registration Additional key ID registration Key ID erasure ECU code registration
      • If all of the registered keys are not available, replacement of the ID code box is also required.
      • A maximum of 7 keys can be registered.
    DIAGNOSIS PROCEDURE TABLE

    Part to be replaced Condition Procedure Reference
    Certification ECU Customer has brought all keys Replace certification ECU -
    Reregister all keys (new key ID registration) PROCEDURE "B"
    Some keys are lost Key ID codes can be registered and erased Erase key codes (key ID erasure) PROCEDURE "D"
    Perform additional key registration procedure (additional key ID registration) PROCEDURE "C"
    Replace certification ECU -
    Reregister all keys (new key ID registration)
    HINT:
    If some keys are not registered during above steps, they will be disabled because they cannot be registered later    		 PROCEDURE "B"
    Key ID codes cannot be either registered or erased Replace certification ECU -
    Replace ID code box -
    Reregister all keys (new key ID registration)
    HINT:
    If key codes cannot be erased or additional keys cannot be registered due to a malfunction in certification ECU, replace ID code box and certification ECU. If some keys are not registered during above steps, they will be disabled because they cannot be registered later    		 PROCEDURE "A"
    ECU communication ID registration PROCEDURE "F"
    ID code box At least 1 key is available Replace ID code box -
    Register recognition codes in ECUs (ECU code registration) PROCEDURE "E"
    ECU communication ID registration PROCEDURE "F"
    All keys are lost Replace ID code box -
    Replace certification ECU -
    Reregister all keys (new key ID registration)
    HINT:
    If some keys are not registered during above steps, they will be disabled because they cannot be registered later    		 PROCEDURE "A"
    ECU communication ID registration PROCEDURE "F"
    Steering lock ECU Customer has brought at least 1 key Replace steering lock ECU -
    Register recognition codes in ECUs (ECU code registration) PROCEDURE "E"
    All keys are lost Replace steering lock ECU -
    Replace certification ECU -
    Replace ID code box -
    Reregister all keys (new key ID registration)
    HINT:
    If some keys are not registered during above steps, they will be disabled because they cannot be registered later    		 PROCEDURE "A"
    ECU communication ID registration PROCEDURE "F"
    Power Source Control ECU No condition required Replace power source control ECU -
    ECM No condition required Replace ECM -
    ECU communication ID registration PROCEDURE "F"
    Key Customer has brought at least 1 key Using remaining key, erase lost key (key ID erasure) PROCEDURE "D"
    Register additional keys as necessary (additional key ID registration) PROCEDURE "E"
    All keys are lost Replace certification ECU -
    Replace ID code box -
    Register all keys (new key ID registration)
    HINT:
    If customer brings lost keys at later date, they can be registered using additional key ID registration function.    		 PROCEDURE "A"
    ECU communication ID registration PROCEDURE "F"
  3. KEY REGISTRATION PROCEDURES
    1. PROCEDURE "A"

      New key ID registration (when replacing certification ECU and ID code box, or certification ECU, ID code box and steering lock ECU)

      DIAGNOSIS PROCEDURE TABLE

      Process Procedure
      Start of registration
      1. Connect intelligent tester (with CAN VIM) to DLC3
      2. Turn engine switch on (IG)
      3. Select "SMART ACCESS / ID UTILITY / SMART CODE REG" from tester menu
      HINT:The engine switch cannot be turned on (IG) more than 10 times. After connecting tester, turn tester on while turning driver side door courtesy light switch on and off repeatedly at 1.5 second intervals or less to continue key registration procedure
      Confirmation of ECU code Perform operation according to prompts on tester screen
      HINT:
      The mode is automatically selected by tester, new registration mode or add more
      Verification of unregistered key (1) Hold unregistered key close to engine switch (For details, refer to PROCEDURE 1)
      Confirm that wireless door lock buzzer sounds. Place unregistered key on front passenger side seat
      Confirm that wireless door lock buzzer sounds
      Registration of ID code Perform operation according to prompts on tester screen
      End of registration Finish new key ID code registration
      (1) Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform registration procedures from process 1 again. Make sure that only 1 key is in the cabin during registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.
    2. PROCEDURE "B"

      New key ID registration (when replacing certification ECU)

      DIAGNOSIS PROCEDURE TABLE

      Process Procedure
      Start of registration
      1. Connect intelligent tester (with CAN VIM) to DLC3
      2. Turn engine switch on (IG)
      3. Select "SMART ACCESS / ID UTILITY / SMART CODE REG" from tester menu
      HINT:The engine switch cannot be turned on (IG) more than 10 times. After connecting tester, turn tester on while turning driver side door courtesy light switch on and off repeatedly at 1.5 second intervals or less to continue key registration procedure
      Confirmation of ECU code Perform operation according to prompts on tester screen
      HINT:
      The mode is automatically selected by tester, new registration mode or add mode
      Confirmation of all registered keys (1) Hold unregistered key close to engine switch (For details, refer to PROCEDURE 1)
      Confirm that wireless door lock buzzer sounds
      Confirmation of ECU code Perform operation according to prompts on tester screen
      Verification of unregistered key (2) Hold unregistered key close to engine switch (For details, refer to PROCEDURE 1)
      Confirm that wireless door lock buzzer sounds. Place unregistered key on front passenger side seat
      Confirm that wireless door lock buzzer sounds
      Registration of ID code Perform operation according to prompts on tester screen
      End of registration Finish new key ID code registration
      (1) Repeat this process for each key registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform registration procedures from process 1 again. If performing the key confirmation procedure for a key, the security indicator comes on and remains on until all the keys are confirmed.
      (2) Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform registration procedures from 1 again. Make sure that only 1 key is in the cabin during registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.
    3. PROCEDURE "C"

      Additional key ID registration

      DIAGNOSIS PROCEDURE TABLE

      Process Procedure
      Start of registration
      1. Connect intelligent tester (with CAN VIM) to DLC3
      2. Turn engine switch on (IG)
      3. Select "SMART ACCESS / ID UTILITY / SMART CODE REG" from tester menu
      Confirmation of registered key (1) Perform operation according to prompts on intelligent tester screen
      HINT:
      The mode is automatically selected by tester, new registration mode or add mode
      Hold unregistered key close to engine switch (For details, refer to PROCEDURE 1)
      Confirm that wireless door lock buzzer sounds once
      Confirmation of ECU code Perform operation according to prompts on tester screen
      Verification of unregistered key (2) Hold unregistered key close to engine switch (For details, refer to PROCEDURE 1)
      Confirm that wireless door lock buzzer sounds. Place unregistered key on front passenger side seat
      Confirm that wireless door lock buzzer sounds
      Registration of ID code Perform operation according to prompts on tester screen
      End of registration Finish key ID code registration
      (1) Perform this process for one of the keys registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform registration procedures from process 1 again.
      (2) Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform registration procedures from 1 again. Make sure that only 1 key is in the cabin during registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.
    4. PROCEDURE "D"

      Key ID erasure

      HINT:

      Erase all registered key codes except one.

      DIAGNOSIS PROCEDURE TABLE

      Process Procedure
      Start of erasure
      1. Connect intelligent tester (with CAN VIM) to DLC3
      2. Turn engine switch on (IG)
      3. Select "SMART ACCESS / ID UTILITY / SMART CODE ERS" from tester menu
      Confirmation of registered key (1) Perform operation according to prompts on intelligent tester screen
      Hold unregistered key close to engine switch (For details, refer to PROCEDURE 1)
      Confirm that wireless door lock buzzer sounds once
      Confirmation of ECU code Perform operation according to prompts on tester screen
      Erasure of ID code Perform operation according to prompts on tester screen
      End of erasure Finish key ID code erasure
      (1) Perform this process for one of the keys registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform erasure procedures from process 1 again.
    5. PROCEDURE "E"

      ECU code registration

      DIAGNOSIS PROCEDURE TABLE

      Process Procedure
      Start of registration
      1. Connect intelligent tester (with CAN VIM) to DLC3
      2. Turn engine switch on (IG)
      3. Select "SMART ACCESS / ID UTILITY / ECU COMM ID REG / ID Code Box and Steering Lock" from tester menu
      Confirmation of registered key (1) Hold unregistered key close to engine switch (For details, refer to PROCEDURE 1)
      Confirm that wireless door lock buzzer sounds once
      Erasure of ECU code Perform operation according to prompts on tester screen
      End of registration Finish ECU code registration
      (1) Perform this process for one of the keys registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform erasure procedures from process 1 again.
    6. PROCEDURE "F"

      ECU communication ID registration

      NOTE:
      • The ECU COMMUNICATION ID should be registered when the ID code box and/or the ECM is replaced in order to match these ECM COMMUNICATION ID.
      • The engine cannot be started unless the ECM COMMUNICATION ID matches.

    Register the ECU communication ID.

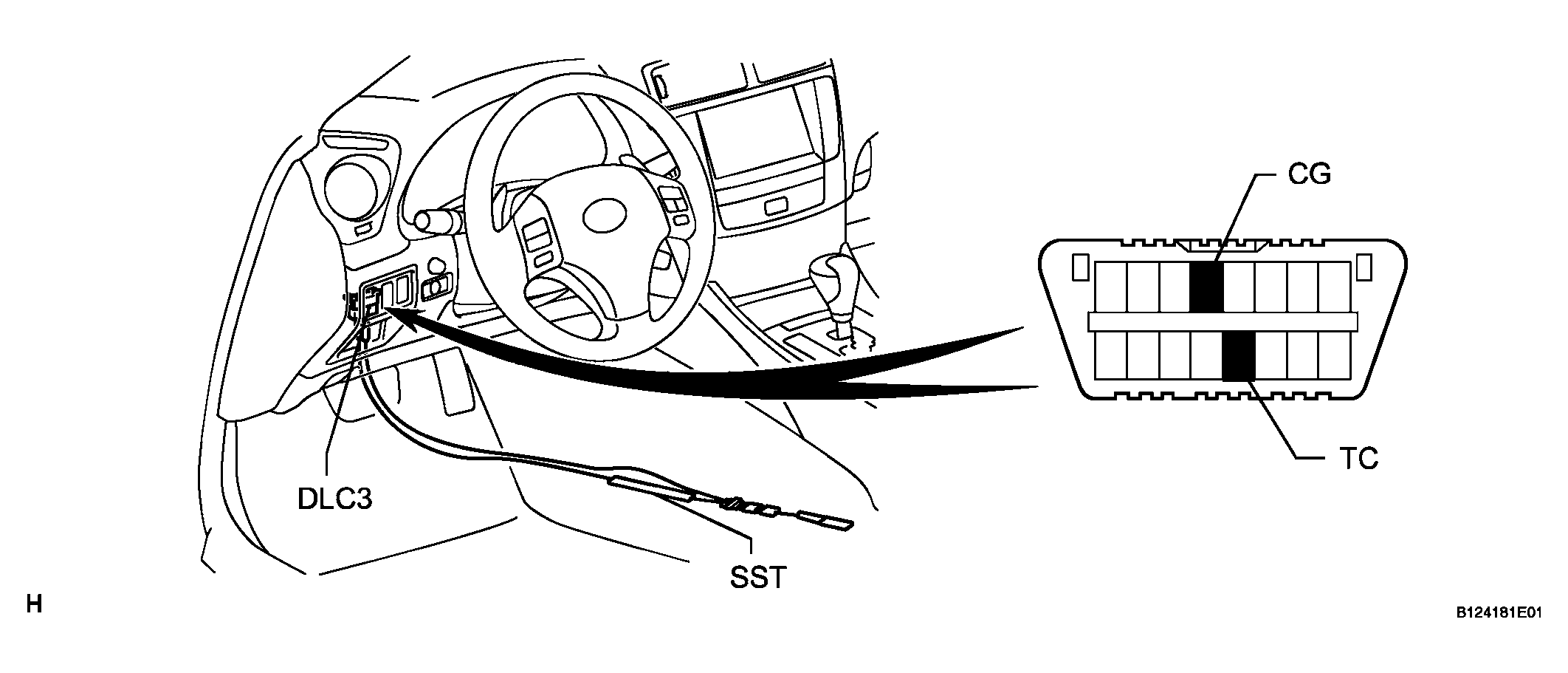

    Fig 2: Connecting Terminals TC & CG Of DLC3
    G04049150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using SST, connect terminals TC and CG of the DLC3.

      SST 09843-18040

    2. Turn the engine switch on (IG) and leave it for 30 minutes.

      HINT:

      Do not start the engine.

    3. Turn the engine switch off and disconnect terminals TC and CG.
    4. Check that the engine starts.
