Seat Memory Switch (For Rear Side)

INSPECTION

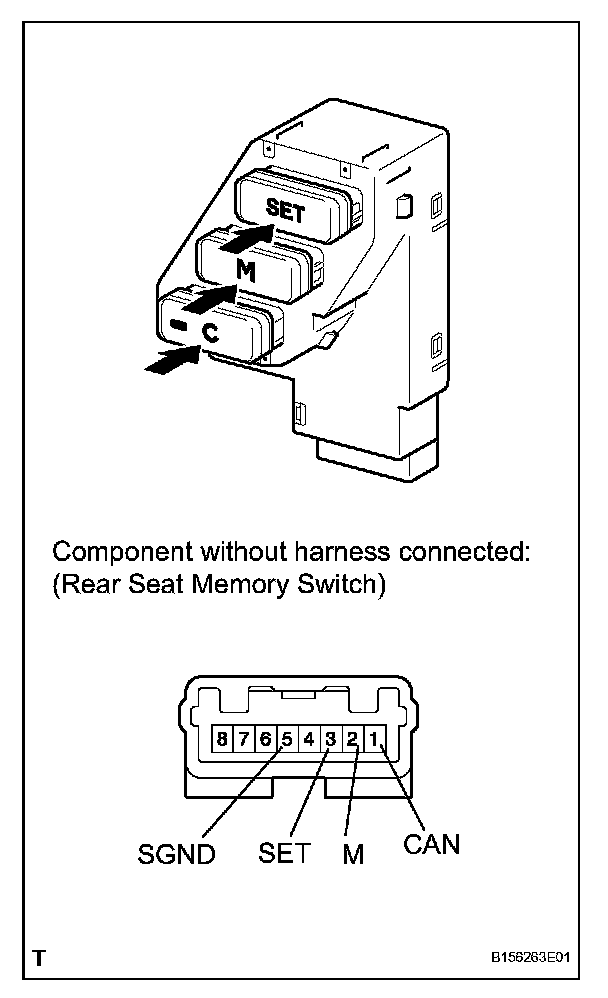

1. INSPECT REAR SEAT MEMORY SWITCH LH

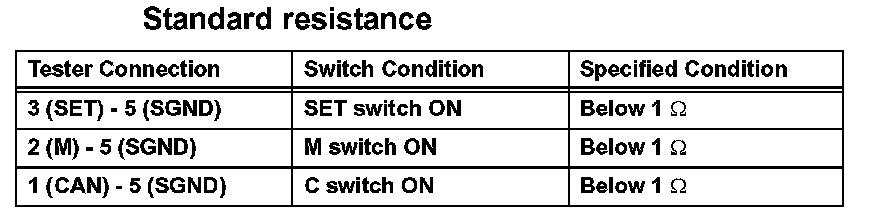

a. Measure the resistance between the terminals when the switch is operated.





If the result is not as specified, replace the switch.

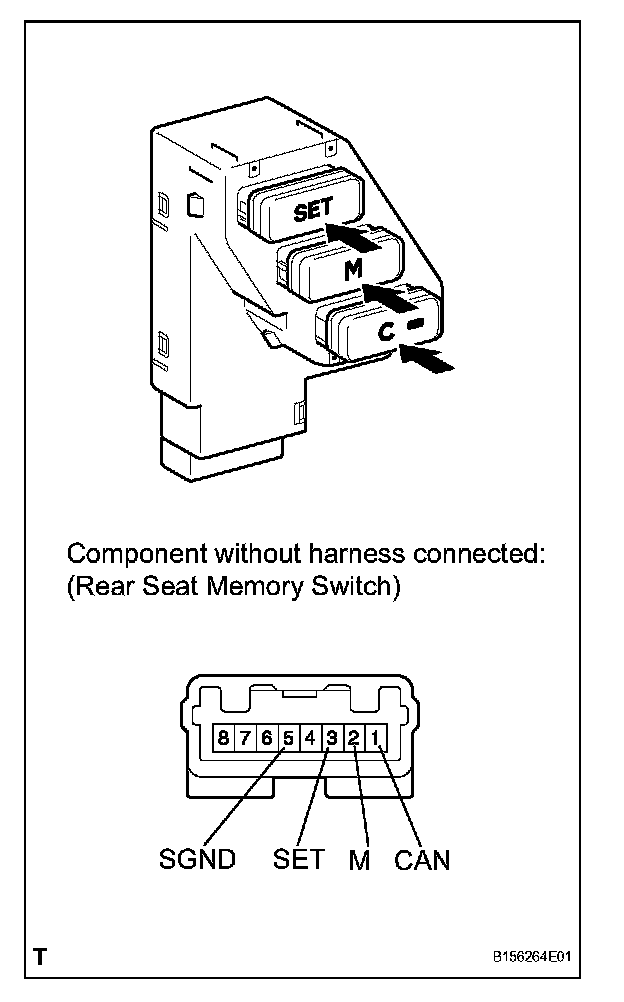

2. INSPECT REAR SEAT MEMORY SWITCH RH

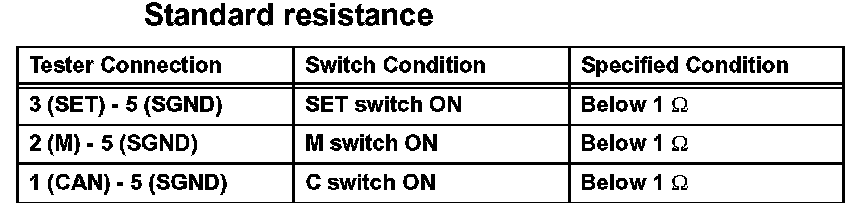

a. Measure the resistance between the terminals when the switch is operated.





If the result is not as specified, replace the switch.
