Level Control Solenoid Valve

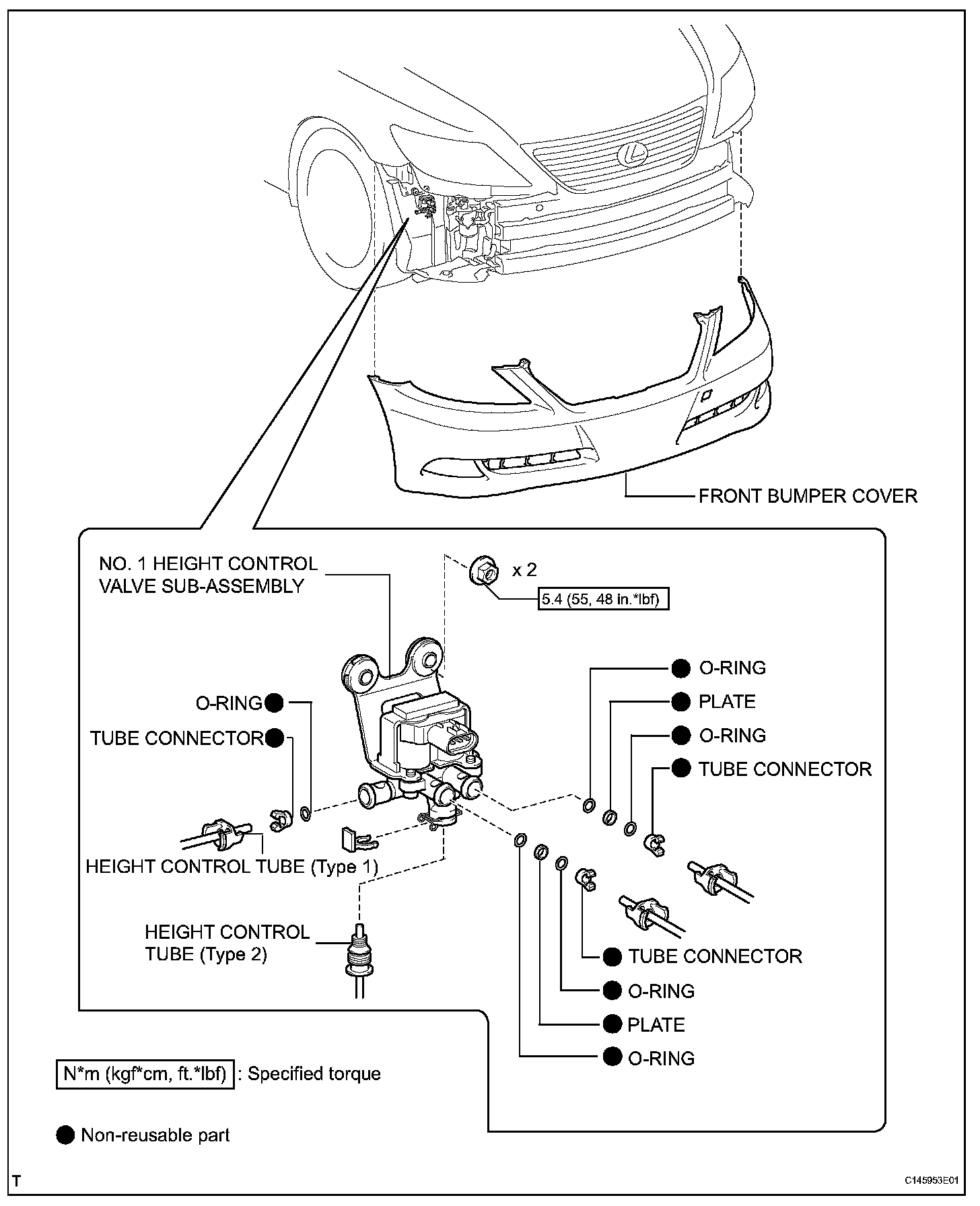

Height Control Valve (for Front Side):

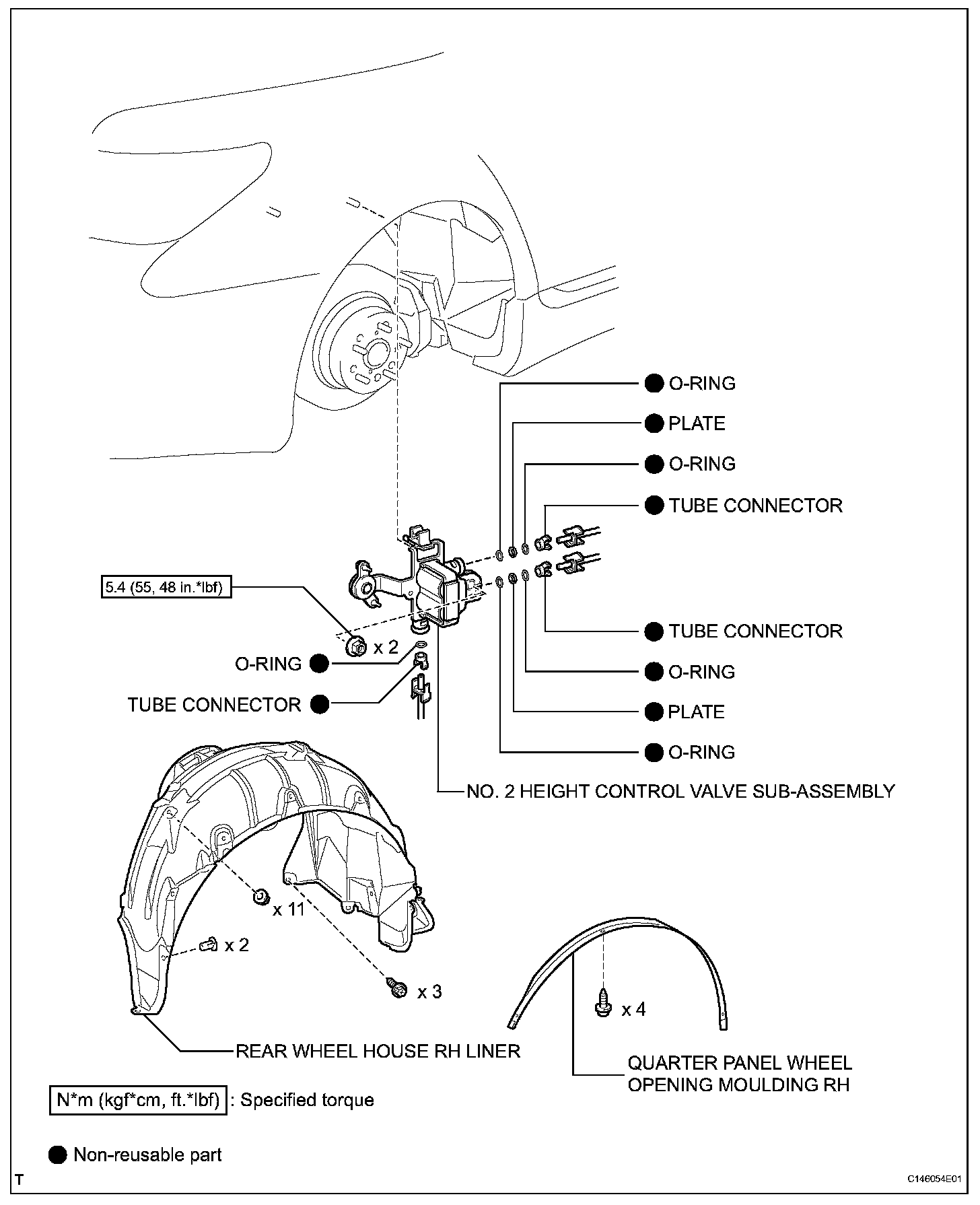

Height Control Valve (for Rear Side):
