System Diagram

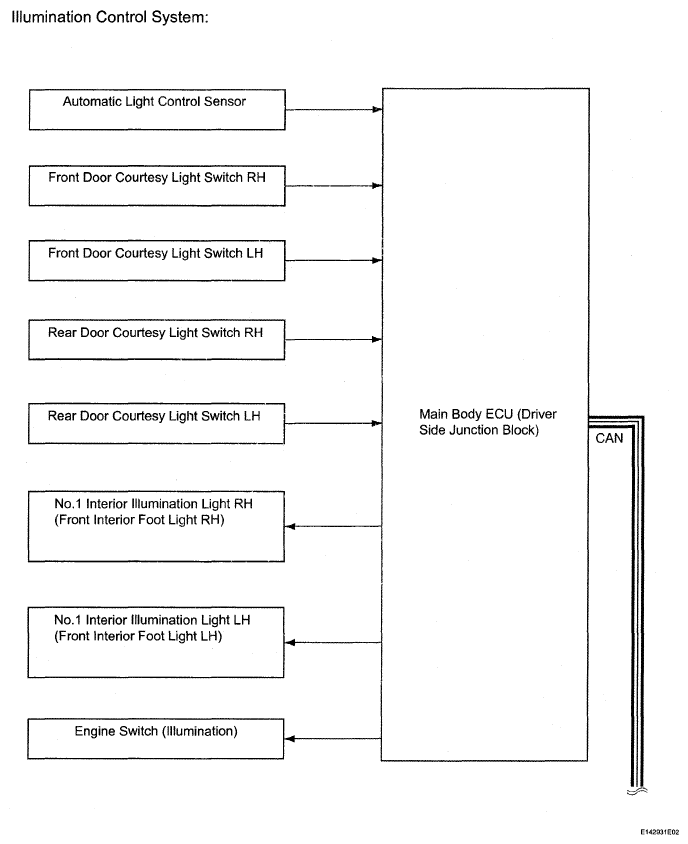

Fig 1: Front Lighting System - System Diagram (1 Of 6)
G04944599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

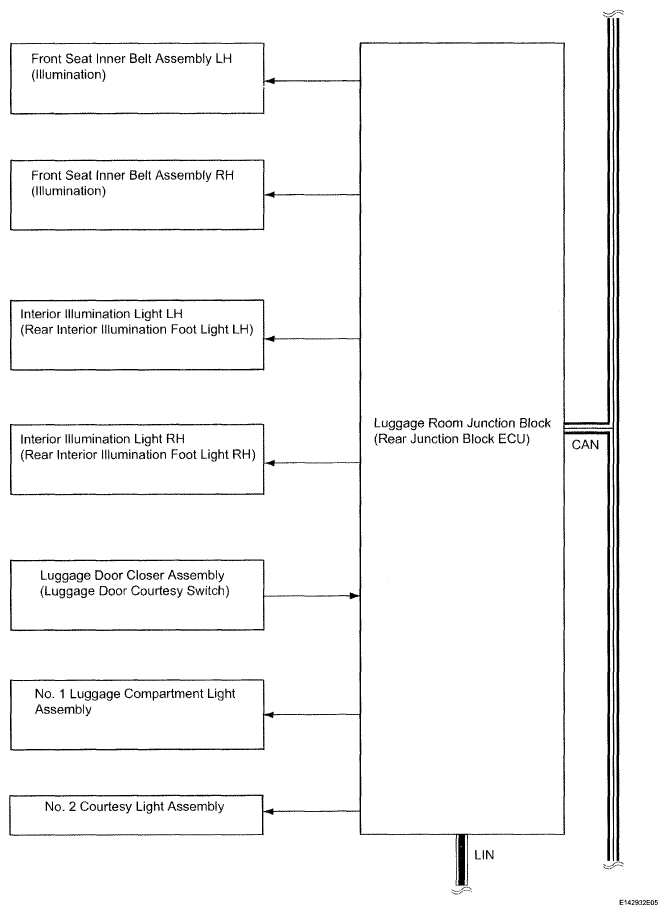

Fig 2: Front Lighting System - System Diagram (2 Of 6)
G04944600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

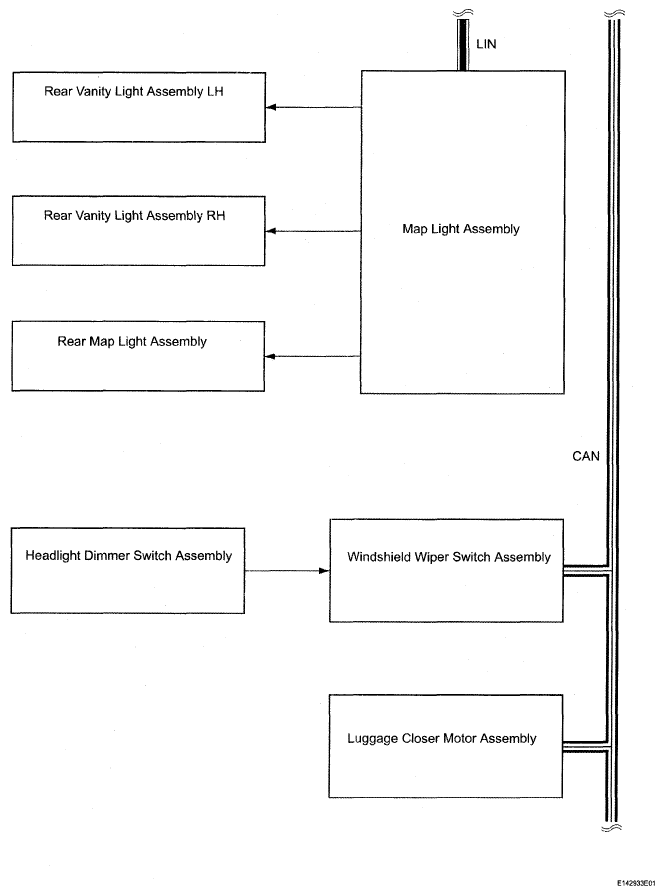

Fig 3: Front Lighting System - System Diagram (3 Of 6)
G04944601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

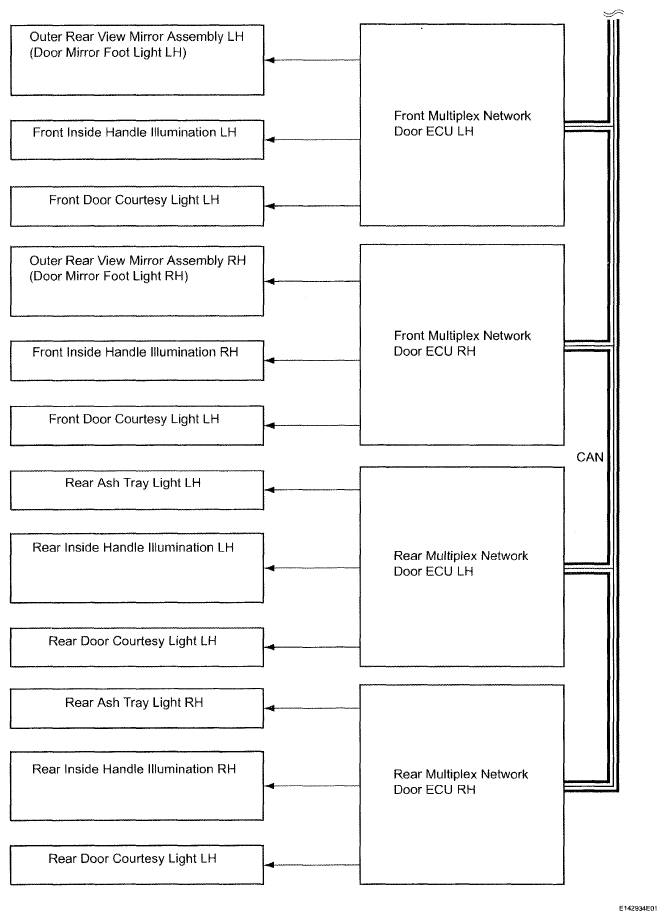

Fig 4: Front Lighting System - System Diagram (4 Of 6)
G04944602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

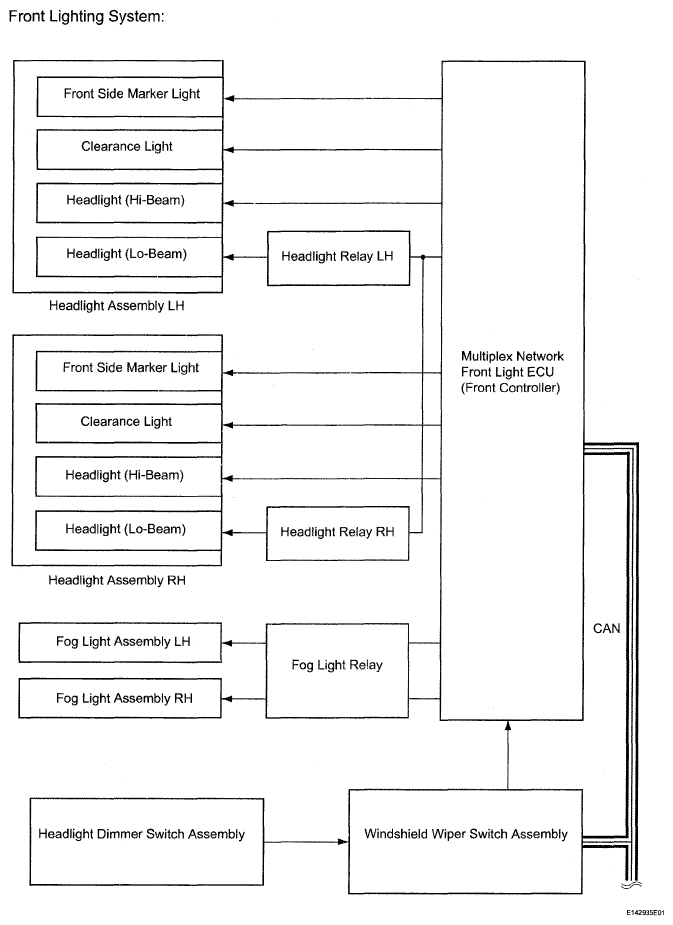

Fig 5: Front Lighting System - System Diagram (5 Of 6)
G04944603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

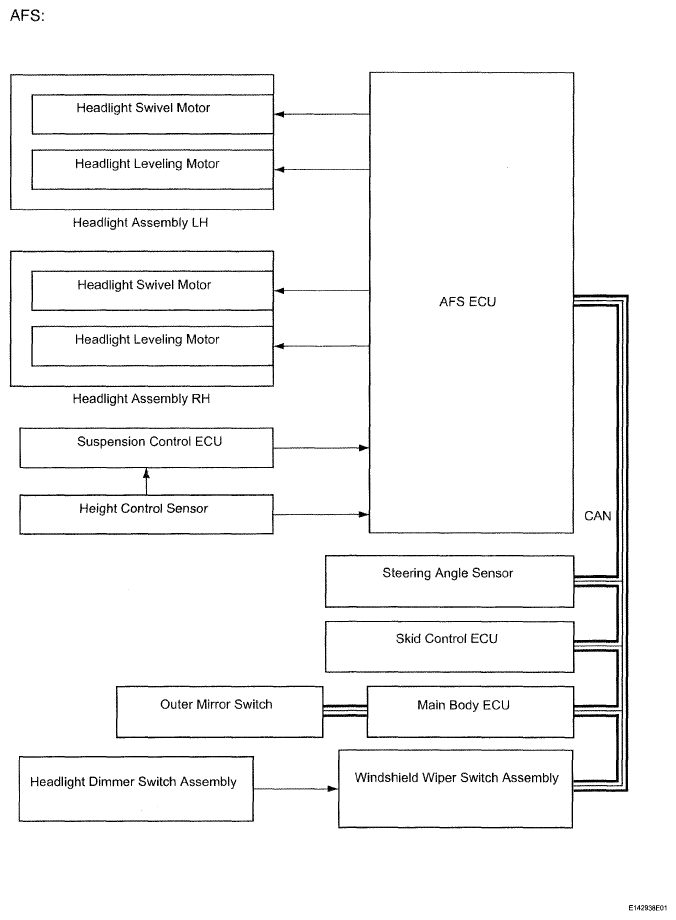

Fig 6: Front Lighting System - System Diagram (6 Of 6)
G04944604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Rear Lighting System - System Diagram (1 Of 2)
G04944605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

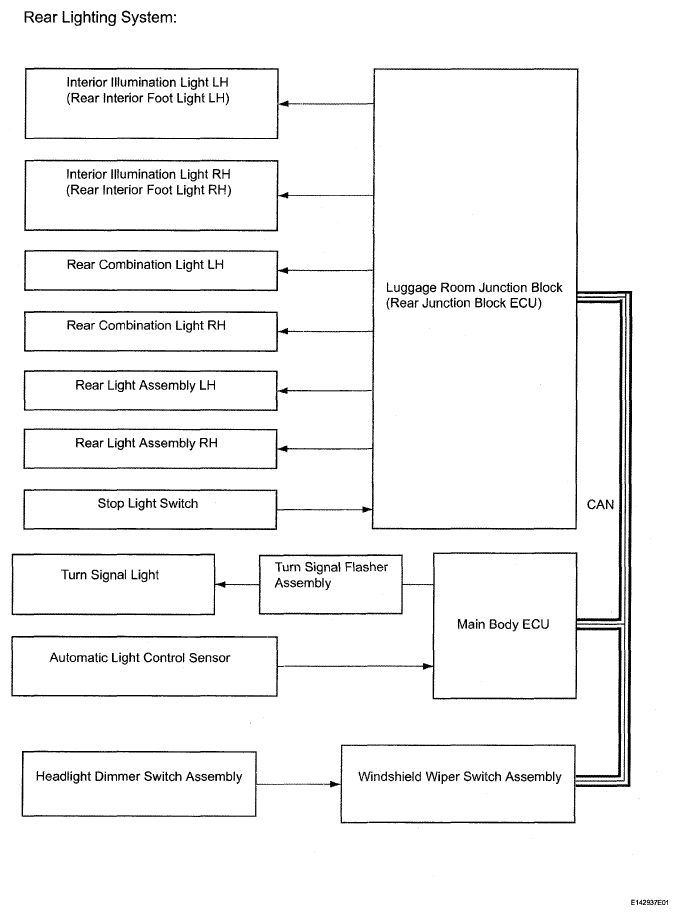

Fig 8: Rear Lighting System - System Diagram (2 Of 2)
G04944606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
