Rear Combination Light Assembly: Components

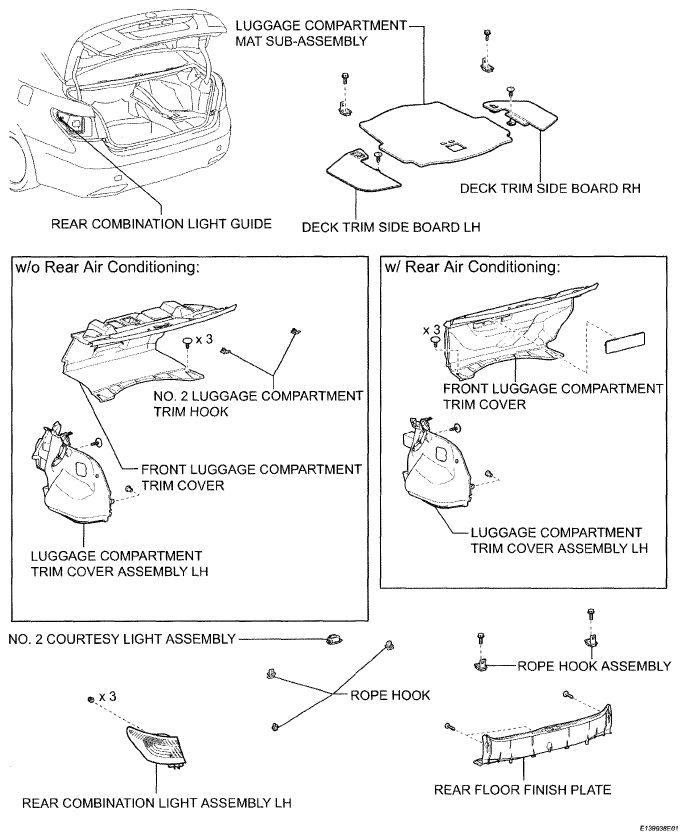

Fig 1: Identifying Rear Combination Light Assembly Components (1 Of 4)
G04944861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Rear Combination Light Assembly Components (2 Of 4)
G04944862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

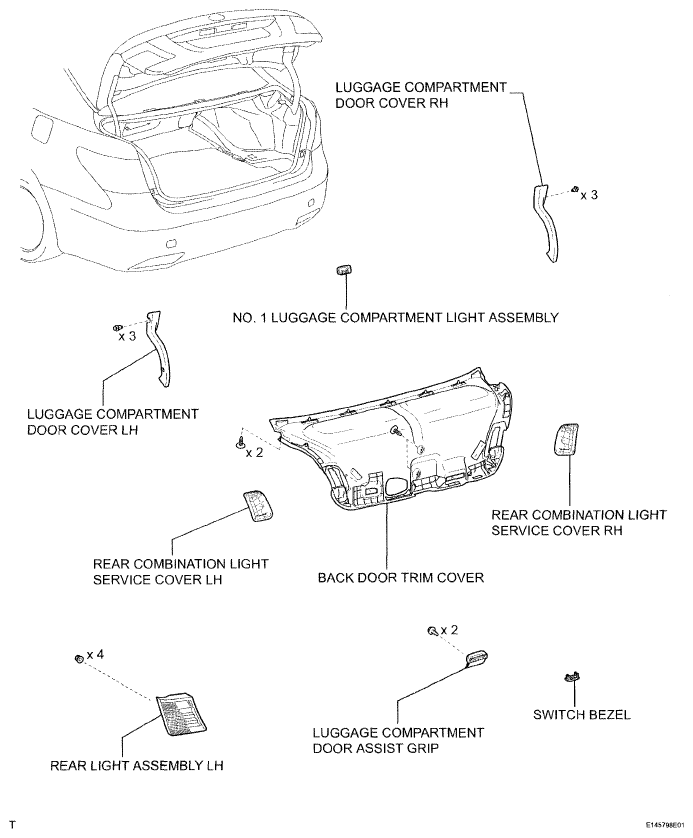

Fig 3: Identifying Rear Combination Light Assembly Components (3 Of 4)
G04944863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Rear Combination Light Assembly Components (4 Of 4)
G04944864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
