Inspection Procedure

1. Enter the diagnostic mode.
2. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
3. Identify the component shown by the sub-code.

   HINT:

   • "110 (multi-display)" is the component shown by the sub-code in the example shown in the illustration.
   Fig 1: Identifying Screen Display - LAN Monitor
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • The sub-code will be indicated by its physical address.
   • For the component list, refer to "DIAGNOSIS DISPLAY DETAILED DESCRIPTION " .

1. Inspect the power source circuit of the component shown by the sub-code.

   If the power source circuit is operating normally, proceed to the next step.

   Component table:

   COMPONENT TABLE



   Component	Proceed to
   Radio receiver (190)	RADIO RECEIVER POWER SOURCE CIRCUIT
   Stereo component amplifier (440)	STEREO COMPONENT AMPLIFIER POWER SOURCE CIRCUIT
   Satellite radio tuner (1F1)	SATELLITE RADIO TUNER POWER SOURCE CIRCUIT
   Clock (1D6)	CLOCK POWER SOURCE CIRCUIT
   Disc player (1A0)	DISC PLAYER CONTROLLER POWER SOURCE CIRCUIT
   Parking assist ECU (280)	ECU POWER SOURCE CIRCUIT
   Display and navigation assembly (118)	DISPLAY AND NAVIGATION ASSEMBLY POWER SOURCE CIRCUIT
   Rear power seat module switch (1C0)	REAR POWER SEAT MODULE SWITCH POWER SOURCE CIRCUIT

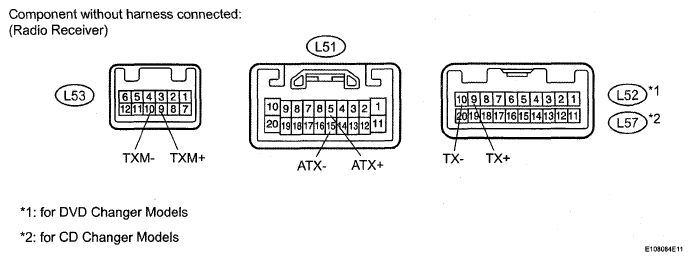

Fig 2: Identifying Radio Receiver Assembly Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the L53, L51, L52 or L57 receiver connectors.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TERMINALS RESISTANCE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   L53-9(TXM+) - L53-10 (TXM-)	Always	60 to 80 Ω
   L51-5(ATX+) - L51-15 (ATX-)	Always	60 to 80 Ω
   L52-9 (TX+) - L52-10 (TX-)*1	Always	60 to 80 Ω
   L57-9(TX+) - L57-10 (TX-)*2	Always	60 to 80 Ω
   HINT: *1: for DVD Changer Models *2: for CD Changer Models

NG: REPLACE RADIO RECEIVER ASSEMBLY  (See REMOVAL )

OK: GO TO NEXT STEP

HINT:

• Start the check from the circuit that is near the component shown by the sub-code first.
• For details of the connectors, refer to "TERMINALS OF ECU " .

1. Referring to the AVC-LAN wiring diagram below, check the AVC-LAN circuit between the rear power seat module switch and the component shown by the subcode.
   1. Disconnect all connectors between the rear power seat module switch and the component shown by sub-code.
   2. Check for an open or short in the AVC-LAN circuit between the rear power seat module switch and the component shown by the sub-code.

      OK: There is no open or short circuit.

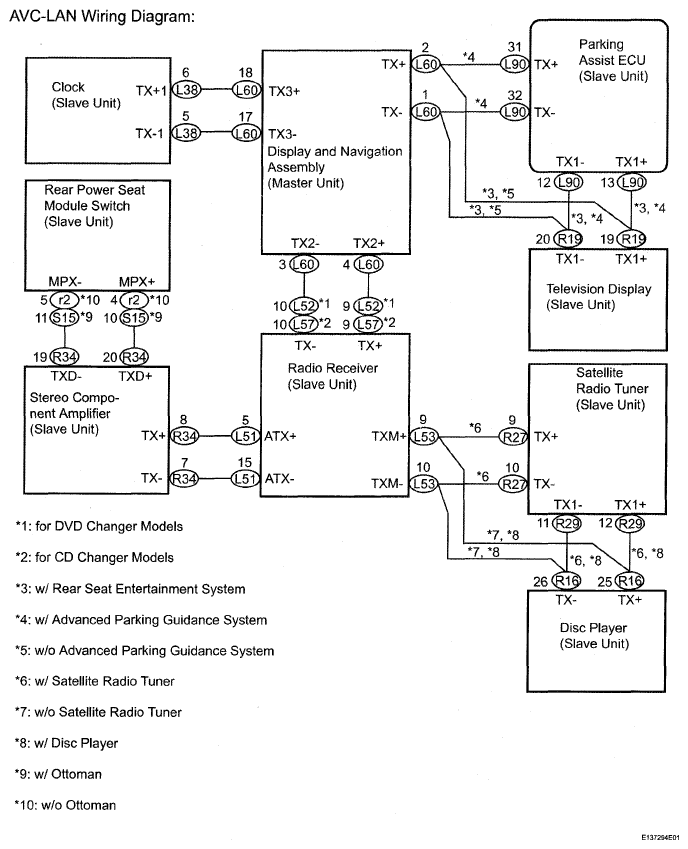

      Fig 3: Identifying AVC-LAN Wiring Diagram

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

1. Replace the component shown by the sub-code with a normal one and check if the same problem occurs again.

   OK: Same problem does not occur.

   Result

   RESULT REFERENCE



   Result	Proceed to
   OK	A
   NG (for Power Seat)	B
   NG (for Ottoman)	C
   NG (for Fixed Seat Type)	D

B: REPLACE REAR POWER SEAT MODULE SWITCH ASSEMBLY  (See REMOVAL )

C: REPLACE REAR POWER SEAT MODULE SWITCH ASSEMBLY  (See REMOVAL )

D: REPLACE REAR POWER SEAT MODULE SWITCH ASSEMBLY  (See REMOVAL )

A: END
