Inspection Procedure

  1. CHECK POWER DOOR LOCK OPERATION
    1. When the master switch assembly's door control switch is operated, check that the locked doors unlock.

      Result

      POWER DOOR LOCK OPERATION

      Result Proceed to
      Door locks operate normally OK
      Door locks do not operate normally NG

    NG: GO TO POWER DOOR LOCK CONTROL SYSTEM (See  POWER DOOR LOCK CONTROL SYSTEM   )

    OK: GO TO NEXT STEP

  2. READ VALUE OF INTELLIGENT TESTER OR TECHSTREAM
    1. Using the intelligent tester or Techstream, read the Data List.
      1. Intelligent tester

        D-Door (Front door ECU LH)

        INTELLIGENT TESTER - D-DOOR (FRONT DOOR ECU LH)

        Tester Display Measurement Item/Display Normal Condition Diagnostic Note
        TRIGGER SW Driver side door outside handle lock switch / ON or OFF ON: Driver side door outside handle lock switch is pushed
        OFF: Driver side door outside handle lock switch is not pushed        		 -
        ENTRY SENSOR Driver side door touch sensor / ON or OFF ON: Driver side door sensor is touched
        OFF: Driver side door sensor is not touched        		 -
      2. Techstream

        Driver Door (Front door ECU LH)

        TECHSTREAM - DRIVER DOOR (FRONT DOOR ECU LH)

        Tester Display Measurement Item/Display Normal Condition Diagnostic Note
        Outside Handle Trigger SW Driver side door outside handle lock switch / ON or OFF ON: Driver side door outside handle lock switch is pushed
        OFF: Driver side door outside handle lock switch is not pushed        		 -
        Entry Sensor Driver side door touch sensor / ON or OFF ON: Driver side door sensor is touched
        OFF: Driver side door sensor is not touched        		 -

        Result

        RESULT REFERENCE

        Result Proceed to
        Display does not change according to manual operation A
        Display changes according to manual operation B

    B: Go to step   9

    A: GO TO NEXT STEP

  3. CHECK FRONT DOOR ECU LH

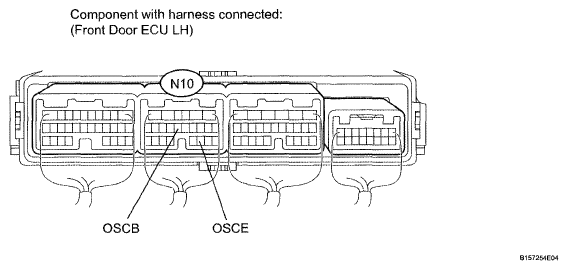

    Fig 1: Identifying N10 Front Door ECU Connector
    G04951645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      FRONT DOOR ECU LH

      Tester Connection Condition Specified Condition
      N10-12(OSCB)-N10-19 (OSCE) Always 11 to 14 V

    NG: REPLACE FRONT DOOR ECU LH  (See INSTALLATION )

    OK: GO TO NEXT STEP

  4. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR ECU LH)

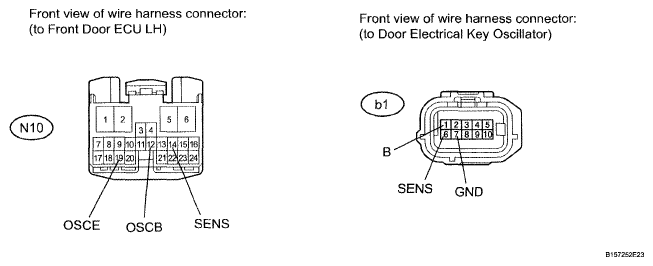

    Fig 2: Identifying b1 Door Electrical Key Oscillator And N10 Front Door ECU Connector Terminal
    G04951646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the b1 oscillator connector.
    2. Disconnect the N10 ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR ECU LH

      Tester Connection Condition Specified Condition
      b1-1(B)-N10-12 (OSCB) Always Below 1 Ω
      b1-6(SENS)-N10-14 (SENS) Always Below 1 Ω
      b1-7(GND)-N10-19 (OSCE) Always Below 1 Ω
      b1-1 (B) - Body ground Always 10 kΩ or higher
      b1-6 (SENS)-Body ground Always 10 kΩ or higher
      b1-7(GND)-Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  5. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR OUTSIDE HANDLE LH)

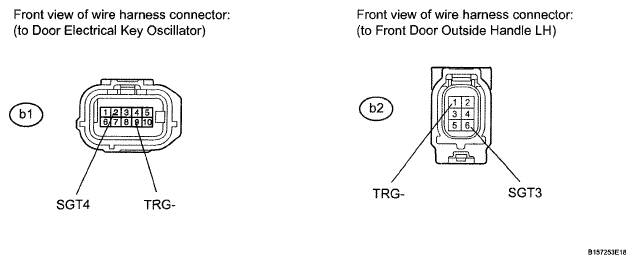

    Fig 3: Identifying b1 Door Electrical Key Oscillator Connector And b2 Front Door Handle Connector
    G04951647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the b1 oscillator connector.
    2. Disconnect the b2 handle connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR OUTSIDE HANDLE LH

      Tester Connection Condition Specified Condition
      b1-2(SGT4)-b2-6 (SGT3) Always Below 1 Ω
      b1-9(TRG-)-b2-1 (TRG-) Always Below 1 Ω
      b1-2(SGT4)-Body ground Always 10 kΩ or higher
      b1-9(TRG-)-Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  6. CHECK HARNESS AND CONNECTOR (FRONT DOOR ECU LH - FRONT DOOR OUTSIDE HANDLE LH)

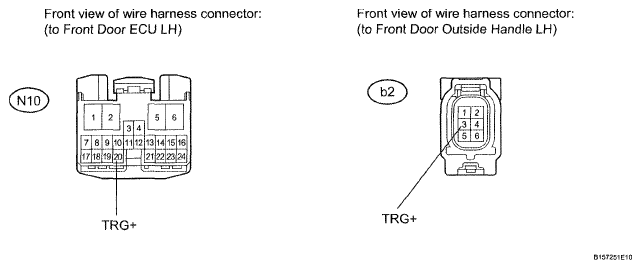

    Fig 4: Identifying N10 Front Door ECU And b2 Front Door Outside Handle Connector Terminal
    G04951648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the N10 ECU connector.
    2. Disconnect the b2 handle connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      FRONT DOOR ECU LH - FRONT DOOR OUTSIDE HANDLE LH

      Tester Connection Condition Specified Condition
      N10-20(TRG+)-b2-3 (TRG+) Always Below 1 Ω
      N10-20(TRG+)-Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  7. CHECK DOOR ELECTRICAL KEY OSCILLATOR (OPERATION)
    1. Replace the door electrical key oscillator with a new one or normally functioning one (see INSTALLATION ).
    2. Check that the entry function operates normally.

      OK: Operates normally

    NG: Go to step 8

    OK: END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

  8. CHECK FRONT DOOR OUTSIDE HANDLE LH (OPERATION)
    1. Replace the front door outside handle LH with a new one or normally functioning one (see REMOVAL  ).
    2. Check that the entry function operates normally.

      OK: Operates normally

    NG: REPLACE FRONT DOOR ECU LH  (See INSTALLATION )

    OK: END (FRONT DOOR OUTSIDE HANDLE LH IS DEFECTIVE)

  9. CHECK WAVE ENVIRONMENT
    1. Bring the electrical key transmitter near the driver door outside handle, and perform a driver door entry lock and unlock operation check.
      Fig 5: Identifying Electrical Key Transmitter Near Driver Door Outside Handle
      G04951624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: If the key is brought within 0.2 m (0.6 ft.) of the door handle, communication is not possible.

      HINT:

      • When the electrical key transmitter is brought near the driver door outside handle, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
      • If the inspection result is that the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

      Result

      WAVE ENVIRONMENT

      Result Proceed to
      Operation check fails A
      Operation check is normal B

    B: AFFECTED BY WAVE INTERFERENCE

    A: GO TO NEXT STEP

  10. KEY DIAGNOSTIC MODE
    1. Diagnostic mode inspection (driver door outside oscillator)
      1. Connect the intelligent tester or Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the tester on.
      4. Enter the following menus:
        1. Intelligent tester - Select: DIAGNOSIS / OBD/ MOBD / SMART ACCESS / ID UTILITY / SMART DAIGMODE / D + OVERHEAD /
        2. Techstream - Select: Body Electrical / Smart Access / Smart Communication Check / Overhead + Driver Side /
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

        HINT:

        If the buzzer sounds, it can be determined that the driver seat outside transmitter is operating normally.

        OK: Wireless door lock buzzer sounds

        Fig 6: Identifying Electrical Key Transmitter Position
        G04951629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Go to step 11

    OK: END (CERTIFICATION ECU IS DEFECTIVE)

  11. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR-CERTIFICATION ECU)

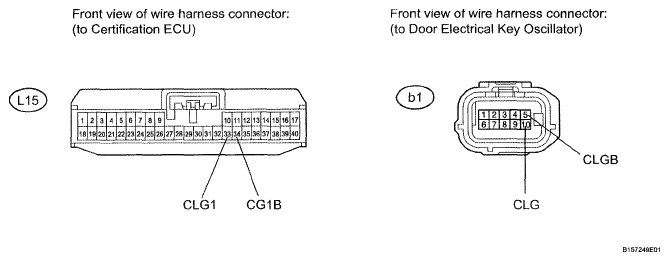

    Fig 7: Identifying b1 Door Electrical Key Oscillator And L15 Certification ECU Connector
    G04951651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L15 ECU connector.
    2. Disconnect the b1 oscillator connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      DOOR ELECTRICAL KEY OSCILLATOR-CERTIFICATION ECU

      Tester Connection Condition Specified Condition
      L15-34(CG1B)-t>1-5 (CLGB) Always Below 1 Ω
      L15-33(CLG1)-b1-10 (CLG) Always Below 1 Ω
      L15-34(CG1B)-Body ground Always 10 kΩ or higher
      L15-33(CLG1)-Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  12. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR ECU LH)

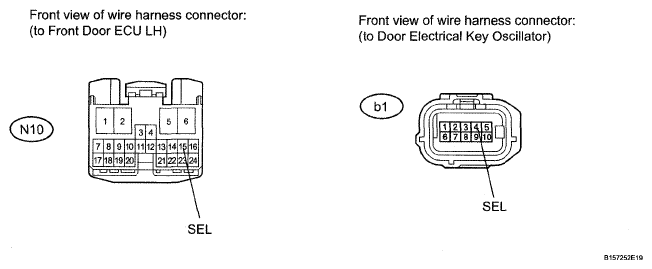

    Fig 8: Identifying b1 Door Electrical Key Oscillator - N10 Front Door ECU Connector Terminal
    G04951652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the N10 ECU connector.
    2. Disconnect the b1 oscillator connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR ECU LH

      Tester Connection Condition Specified Condition
      N10-15(SEL)-b1-4 (SEL) Always Below 1 Ω
      N10-15 (SEL)-Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  13. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR OUTSIDE HANDLE LH)

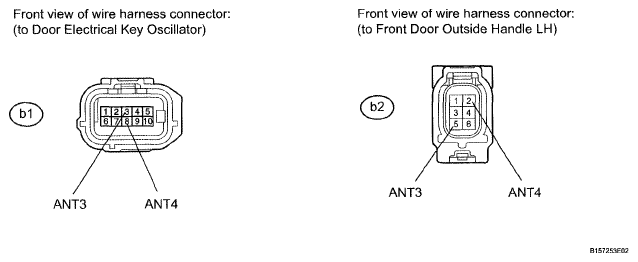

    Fig 9: Identifying B1 Door Electrical Key Oscillator - B2 Front Door Outside Handle Connector Terminal
    G04951653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the b1 oscillator connector.
    2. Disconnect the b2 handle connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR OUTSIDE HANDLE LH

      Tester Connection Condition Specified Condition
      b1-3(ANT3)-b2-5 (ANT3) Always Below 1 Ω
      b1-8(ANT4)-b2-2 (ANT4) Always Below 1 Ω
      b1-3(ANT3)-Body ground Always 10 kΩ or higher
      b1-8(ANT4)-Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  14. CHECK DOOR ELECTRICAL KEY OSCILLATOR (OPERATION)
    1. Replace the door electrical key oscillator with a new one or normally functioning one (see INSTALLATION ).
    2. Check that the entry function operates normally.

      OK: Operates normally

    NG: Go to step 15

    OK: END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

  15. CHECK FRONT DOOR OUTSIDE HANDLE LH (OPERATION)
    1. Replace the front door outside handle LH with a new one or normally functioning one (see REMOVAL  ).
    2. Check that the entry function operates normally.

      OK: Operates normally

    NG: Go to step 16

    OK: END (FRONT DOOR OUTSIDE HANDLE LH IS DEFECTIVE)

  16. CHECK FRONT DOOR ECU LH (OPERATION)
    1. Replace the front door ECU LH with a new one or normally functioning one (see INSTALLATION ).
    2. Check that the entry function operates normally.

      OK: Operates normally

    NG: REPLACE CERTIFICATION ECU

    OK: END (FRONT DOOR ECU LH IS DEFECTIVE)
