Manual Mode Switch

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals.

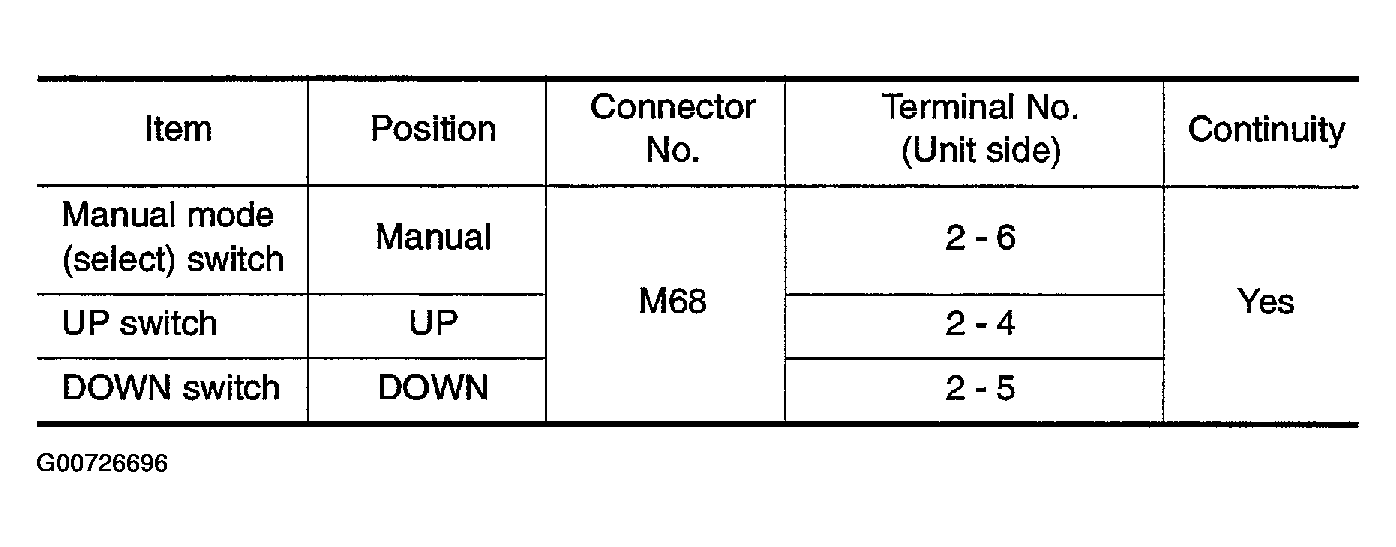

Fig 1: Continuity Table
G00726696Courtesy of NISSAN MOTOR CO., U.S.A.

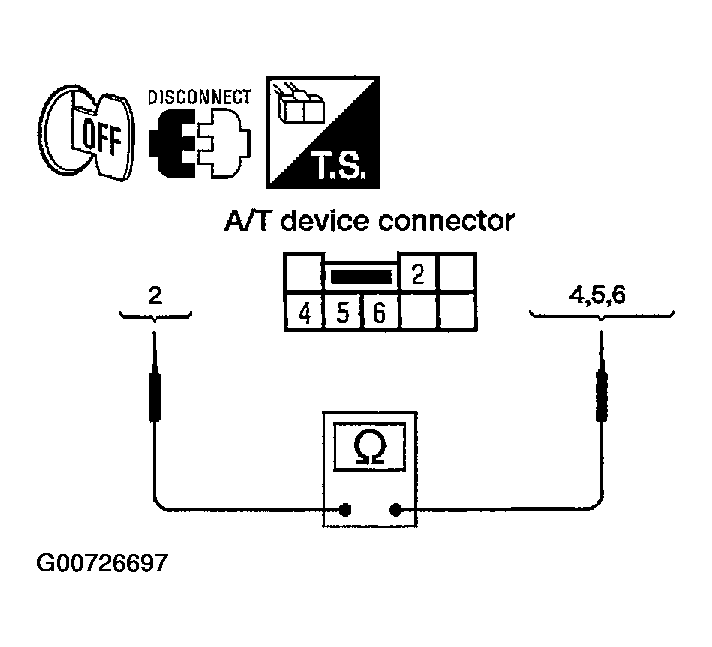

Fig 2: Checking Continuity
G00726697Courtesy of NISSAN MOTOR CO., U.S.A.
