Confirmation/Adjustment Mode

1. Start the diagnosis function and select "Confirmation/Adjustment". The confirmation/adjustment mode indicates where each item can be checked or adjusted.
2. Select each item on the "Confirmation/Adjustment" mode screen to display the relevant trouble diagnosis screen. Press the "BACK" button or touch "BACK" on the touch screen to return to the initial Confirmation/Adjustment Mode screen.

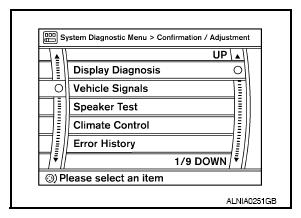

Fig 1: Display - Confirmation/Adjustment Mode Screen

Courtesy of NISSAN NORTH AMERICA, INC.

Display Diagnosis

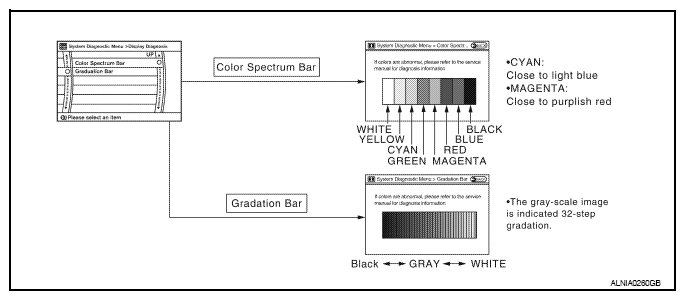

Fig 2: Display - Diagnosis Screen

Courtesy of NISSAN NORTH AMERICA, INC.

Vehicle Signals

A comparison check can be made of each actual vehicle signal and the signals recognized by the system.

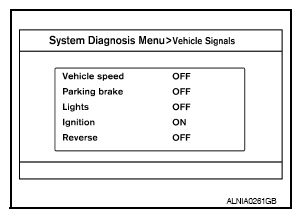

Fig 3: Display - Vehicle Signals Screen

Courtesy of NISSAN NORTH AMERICA, INC.

Speaker Test

Select "Speaker Test" to display the speaker diagnosis screen. Press "Start" to generate a test tone in speakers. Touch "End" to stop the test tones.

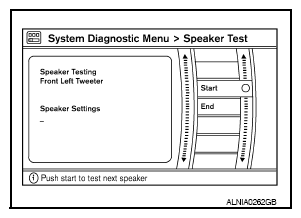

Fig 4: Display - Speaker Test Screen

Courtesy of NISSAN NORTH AMERICA, INC.

Error History

The self-diagnosis results are judged depending on whether any error occurs from when "Self-diagnosis" is selected until the self-diagnosis results are displayed.

However, the diagnosis results are judged normal if an error has occurred before the ignition SW is turned ON and then no error has occurred until the self-diagnosis start. Check the "Error History" to detect any error that may have occurred before the self-diagnosis start because of this situation.

Count up method A

• The counter resets to 0 if an error occurs when IGN switch is turned ON. The counter increases by 1 if the condition is normal at a next IGN ON cycle.

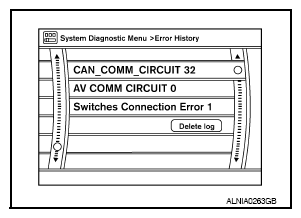

  Fig 5: Display - Error History Screen

  Courtesy of NISSAN NORTH AMERICA, INC.
• The counter upper limit is 39. Any counts exceeding 39 are ignored. The counter can be reset (no error-record display) with the "Delete log" switch or CONSULT.

Count up method B

• The counter increases by 1 if an error occurs when IGN switch is ON. The counter will not decrease even if the condition is normal at the next IGN ON cycle.
• The counter upper limit is 50. Any counts exceeding 50 are ignored. The counter can be reset (no error-record display) with the "Delete log" switch or CONSULT.

  Display method of occurrence frequency	Error history display item
  Count up method A	CAN communication line, control unit (CAN), AV communication line, control unit (AV communication)
  Count up method B	Other than above

Vehicle CAN Diagnosis

• CAN communication status and error counter is displayed.
• The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
• The error counter is erased if reset.

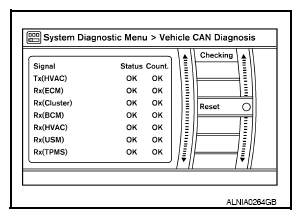

Fig 6: Display - Vehicle CAN Diagnosis Screen

Courtesy of NISSAN NORTH AMERICA, INC.

AV COMM Diagnosis

• AV communication status and error counter is displayed.
• The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
• The error counter is erased if reset.

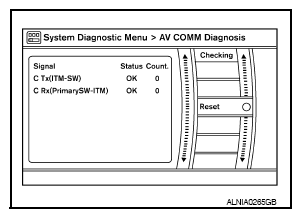

  Fig 7: Display - AV COMM Diagnosis Screen

  Courtesy of NISSAN NORTH AMERICA, INC.

  Delete Unit Connection Log

  Deletes any unit connection records and error records from the AV control unit memory. (Clear the records of the unit that has been removed)

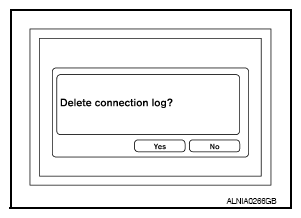

  Fig 8: Display - Delete Connection Log Confirmation Message

  Courtesy of NISSAN NORTH AMERICA, INC.

  Inititialize Settings

  Initializes the AV control unit memory.

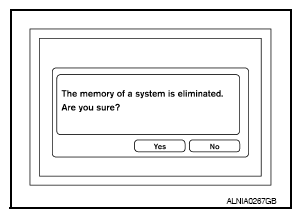

  Fig 9: Display - Confirmation Message For Memory Of System Eliminated
