Counter System Chart

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Items

Fuel Injection System

Misfire

Other

MIL (turns OFF)

3 (pattern B)

DTC, Freeze Frame Data (no display)

80 (pattern C)

40 (pattern A)

1st Trip DTC (clear)

1 (pattern C), ⁽¹⁾

1 (pattern B)

1st Trip Freeze Frame Data (clear)

⁽¹⁾, ⁽²⁾

1 (pattern B)

For details about patterns B and C under "Fuel Injection System" and "Misfire", see "EXPLANATION FOR DRIVING PATTERNS FOR "MISFIRE < EXHAUST QUALITY DETERIORATION>", "FUEL INJECTION SYSTEM".

For details about patterns A and B under Other, see "EXPLANATION FOR DRIVING PATTERNS FOR "MISFIRE < EXHAUST QUALITY DETERIORATION>", "FUEL INJECTION SYSTEM".

⁽¹⁾ Clear timing is at the moment OK is detected.
⁽²⁾ Clear timing is when the same malfunction is detected in the 2nd trip.

Relationship Between MIL, DTC, 1st Trip DTC and Driving Patterns for "Misfire < Exhaust Quality Deterioration>", "Fuel Injection System"

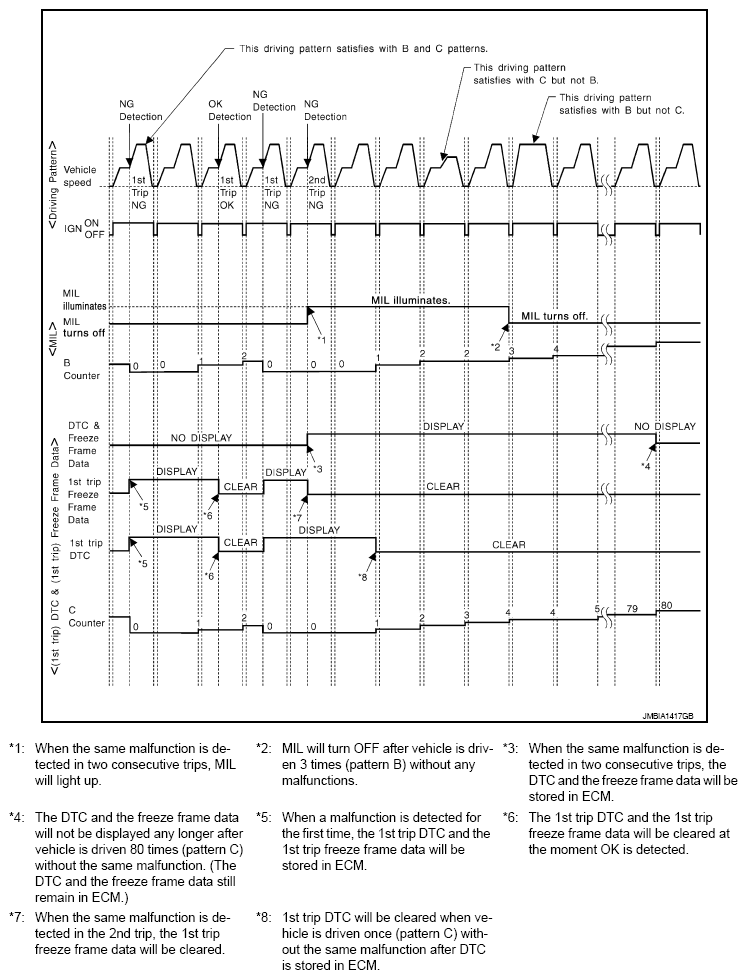

Fig 1: Vehicle Driving Pattern (Misfire, B And C Patterns)

Courtesy of NISSAN NORTH AMERICA, INC.

Explanation for Driving Patterns for "Misfire < Exhaust Quality Deterioration>", "Fuel Injection System"

Driving Pattern B

Refer to "DIAGNOSIS DESCRIPTION: DRIVING PATTERN ".

Driving Pattern C

Refer to "DIAGNOSIS DESCRIPTION: DRIVING PATTERN ".

Example:

If the stored freeze frame data is as per the following:

Engine speed: 850 RPM, Calculated load value: 30%, Engine coolant temperature: 80°C (176°F)

To be satisfied with driving pattern C, the vehicle should run under the following conditions:

Engine speed: 475 - 1, 225 RPM, Calculated load value: 27 - 33%, Engine coolant temperature: more than 70°C (158°F)

Relationship Between MIL, DTC, 1st Trip DTC and Driving Patterns Except For "Misfire < Exhaust Quality Deterioration>", "Fuel Injection System"

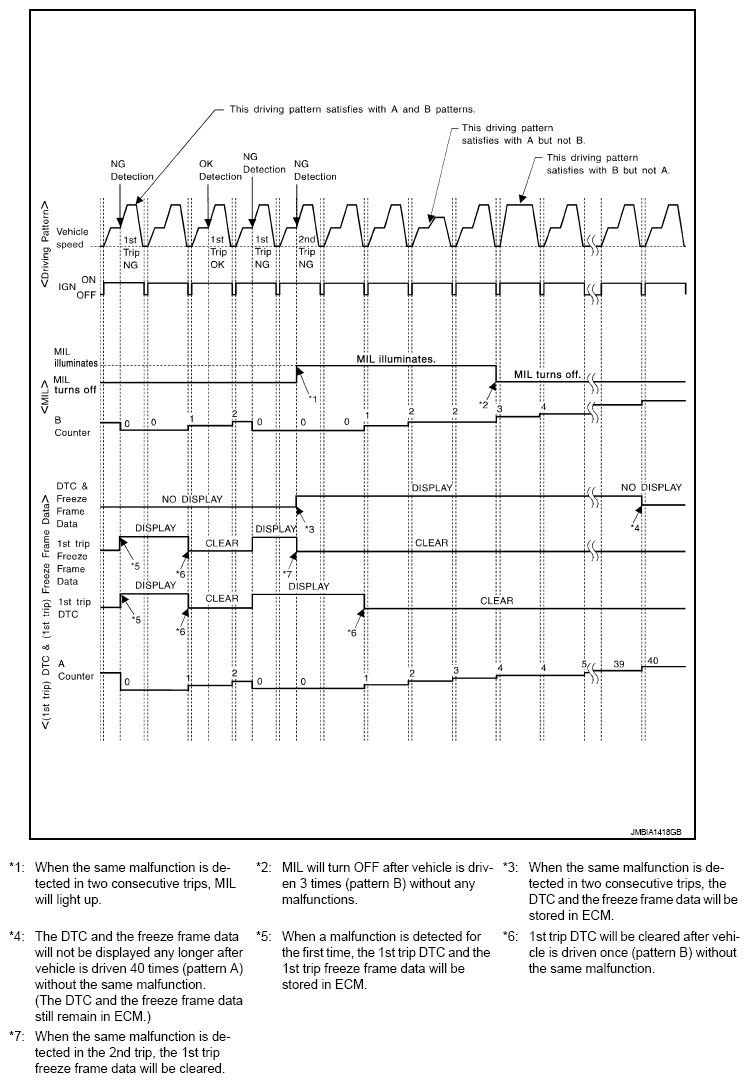

Fig 2: Vehicle Driving Pattern (Misfire, C Pattern)

Courtesy of NISSAN NORTH AMERICA, INC.

Explanation for Driving Patterns Except for "Misfire < Exhaust Quality Deterioration>", "Fuel Injection System"

Driving Pattern A

Refer to "DIAGNOSIS DESCRIPTION: DRIVING PATTERN ".

Driving Pattern B

Refer to "DIAGNOSIS DESCRIPTION: DRIVING PATTERN ".
