Check air passage continuity and operation delay time under the following conditions.

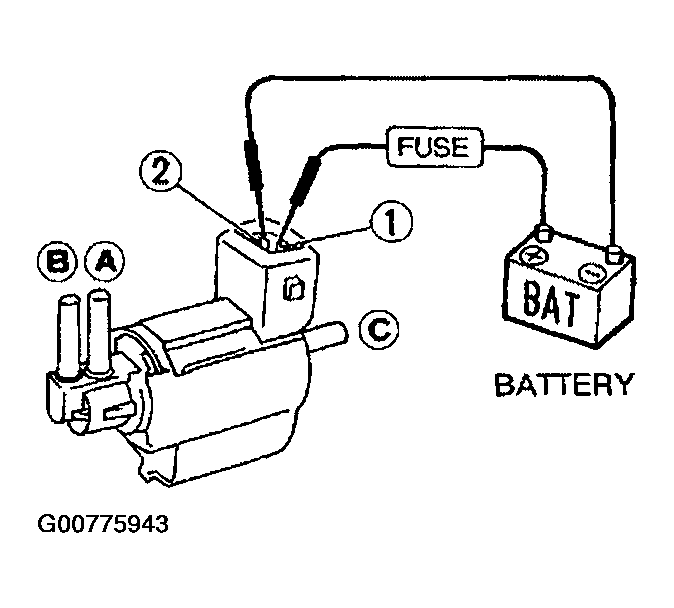

Fig 1: Check Air Passage Continuity

Courtesy of NISSAN MOTOR CO., U.S.A.

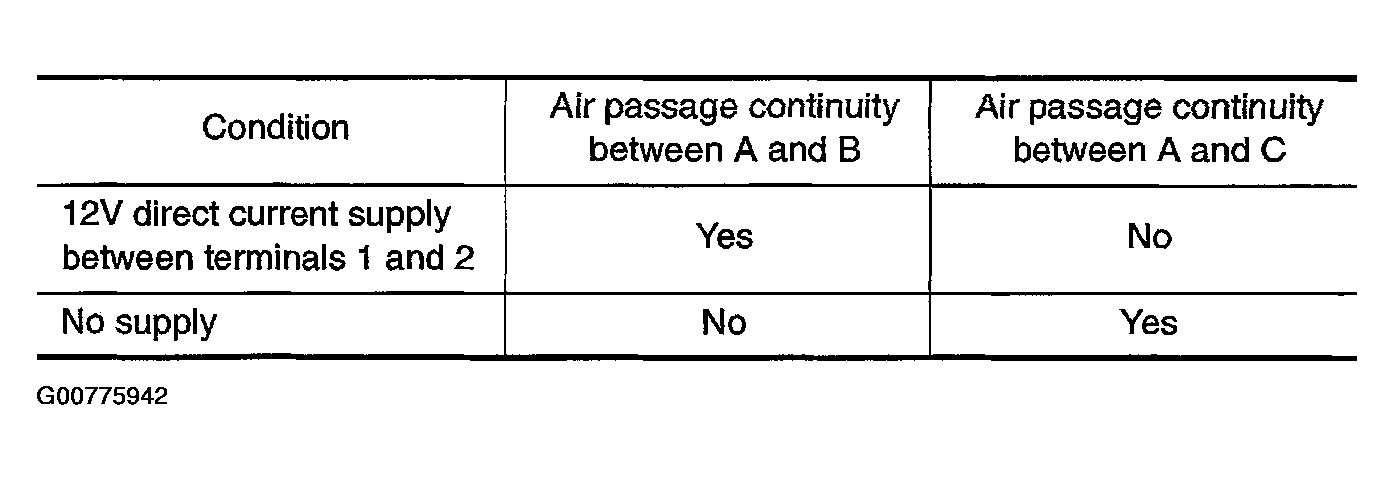

Fig 2: Displaying Conditions For Testing

Courtesy of NISSAN MOTOR CO., U.S.A.

Operation takes less than 1 second.
