Inspection Procedure

1. Disconnect the R23 ECU connector.
2. Disconnect the X6 map light connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   MAYDAY ECU - MAP LIGHT (MAYDAY SWITCH)



   Tester Connection	Condition	Specified Condition
   R23-4(IND1)-X6-4 (IND1)	Always	Below 1 Ω
   R23-4(IND1) or X6-4 (IND1) - Body ground	Always	10 kΩ or higher

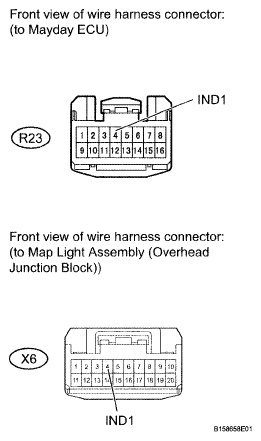

   Fig 1: Identifying R23 ECU Connector And X6 Map Light Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR THEN CLEAR HISTORIC DTC

OK: GO TO NEXT STEP

1. Temporarily replace the map light with a new or normally functioning one for standard body (see REMOVAL ) or long body (see REMOVAL ).
2. Check that the system operates normally.

   OK: Red LED operates normally.

NG: REPLACE MAYDAY ECU TOGETHER WITH MAYDAY BATTERY AND THEN PERFORM REGISTRATION

OK: END (MAP LIGHT (RED LED) IS FAULTY; CLEAR HISTORIC DTC)
