Mayday Ecu: Components

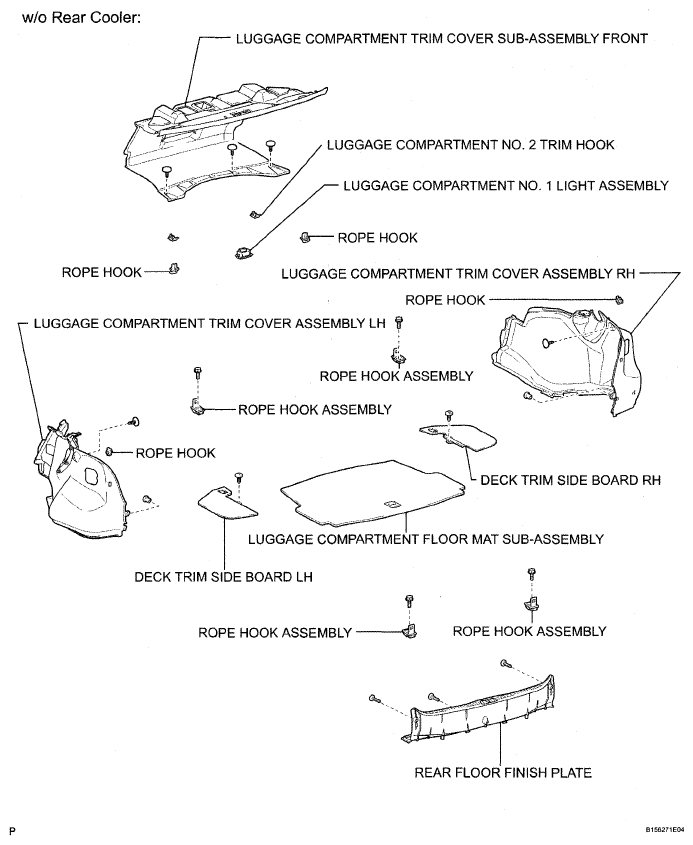

Fig 1: Identifying Mayday ECU Components - W/O Rear Cooler
G04945827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

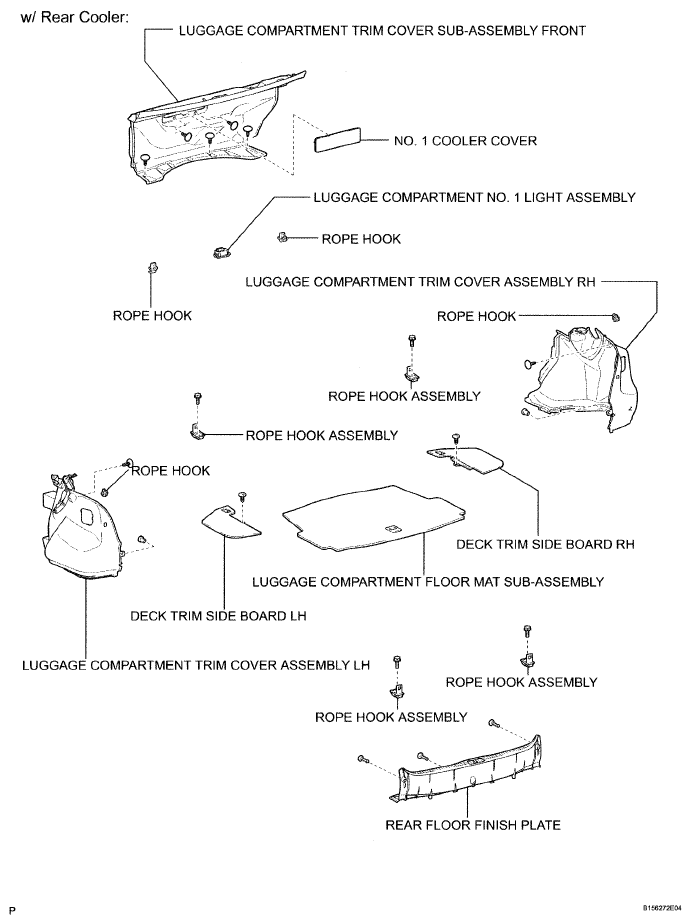

Fig 2: Identifying Mayday ECU Components - W/ Rear Cooler
G04945828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

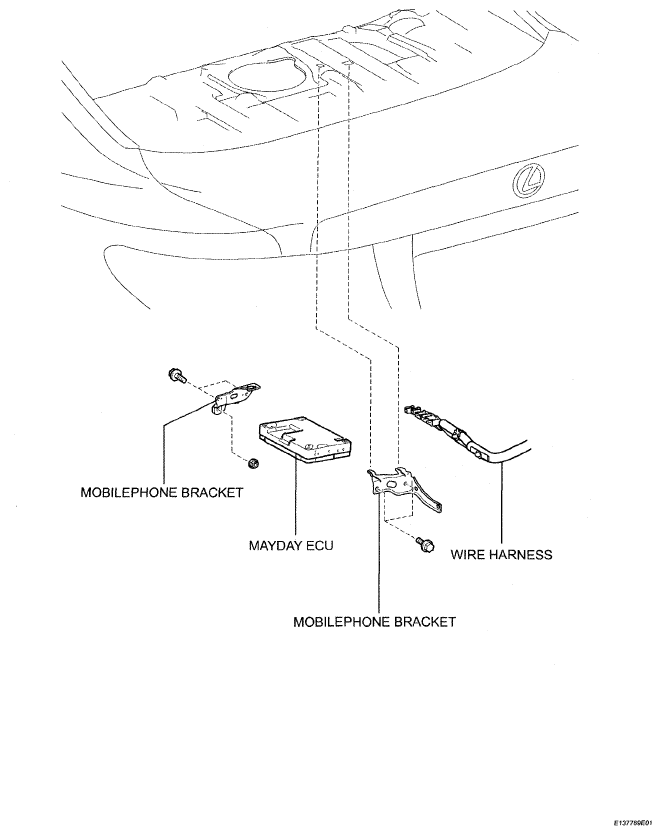

Fig 3: Identifying Mayday ECU Components
G04945829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
