Inspection Procedure

NOTE: When using the intelligent tester (with CAN VIM) or Techstream with the engine switch off to troubleshoot:
Connect the intelligent tester (with CAN VIM) or Techstream to the vehicle, and turn a courtesy switch on and off at 1.5 second intervals until communication between the tester and vehicle begins.

CLEAR DTC
1. Delete the DTC (see DTC CHECK / CLEAR ).

CHECK FOR DTC

Check for DTC (see DTC CHECK / CLEAR ).

Result:

RESULT

Result	Proceed to
DTC U0211, U0246, U1130* and U1131* output occurs	A
DTC U0211, U0246, U1130* or U1131* output occurs	B
No DTC output occurs	C

HINT:

*: w/ Rear Climate Control Seat System

B: GO TO DTC CHART

C: USE SIMULATION METHOD TO CHECK (See HOW TO PROCEED WITH TROUBLESHOOTING )

A: GO TO NEXT STEP

CHECK HARNESS AND CONNECTOR (REAR POWER SEAT MODULE SWITCH POSITION CONTROL ECU LH)

Disconnect the r2*1 or S15*2 module switch connectors.
HINT:

*1: w/o Ottoman

*2: w/ Ottoman
Disconnect the f5 ECU connector.

Measure the resistance and voltage according to the value(s) in the table below.

Standard resistance

w/o Ottoman:

REAR POWER SEAT MODULE SWITCH POSITION CONTROL ECU LH RESISTANCE W/O OTTOMAN

Tester Connection	Condition	Specified Condition
r2-6 (LIN) - f5-7 (LIN)	Always	Below 1 Ω
r2-6 (LIN) or f5-7 (LIN) -Body ground	Always	10 kΩ or higher

w/ Ottoman:

REAR POWER SEAT MODULE SWITCH POSITION CONTROL ECU LH RESISTANCE W/OTTOMAN

Tester Connection	Condition	Specified Condition
S15-3(LIN)-f5-7(LIN)	Always	Below 1 Ω
S15-3 (LIN) or f5-7 (LIN) - Body ground	Always	10 kΩ or higher

Standard voltage

w/o Ottoman:

REAR POWER SEAT MODULE SWITCH POSITION CONTROL ECU LH VOLTAGE W/O OTTOMAN

Tester Connection	Condition	Specified Condition
r2-6 (LIN) or f5-7 (LIN) -Body ground	Always	Below 1 V

w/ Ottoman:

REAR POWER SEAT MODULE SWITCH POSITION CONTROL ECU LH VOLTAGE W/OTTOMAN

Tester Connection	Condition	Specified Condition
S15-3(LIN)or f5-7(LIN) - Body ground	Always	Below 1 V

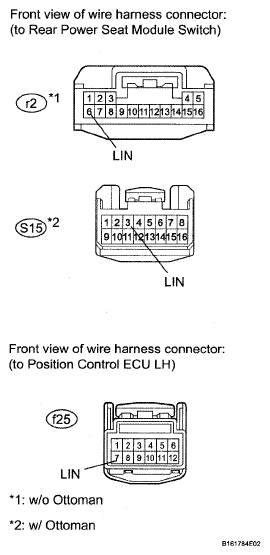

Fig 1: Identifying r2*1 Or s15*2 Module Switch Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPLACE REAR POWER SEAT MODULE SWITCH (See DISASSEMBLY )

NG: GO TO NEXT STEP

CLEAR DTC
1. Reconnect the r2*1 or S15*2 module switch connectors.
  HINT:

  *1: w/o Ottoman

  *2: w/ Ottoman
2. Delete the DTC (see DTC CHECK / CLEAR ).

CHECK FOR DTC

Disconnect the f5 ECU connector.

Recheck for DTC (see DTC CHECK / CLEAR ).

Result:

RESULT

Result	Proceed to
DTC U0211,110246, U1130* and U1131* output occurs	A
DTC U0211 output occurs	B

HINT:

*: w/ Rear Climate Control Seat System

B: REPLACE POSITION CONTROL ECU RH

A: GO TO NEXT STEP

CLEAR DTC
1. Reconnect the f5 ECU connector.
2. Delete the DTC (see DTC CHECK / CLEAR ).

CHECK FOR DTC

Disconnect the f25 ECU connector.

Recheck for DTC (see DTC CHECK / CLEAR ).

Result:

RESULT

Result	Proceed to
DTC U0211 and U0246 output occurs	C
DTC U0211, U0246, U1130* and U1131* output occurs	A
DTC U0246 output occurs	B

HINT:

*: w/ Rear Climate Control Seat System

B: REPLACE POSITION CONTROL ECU LH

C: REPAIR OR REPLACE HARNESS OR CONNECTOR

A: GO TO NEXT STEP

CLEAR DTC
1. Reconnect the f25 ECU connector.
2. Delete the DTC (see DTC CHECK / CLEAR ).

CHECK FOR DTC

Disconnect the f8 ECU connector.

Recheck for DTC (see DTC CHECK / CLEAR ).

Result:

RESULT

Result	Proceed to
DTC U0211, U0246, U1130* and U1131* output occurs	A
DTC U1130* output occurs	B

HINT:

*: w/ Rear Climate Control Seat System

B: REPLACE REAR SEAT CLIMATE CONTROL ECU RH

A: GO TO NEXT STEP

CLEAR DTC
1. Reconnect the f8 ECU connector.
2. Delete the DTC (see DTC CHECK / CLEAR ).

CHECK FOR DTC

Disconnect the f28 ECU connector.

Recheck for DTC (see DTC CHECK / CLEAR ).

Result:

RESULT

Result	Proceed to
DTC U0211, U0246, U1130* and U1131* output occurs	A
DTC U1131* output occurs	B

HINT:

*: w/ Rear Climate Control Seat System

B: REPLACE REAR SEAT CLIMATE CONTROL ECU LH

A: REPAIR OR REPLACE HARNESS OR CONNECTOR
