Rear Side Switch Module LIN Communication Malfunction: Wiring Diagram

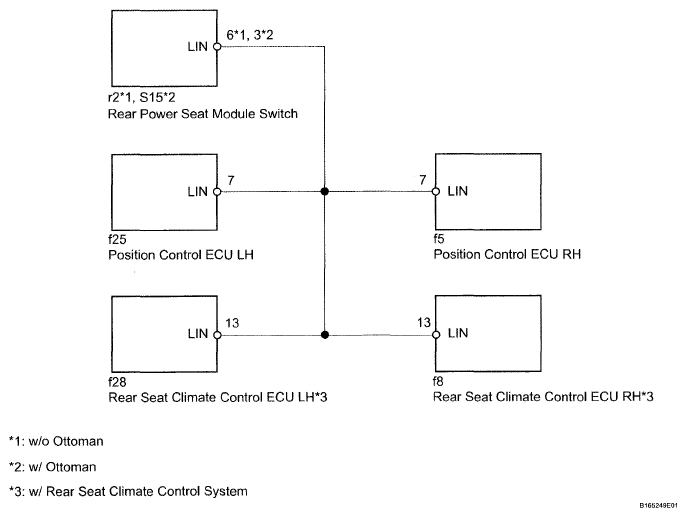

Fig 1: Rear Side Switch Module LIN Communication Malfunction - Wiring Diagram
G04947033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
